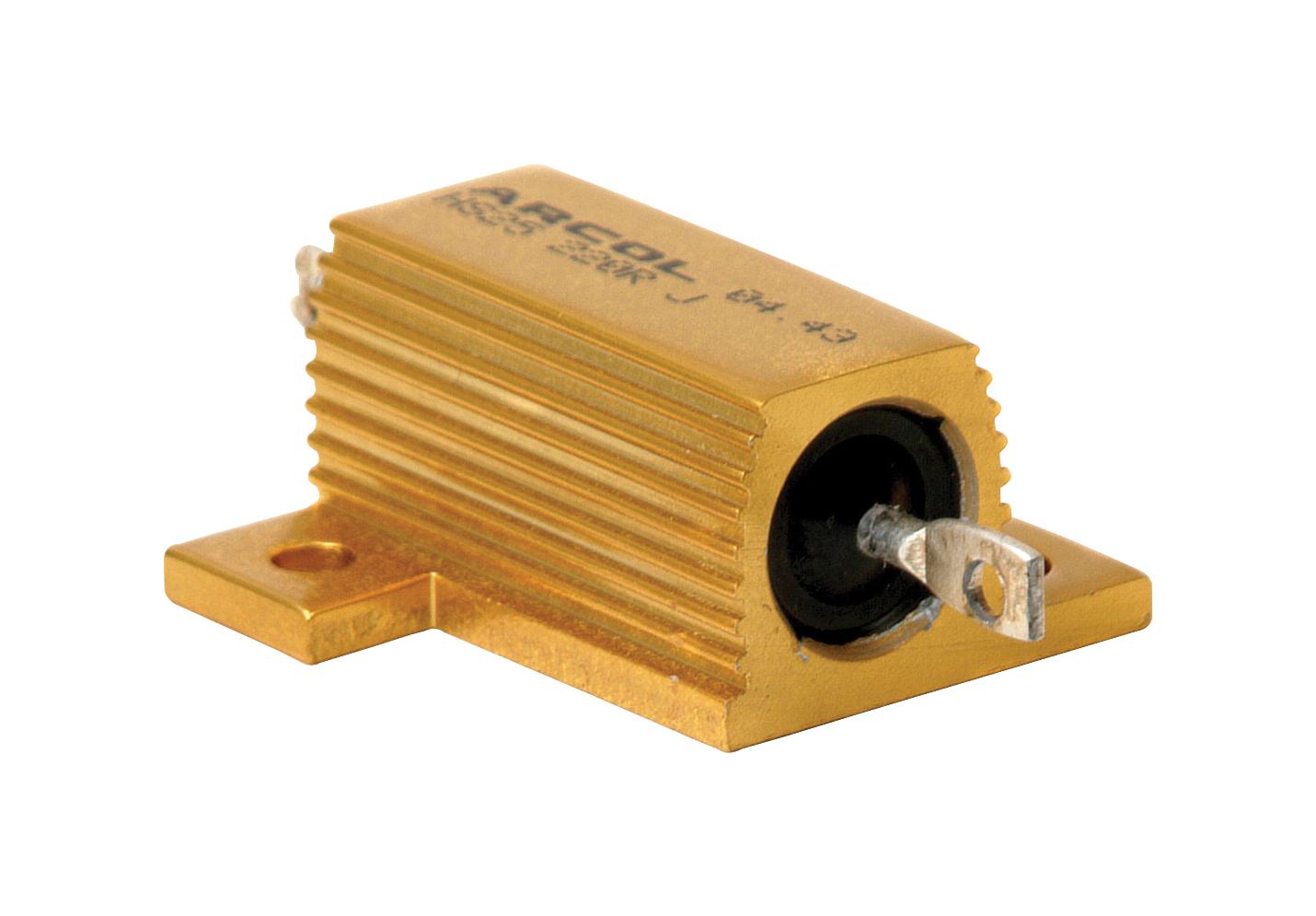

Ohmite HS25R02K High Power Aluminium Resistor
The HS25 R02K aluminium housed resistor is designed for high power applications with direct heatsink mounting, high pulse capabilities, and low inductance. It complies with MIL 18546 and IEC 115 standards, offering precise ohmic values from R005 to 100K, adjustable tolerances, and low temperature coefficients. Its robust construction ensures reliable performance in industrial environments, with heat dissipation managed through proprietary heat sinks and thermal compound. Suitable for power dissipation up to 26W, it performs reliably at high ambient temperatures, making it ideal for industrial and automation systems requiring high pulse capability and thermal stability.
Ohmite HS25R02K High Power Aluminium Resistor Specifications:
- Power Dissipation: 26 W at 25°C, derates linearly to zero at 200°C
- Ohmic Values: R005 to 100K depending on wattage and size
- Tolerance: ±5% (J), ±10% (K), and options for ±1% (F), ±2% (G), ±3% (H)
- Temperature Coefficient: Typically < 1K 100ppm, > 1K 25ppm
- Insulation Resistance (Dry): > 10,000 MΩ
- Surface Temperature Rise: Related to heat dissipation, max 200°C
- Voltage Ratings: Divide standard max working voltage by 1.414 for working volts
- Dimensions: Vary by size; HS25 has dimensions around 28.0 mm x 51.0 mm for length and width
- Mounting: Aluminium heatsink with thermal compound, high pulse capability, RoHS compliant
- Resistance Range: From 5 Ω to 100K Ω depending on size and wattage
- Construction: Wound for high pulse capability, low inductance (NHS series optional)
- Standards: MIL 18546, IEC 115, RoHS compliant
Buy the Arcol R02K – Reliable High Power Aluminium Resistor for Industrial Applications
Secure your high-performance aluminium housed resistor today and elevate your industrial applications. Designed for direct heatsink mounting, it offers excellent thermal management, high pulse capability, and precise resistance values. Perfect for power management, automation, and heavy-duty circuits, this resistor ensures reliable operation even at elevated temperatures. With RoHS compliance and customizable options, purchasing online ensures swift delivery and expert support, making it the ideal choice for engineers looking for durability and efficiency in demanding industrial settings.
Buy Arcol R02K high power aluminium resistor now and experience unmatched thermal stability and pulse performance in industrial environments.
Frequently Asked Questions
Where can I buy Ohmite HS25R02K?
You can click on the BUY or RFQ button to purchase HS25R02K from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS25R02K?
You can download the HS25R02K datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS25R02K?
Ohmite
