Ohmite HS25R05J Aluminium Housed Resistor
High-performance aluminium housed resistors designed for high pulse capability and maximum heat dissipation, suitable for direct heatsink mounting with thermal compound. They comply with MIL 18546 and IEC 115 standards, offering a range of ohmic values from R005 to 100K. These resistors feature high power-to-volume ratio, low inductance options, and various tolerances, including ±1%, ±2%, ±3%, ±5%, and ±10%. Capable of operating at elevated temperatures with proper heatsinking, they are ideal for industrial applications requiring reliable high-power resistance solutions.
Ohmite HS25R05J Aluminium Housed Resistor Specifications:
- Power Dissipation: 25 W at 25°C, derates at higher temperatures, max hot spot temperature 200°C
- Resistance Range: R005 to 100K ohms, depending on wattage size
- Tolerance: Standard ±5%, ±10%; optional ±1%, ±2%, ±3%
- Temperature Coefficient: Typically < 1K 100ppm, > 1K 25ppm
- Insulation Resistance: Minimum 10,000 MΩ (dry)
- Electrical proof voltage: 415 VAC (AC peak)
- Surface Temperature Rise: Specified based on heat sink and power dissipation
- Heat Sink Compatibility: Uses proprietary heatsink compound for optimal thermal transfer
- Physical Dimensions: Varies by size, e.g., HS25 dimensions approximately 28.0mm diameter, length 51.0mm
- Mounting: Direct heatsink mounting with thermal compound, insulation resistance maintained with proper mounting
- Construction: Aluminium housing, wound resistive element, low inductance (NHS variants available)

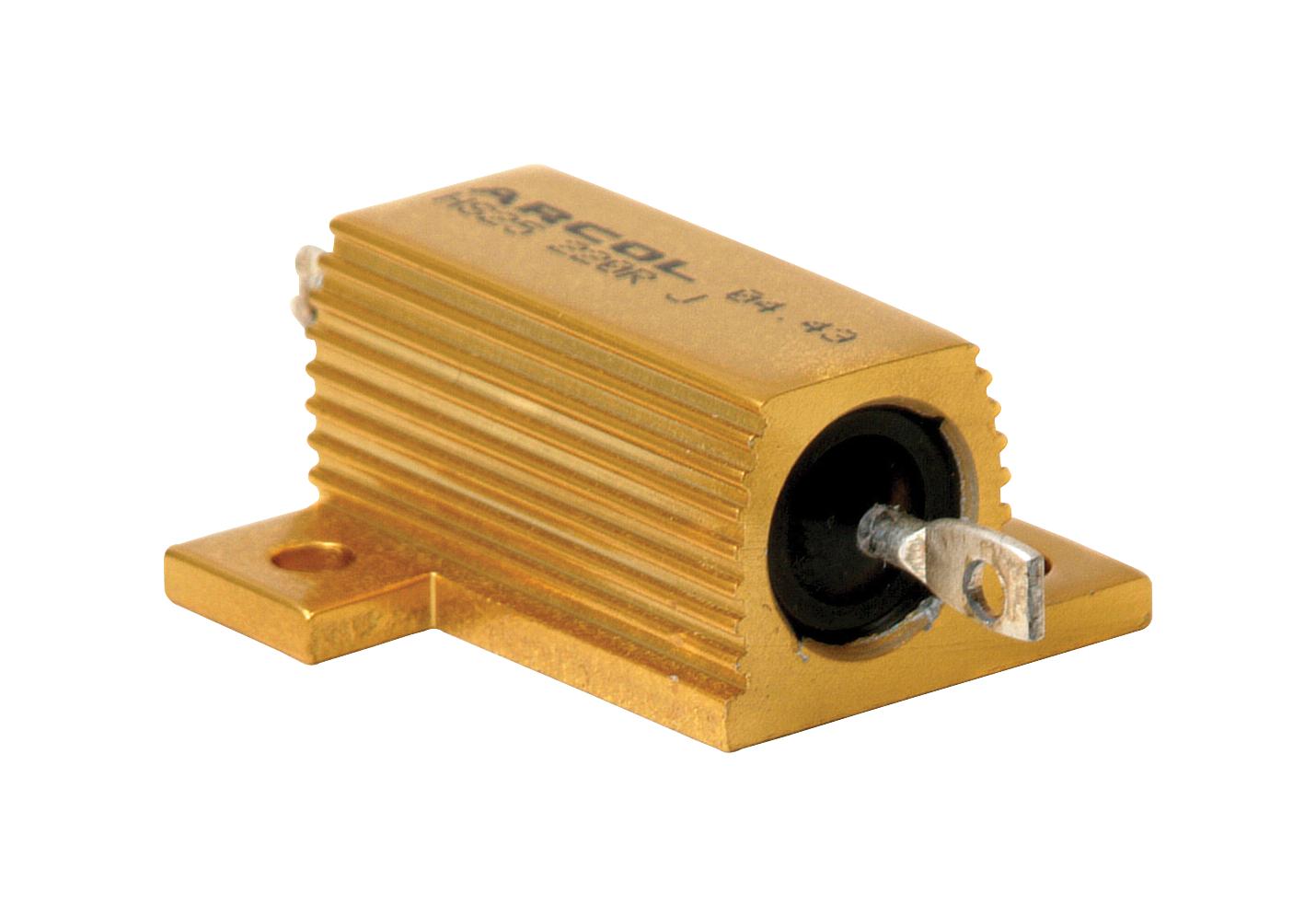

Buy the Buy Arcol Aluminium Housed Resistors Part Number HS25R05J Online
Order the Arcol HS25R05J aluminium housed resistor online today for reliable high pulse performance and efficient thermal management. This resistor features a robust aluminium housing, ensuring excellent heat dissipation and long-term durability. It is suitable for industrial applications requiring high power, precise resistance values, and compliance with international standards like MIL 18546 and IEC 115. Whether for high-voltage environments or intensive pulse applications, this resistor guarantees stability, safety, and optimal thermal performance, making it a vital component for your electronic and manufacturing projects.
Get Arcol HS25R05J aluminium housed resistor today—designed for high pulse capability and long-lasting durability.
Frequently Asked Questions
Where can I buy Ohmite HS25R05J?
You can click on the BUY or RFQ button to purchase HS25R05J from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS25R05J?
You can download the HS25R05J datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS25R05J?
Ohmite
