Ohmite HS753R3J Industrial Power Resistor
The HS Aluminium Housed Resistors are high-performance, MIL 18546 and IEC 115 compliant power resistors designed for direct heatsink mounting with thermal compound. They offer high pulse capability, a wide range of ohmic values from R005 to 100K, and customizable designs. Manufactured with low inductance, these resistors are suitable for high-temperature environments up to 200°C with proper heat sinking. Ideal for industrial applications requiring reliable, high-power dissipation and thermal management, these resistors provide robust insulation resistance and precise tolerance options, ensuring durability and optimal performance in demanding settings.
Ohmite HS753R3J Industrial Power Resistor Specifications:
- Power Rating: Ranging from 4W to 600W depending on size
- Maximum Surface Temperature: 200°C
- Ohmic Values: R005 to 100K ohms
- Tolerance: ±5% (J), ±10% (K), options for ±1%, ±2%, ±3%
- Insulation Resistance: Minimum 10,000 megaohms
- Temperature Coefficient: Typically <1K 100ppm, std >1K 25ppm
- Heat Dissipation: Linearly derates at high ambient temperatures
- Voltage Rating: Depending on size, up to 4500V
- Physical Dimensions: Vary by size, e.g., HS10 max dimensions approximately 16.5mm x 30mm
- Material: Aluminium housing with thermal compound for heat sinking
- Design: Designed for direct mounting with optional low inductance NH series

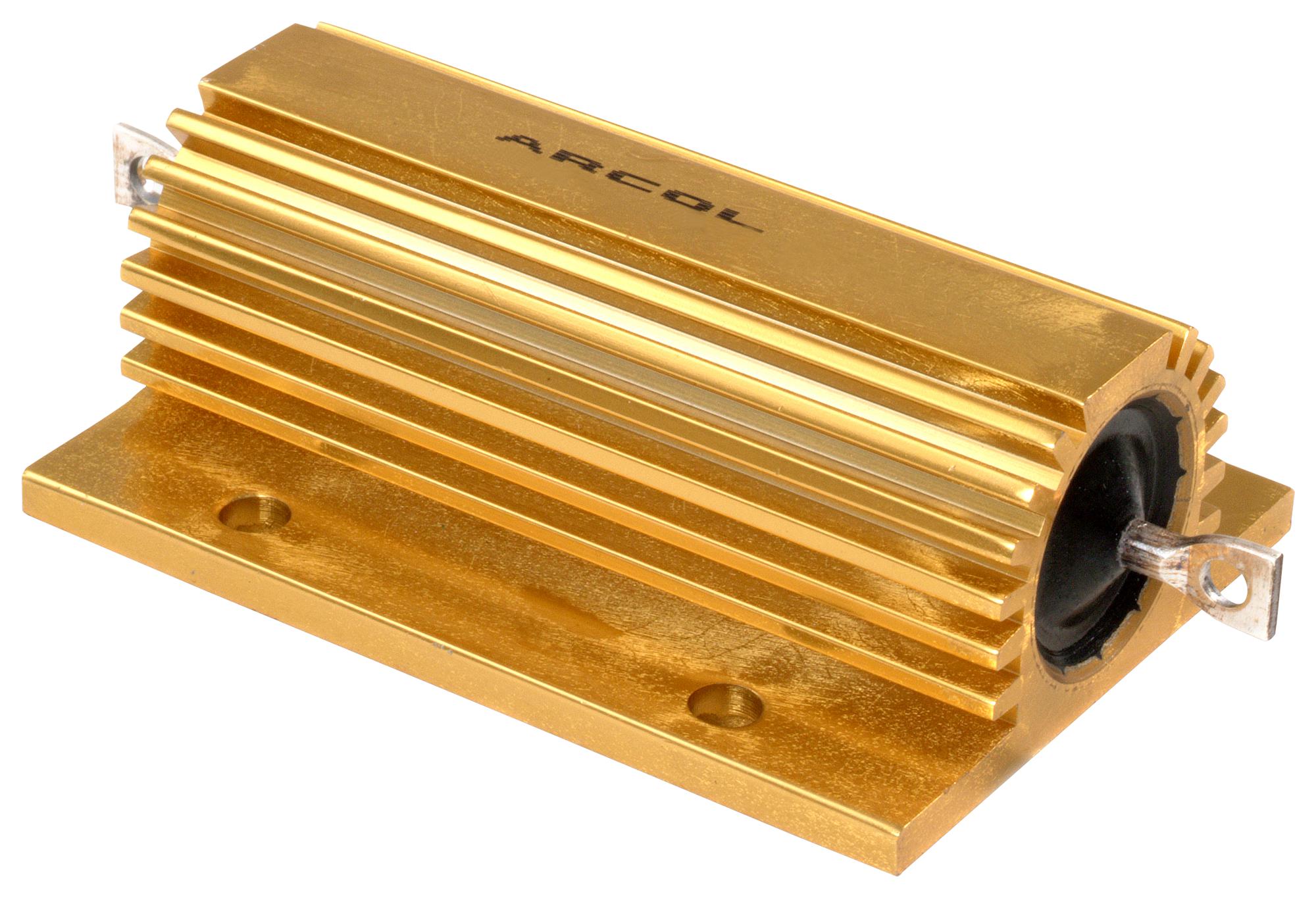

Buy the Buy Arcol Aluminium Housed Resistors Part Number HS753R3J Online
Enhance your industrial applications with the Arcol HS753R3J aluminium housed power resistor. Engineered for high pulse capability, high temperature environments up to 200°C, and direct heatsink mounting, this resistor ensures dependability and optimal thermal performance. Its wide ohmic range, customizable options, and adherence to MIL and IEC standards make it ideal for demanding settings. Easy to install and durable, it provides precise resistance, insulation resistance above 10,000 megaohms, and efficient heat dissipation. Order online today for unmatched reliability.
Buy Arcol HS753R3J aluminium housed resistors now and experience reliable high-power dissipation with superior thermal management.
Frequently Asked Questions
Where can I buy Ohmite HS753R3J?
You can click on the BUY or RFQ button to purchase HS753R3J from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HS753R3J?
You can download the HS753R3J datasheet or visit the Ohmite website for support.
Who is the manufacturer of HS753R3J?
Ohmite
