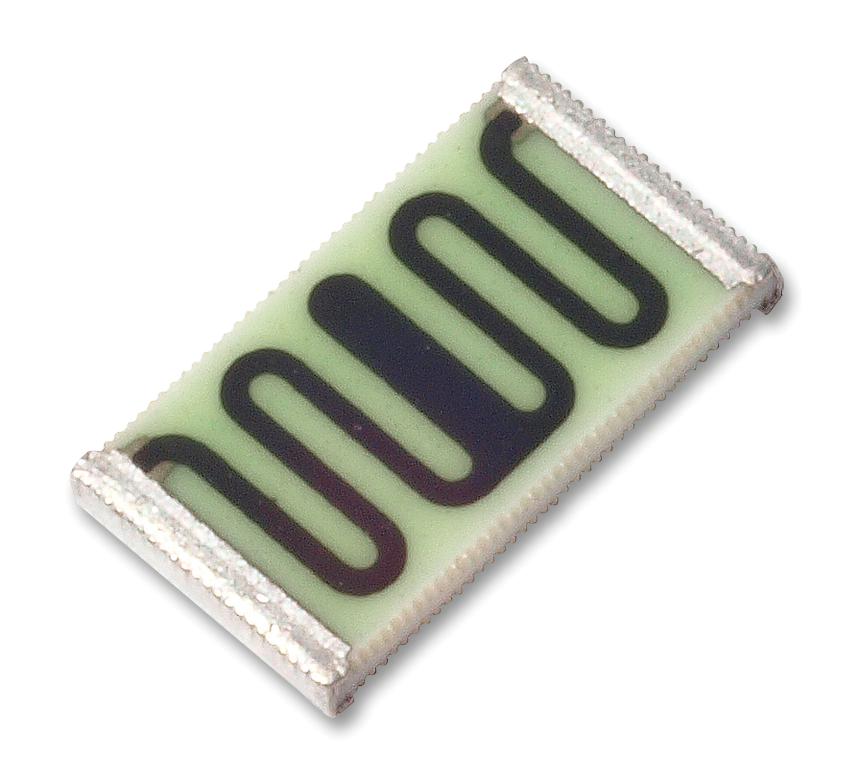

Ohmite HVC0402E5006KET High Voltage Resistor
The high voltage wraparound chip resistor series offers precision thick film technology resistors suitable for applications requiring low temperature and voltage dependency. Available in multiple sizes from 0402 to 4020, these resistors support voltages up to 6000V and power ratings up to 1500 mW. Designed with nickel-barrier/matte tin contact areas and 100% electroplated matte Sn finish, they provide excellent long-term stability, high dielectric strength, and reliable performance in high vacuum environments and demanding electrical circuits. Suitable for high-reliability electronics requiring precise resistance and high voltage handling.
Ohmite HVC0402E5006KET High Voltage Resistor Specifications:
- Series: HVC0402-- to HVC4020--
- Sizes: 0402, 0603, 0805, 1206, 2512, 4020
- Power Ratings: 50mW to 1500mW
- Operating Voltage: 30V to 6000V
- Resistance Range: 100k-100GΩ, over 100M-10GΩ, with specific models supporting up to 1TΩ
- Tolerance: 0.5-10%
- Operating Temperature: -55°C to +155°C
- Max. Soldering Temperature: 260°C for 10s
- Long Term Stability: <1G, <2G, <2G over specified conditions
- Termination Finish: 100% electroplated matte Sn with porosity-free Ni barrier
- Physical Dimensions: 0402 (1.04x0.5mm), 0603 (1.5x0.8mm), 0805, 1206, 2512, 4020
- Thickness of Finish: 5 microns
- Peak Process Temperature: 260°C for 10 seconds
- Climatic Category: 55/155/56, according to EN 60068-1
- Solderability: meets IEC standards, Max soldering temp 260°C for 10s
Buy the Ohmite Series HVC High Voltage Wraparound Chip Resistors: HVC0402E5006KET
Experience the security of high voltage handling and exceptional stability with our premium high voltage resistor series. Engineered for demanding electronic applications, these resistors support voltages up to 6000V and provide consistent performance in high vacuum and high-reliability environments. Whether in power supplies, high-voltage circuits, or precision electronics, our resistors deliver outstanding tolerance, long-term stability, and thermal endurance. Purchase online now to secure reliable components that guarantee your project’s success and meet the highest industry standards.
Order your Ohmite Series HVC high voltage wraparound chip resistor today and ensure your high-reliability electronic projects succeed with premium performance.
Frequently Asked Questions
Where can I buy Ohmite HVC0402E5006KET?
You can click on the BUY or RFQ button to purchase HVC0402E5006KET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0402E5006KET?
You can download the HVC0402E5006KET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0402E5006KET?
Ohmite
