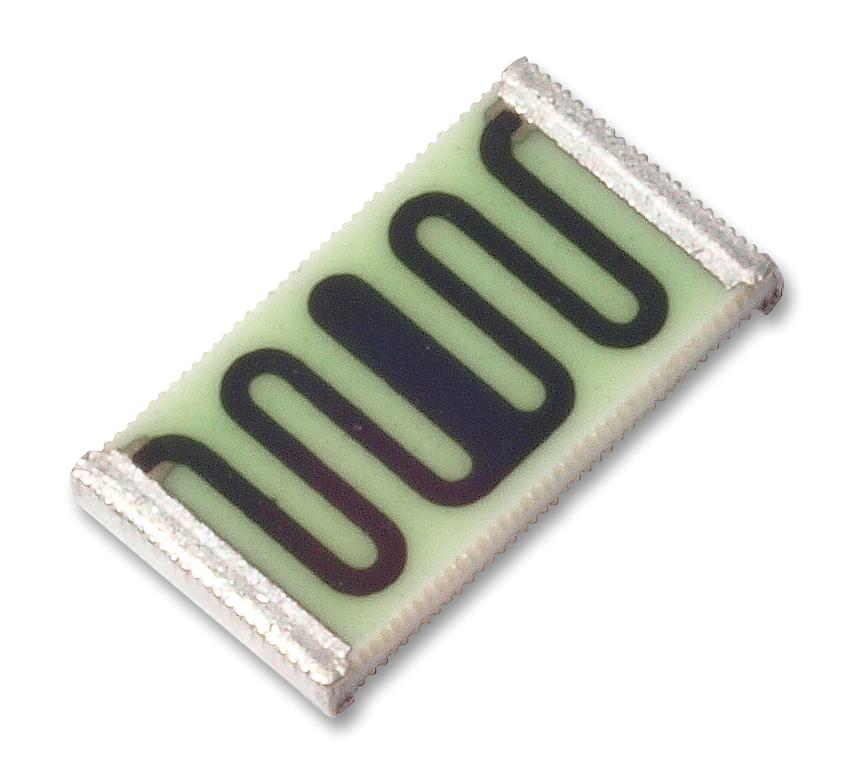

Ohmite HVC0402T5005JET High-Voltage Wraparound Resistor
The HVC Series high-voltage wraparound chip resistors are designed with thick film technology, offering low temperature and voltage dependencies, and high working voltage up to 3000V. Available in various sizes from 0402 to 4020, they feature Nickel-barrier/matte tin contact areas, and are suitable for high vacuum applications with no organics. These resistors provide excellent stability, low TCR and VCR, and are ideal for high voltage, precision applications requiring reliable performance under demanding conditions.
Ohmite HVC0402T5005JET High-Voltage Wraparound Resistor Specifications:
- Sizes: 0402, 0603, 0805, 1206, 2512, 4020
- Power Ratings: 50mW (0402), 100mW (0603), 125mW (0805), 250mW (1206), 1000mW (2512), 1500mW (4020)
- Operating Voltage: 30V (0402), 75V (0603), 200V (0805), 600V (1206), 2000V (2512), 4000V (4020)
- Resistance Range: 100k-100MΩ, >100M-1GΩ, >1G-10GΩ, >10G-100GΩ, >100G-1TΩ
- TCR: 25, 50, 100 ppm, with some models at 10 ppm
- VCR: 50, 100, 250 ppm
- Maximum Soldering Temperature: 260°C for 10s, 250°C for 3s
- Temperature Range: -55°C to +155°C
- Long-term Stability: <1% (load life 1000h at 70°C), <2% (storage 125°C/1000h)
- Termination Finish: 100% electroplated matte Sn, thickness 5 microns
- Barrier Material: Porosity-free nickel, 5-8 microns thickness
- Peak Process Temperature: 260°C for 10s
- Design Features: Wraparound terminals, high voltage capability up to 3000V, suitable for high vacuum environments with no organics
Buy the Ohmite Series HVC High-Voltage Wraparound Chip Resistor: HVC0402T5005JET
Purchase the Ohmite Series HVC high-voltage wraparound resistors online today for your demanding applications. Designed with thick film technology, these resistors offer low TCR and VCR, voltages up to 3000V, and stable performance in high vacuum environments. Available in multiple sizes and resistance ranges, they are perfect for precision high-voltage applications, ensuring durability and reliability under extreme conditions. Order now and empower your projects with superior high-voltage precision resistors that meet international standards.
Order your Ohmite Series HVC high-voltage wraparound chip resistor today and ensure your high-voltage, high-reliability applications are backed by quality and stability.
Frequently Asked Questions
Where can I buy Ohmite HVC0402T5005JET?
You can click on the BUY or RFQ button to purchase HVC0402T5005JET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0402T5005JET?
You can download the HVC0402T5005JET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0402T5005JET?
Ohmite
