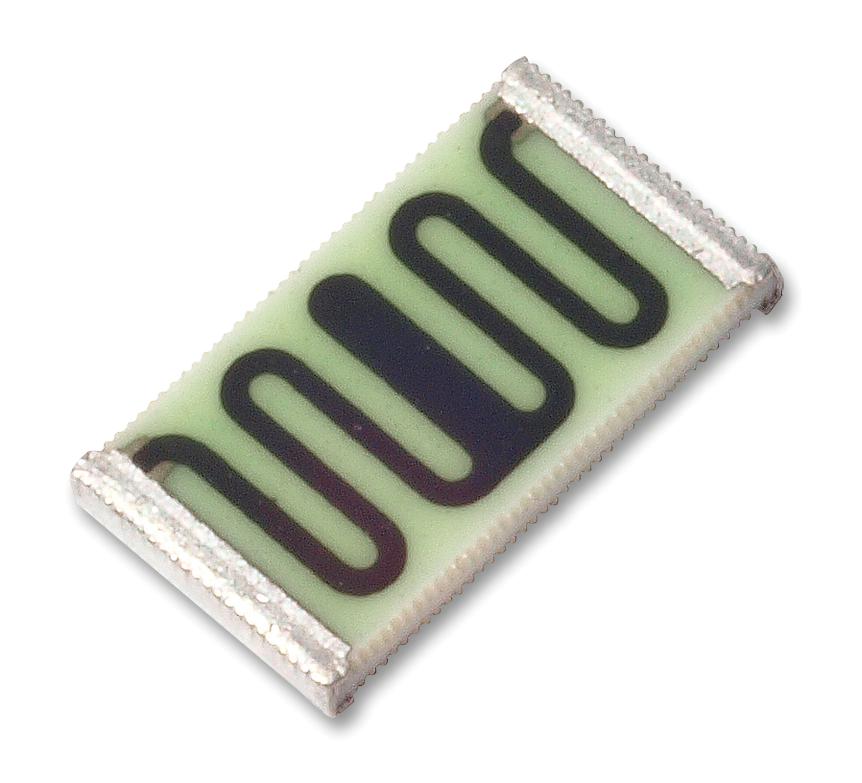

Ohmite HVC0603N5007KET High-Voltage Chip Resistor
High-voltage, high-value wraparound chip resistors featuring thick film technology, suitable for applications up to 3000V, with low TCR and VCR dependencies. These resistors are ideal for high vacuum environments, have nickel-barrier/matte tin contact areas, and are available in various sizes like 0402, 0603, 0805, 1206, 2512, and 4020, offering wattages from 50mW to 1500mW. They meet stringent specifications for stability, thermal stability, and solderability, with operating temperatures from -55°C to +155°C, ensuring reliability in demanding environments.
Ohmite HVC0603N5007KET High-Voltage Chip Resistor Specifications:
- Series: HVC Series
- Sizes: 0402, 0603, 0805, 1206, 2512, 4020
- Power Ratings: 50mW to 1500mW depending on size
- Maximum Operating Voltage: up to 6000V for largest sizes
- Resistance Range: 100kΩ to >10GΩ, up to 1TΩ
- Tolerance: 0.5-30% depending on type
- Operating Temperature Range: -55°C to +155°C
- Climatic Category: 55/155/56
- Soldering Temperature: 260°C for 10 seconds
- End Termination: Nickel barrier/matte tin, 5 microns thick
- Body Material: Base metal with PdAg coating
- Dimensions vary by size, e.g., 0603 (1.50 x 0.80 mm), 0805 (2.00 x 1.25 mm), 1206 (3.20 x 1.50 mm), 2512 (6.30 x 3.50 mm), 4020 (10.20 x 5.10 mm)
Buy the Ohmite Series HVC High-Voltage Chip Resistors: HVC0603N5007KET
Order the Ohmite HVC0603N5007KET high-voltage chip resistor online today and ensure your electronic applications benefit from superior stability, high voltage tolerance up to 3000V, and meticulous build quality. Designed for demanding environments, these resistors deliver precise resistance values, low TCR, and VCR dependencies. With robust construction, excellent thermal stability, and resistance to high vacuum conditions, they guarantee long-term performance and reliability, making them an essential component for high-voltage, high-precision electronic projects requiring seamless online procurement.
Buy Ohmite HVC0603N5007KET high-voltage chip resistor now and experience unmatched reliability and performance in demanding electronic circuits.
Frequently Asked Questions
Where can I buy Ohmite HVC0603N5007KET?
You can click on the BUY or RFQ button to purchase HVC0603N5007KET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0603N5007KET?
You can download the HVC0603N5007KET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0603N5007KET?
Ohmite
