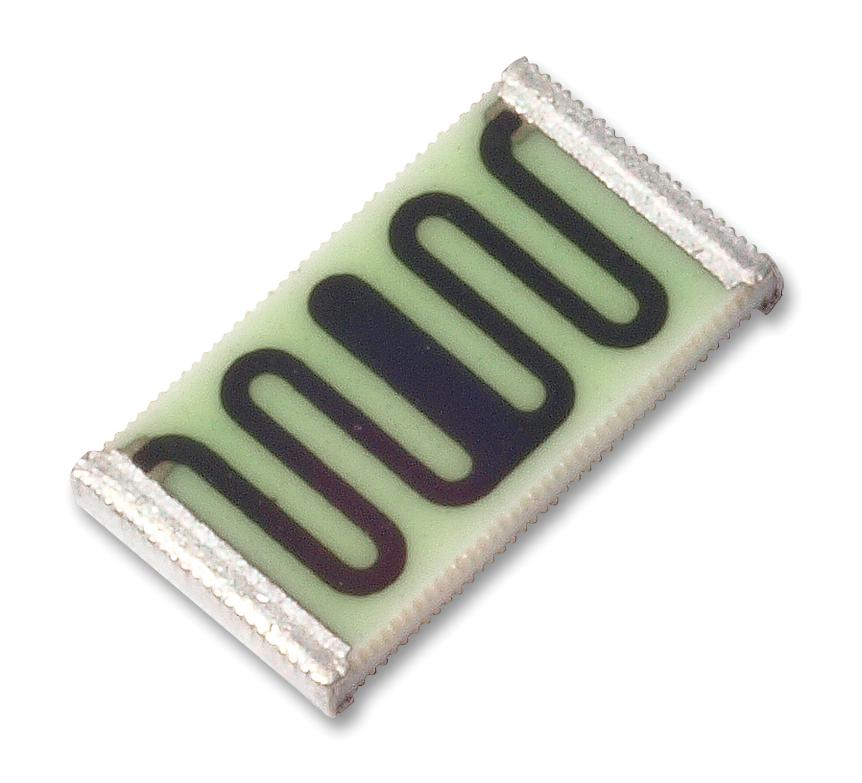

Ohmite HVC0603T1006FET High Voltage Chip Resistor
High-voltage resistors in thick film technology designed for precise and reliable performance in high vacuum environments, offering low temperature and voltage dependency. Capable of operating at voltages up to 3000V with wraparound terminals and nickel-barrier/matte tin contact areas, these resistors come in various sizes including 0402, 0603, 0805, 1206, 2512, and 4020. They feature excellent long-term stability, high working voltage, and RoHS compliance, suitable for applications demanding high voltage resistance, stability, and low TCR and VCR characteristics.
Ohmite HVC0603T1006FET High Voltage Chip Resistor Specifications:
- Series: HVC0402--, HVC0603--, HVC0805--, HVC1206--, HVC2512--, HVC4020--
- Power Rating: 50mW to 1500mW depending on size
- Operating Voltage: 30V to 4000V
- Resistance Range: 100kΩ to 1TΩ (Ω to GΩ range varies by series)
- Tolerance: 0.5% to 10%, with some models 0.25%
- Temperature Range: -55°C to +155°C
- Soldering Temperature: Up to 260°C for 10s
- Climatic Category: 55/155/56 according to EN 60068-1
- Durability: Load life at 70°C/1000h, storage at 125°C/1000h
- Peak Process Body Temp: 260°C for 10s
- Termination: 100% electroplated matte Sn, Ni barrier
- Physical Dimensions: Ranging from 0.30 mm to 10.20 mm with respective widths and lengths
- RoHS Compliant
Buy the Buy Ohmite HVC Series High-Voltage Chip Resistors Part Number HVC0603T1006FET Online
Purchase the Ohmite High Voltage Chip Resistor HVC0603T1006FET online today to secure reliable performance in demanding high voltage and vacuum applications. These resistors feature robust thick film technology, wraparound terminals, low TCR and VCR, and are suitable for environments requiring high stability and long-term durability. Available with a resistance range up to 1TΩ and operating voltages up to 4000V, they are RoHS compliant and ideal for precise, high-performance electronic designs. Order now and enhance your project’s reliability with proven quality.
Order your Ohmite SeriesHVC0603T1006FET high-voltage resistors today and ensure your high voltage applications have dependable, long-term stability with excellent performance.
Frequently Asked Questions
Where can I buy Ohmite HVC0603T1006FET?
You can click on the BUY or RFQ button to purchase HVC0603T1006FET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0603T1006FET?
You can download the HVC0603T1006FET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0603T1006FET?
Ohmite
