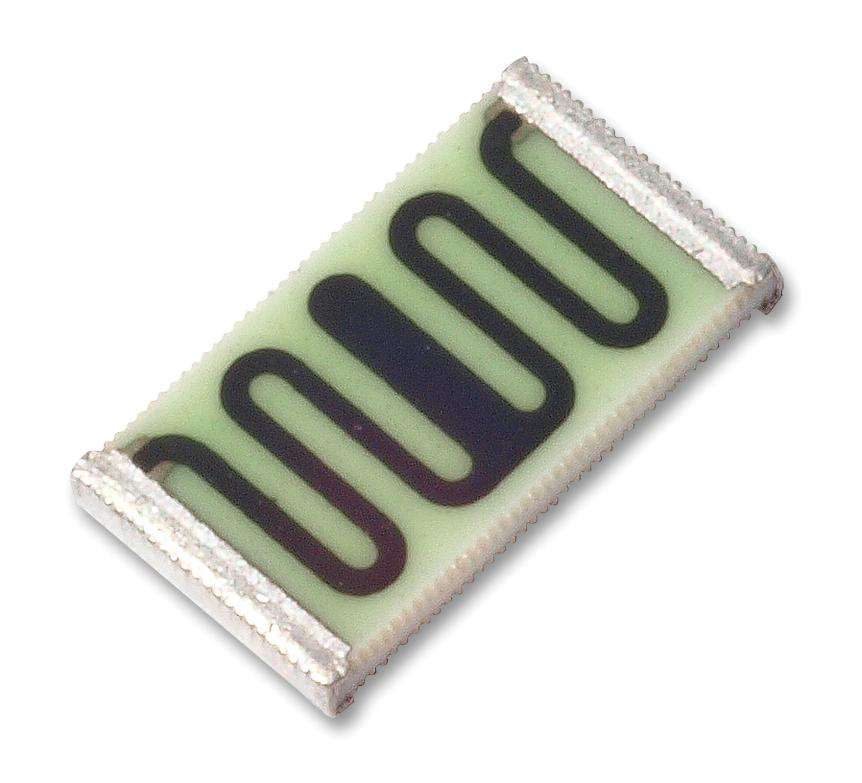

Ohmite HVC0603T2504FET High-Voltage Resistor
The HVC Series high-voltage wraparound chip resistors are thick film devices suitable for demanding high voltage applications up to 6000V. These resistors feature low TCR and VCR for high precision, with sizes ranging from 0402 to 4020 and wattages from 50mW to 1500mW. Constructed with nickel barrier and matte tin finishes, they offer excellent long-term stability, high working voltage, and are RoHS compliant. Ideal for high vacuum environments, these resistors are designed for reliability and superior performance in industrial and electronic circuits requiring high voltage and precision.
Ohmite HVC0603T2504FET High-Voltage Resistor Specifications:
- Size Range: 0402 to 4020
- Wattage: 50mW to 1500mW
- Oper. Voltage: 30V to 6000V
- Resistance Range: 100kΩ to over 10GΩ
- Tolerance: 0.5-30%
- Operating Temperature: -55°C to +155°C
- Climatic Category: 55/155/56
- Solderability: Max temperature 260°C, 10s
- Long Term Stability: <1G to <2%
- Termination Finish: Electroplated matte Sn100
- Barrier Material: Porosity-free Ni
- Peak Process Body Temp: 260°C for 10s
Buy the Ohmite Series HVC High-Voltage Wraparound Chip Resistors: HVC0603T2504FET
Purchase the high-voltage wraparound chip resistor from Ohmite online today. Designed for demanding high voltage applications, these resistors offer low TCR, high stability, and long-term reliability. Available in multiple sizes and wattages, ideal for industrial, electronics, and high vacuum environments, meeting RoHS standards. Ensure your project’s success with precision components capable of handling up to 6000V. Shop now for fast delivery and quality assurance on your high-voltage resistor needs.
Order your Ohmite Series HVC high-voltage wraparound chip resistor today and ensure your circuits have high reliability, precision, and excellent performance in demanding environments.
Frequently Asked Questions
Where can I buy Ohmite HVC0603T2504FET?
You can click on the BUY or RFQ button to purchase HVC0603T2504FET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0603T2504FET?
You can download the HVC0603T2504FET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0603T2504FET?
Ohmite
