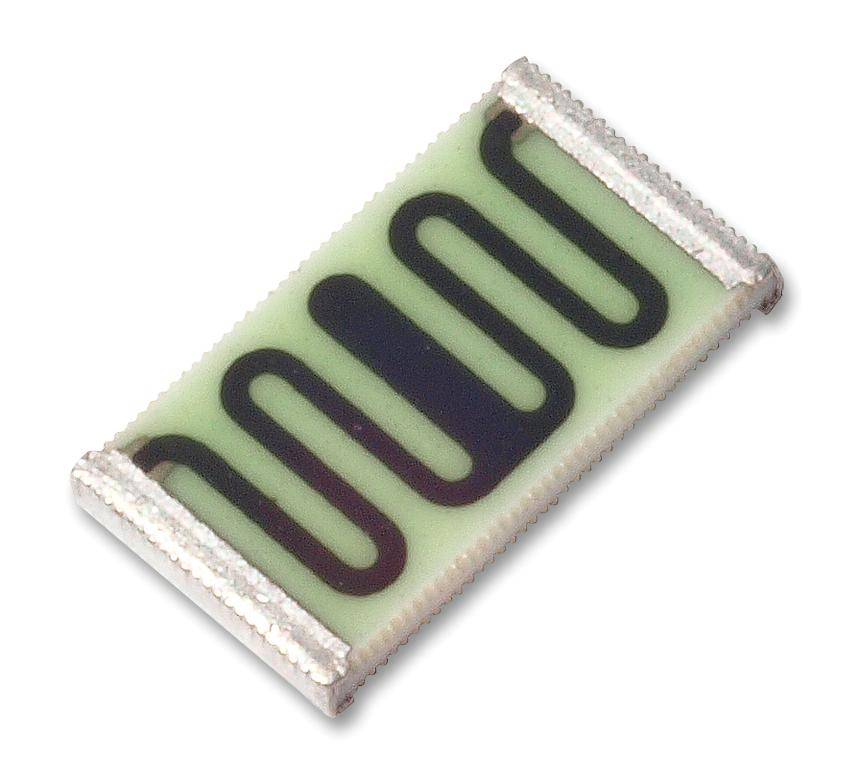

Ohmite HVC0603Z2506GET High-Voltage Wraparound Resistor
The high-voltage wraparound chip resistors in the HVC series offer precise, thick-film technology with low temperature and voltage dependency, high voltage up to 3000V, and suitability for high vacuum environments with no organics. Available in multiple sizes including 0402, 0603, 0805, 1206, 2512, and 4020, they feature nickel-barrier and matte tin contact areas, with power ratings from 50mW to 1500mW. These resistors are ideal for applications requiring high reliability, stability, and resistance to extreme conditions due to their robust construction and proven long-term stability.
Ohmite HVC0603Z2506GET High-Voltage Wraparound Resistor Specifications:
- Available sizes: 0402, 0603, 0805, 1206, 2512, 4020
- Power Ratings: 50mW to 1500mW
- Operating Voltage: up to 6000V depending on size
- Resistance Range: 100k-100MΩ with extended options exceeding 10GΩ
- Resistance Tolerance: 5-10%
- TCR and VCR: 25-100 ppm, with certain values at 50 and 100 ppm
- Operating Temperature: -55°C to +155°C
- Max. Soldering Temp: 260°C for 10s
- Long Term Stability: <1G to <2% depending on size and resistance
- Termination Finish: Electroplated matte Sn, 5 microns thick, with Ni barrier
- Peak Process Temperature: 260°C for 10 seconds
- Environmental: Climatic category 55/155/56, RoHS compliant
- Physical dimensions vary per size, e.g., 0603: 1.50 x 0.80 mm, 1206: 3.20 x 1.50 mm
Buy the Ohmite Series HVC High-Voltage Wraparound Chip Resistor: HVC0603Z2506GET
Purchase the Ohmite Series HVC high-voltage wraparound resistor online today for your high-precision, high-reliability applications. These resistors feature low TCR, high voltage ratings up to 3000V, and are designed for high vacuum and extreme environmental conditions. Ideal for industrial, aerospace, and high-voltage electronics, they provide excellent long-term stability and thermal resistance. Available in multiple sizes with power ratings from 50mW to 1500mW, they meet strict industry standards and RoHS compliance, ensuring performance and durability for your demanding projects.
Order your Ohmite Series HVC high-voltage wraparound chip resistor today and ensure your projects benefit from reliable, high-voltage stability with robust construction.
Frequently Asked Questions
Where can I buy Ohmite HVC0603Z2506GET?
You can click on the BUY or RFQ button to purchase HVC0603Z2506GET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0603Z2506GET?
You can download the HVC0603Z2506GET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0603Z2506GET?
Ohmite
