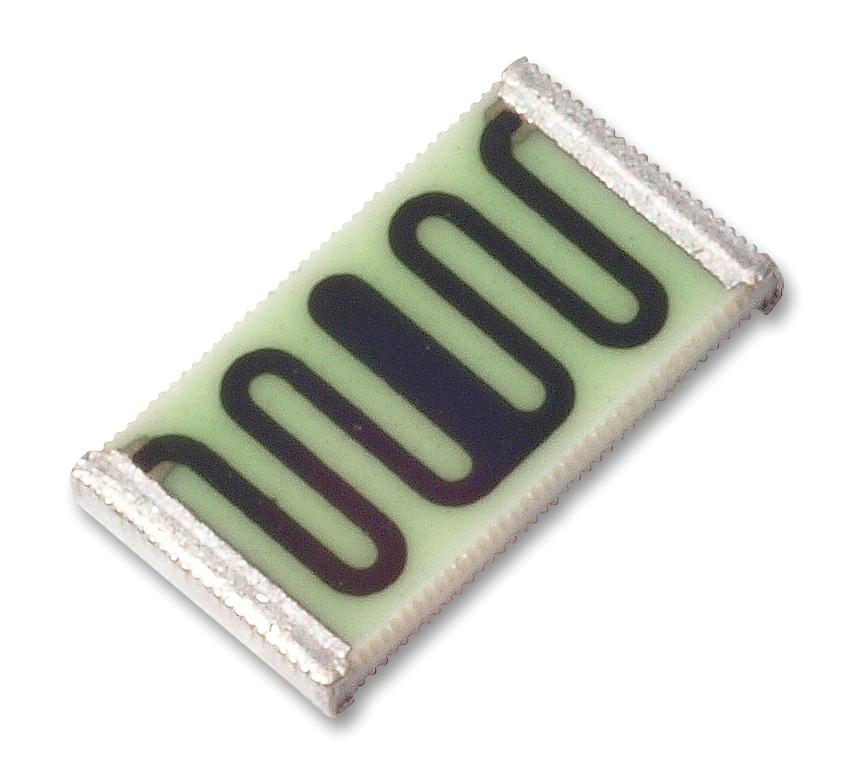

Ohmite HVC0805Z2506JET High-Voltage Chip Resistor
High-voltage chip resistors in thick film technology designed for reliability in high vacuum applications. Featuring low TCR and VCR, these resistors support working voltages up to 3000V and are suitable for high power and high resistance environments. They have nickel-barrier/matte tin contact areas, wraparound terminals, and meet RoHS standards. These resistors are ideal for precision circuitry requiring high stability, low temperature dependency, and excellent long-term stability under demanding conditions. Available in various sizes, including 0805, 1206, and 2512, with resistance ranges from 100kΩ to over 10GΩ, and operate within -55°C to +155°C.
Ohmite HVC0805Z2506JET High-Voltage Chip Resistor Specifications:
- Size: 0805, Length: 2.00 +.15/-.05 mm, Width: 1.25 +.15/-.05 mm, Thickness: 0.40 +.15/-.05 mm
- Power rating: 125 mW, Operating voltage: 200V, Resistance range: 100kΩ to >10GΩ
- TCR: 50, 100 ppm; VCR: 500 ppm, Temperature range: -55°C to +155°C
- Material: Thick film on ceramic substrate, Contact finish: Nickel barrier/matte tin
- Soldering temp: 260°C for 10s, Max soldering temp: 250°C, Long-term stability: <1% resistance change after 1000h at 125°C
- RoHS compliant, Peak process temperature: 260°C, Termination thickness: 5 microns
- Barrier: Porosity-free Ni, Finish: 100% electroplated matte Sn, Packaging: Tape & Reel for automated assembly
Buy the Ohmite HVC0805Z2506JET – Reliable High-Voltage Chip Resistor for Industrial Applications
Get the high-voltage chip resistor HVC0805Z2506JET online today for your industrial projects. Designed with thick film technology, it offers high stability, low temperature dependency, and resistances up to over 10GΩ. Suitable for high vacuum applications, supporting voltages up to 3000V, and meeting RoHS standards. Its robust construction with nickel barrier and matte tin finish ensures excellent long-term stability. Ideal for precision circuits requiring reliable high voltage resistance, these resistors are packaged in tape and reel for easy automated assembly.
Order your Ohmite Series HVC0805Z2506JET high-voltage resistors today and ensure precision and durability in demanding industrial and high vacuum environments.
Frequently Asked Questions
Where can I buy Ohmite HVC0805Z2506JET?
You can click on the BUY or RFQ button to purchase HVC0805Z2506JET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0805Z2506JET?
You can download the HVC0805Z2506JET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0805Z2506JET?
Ohmite
