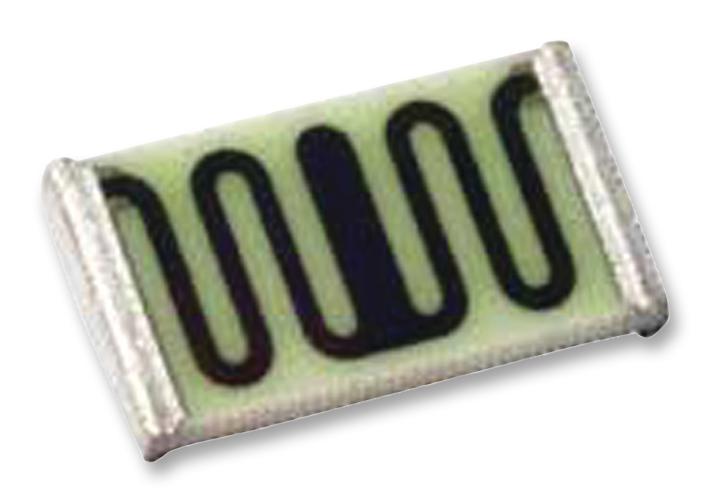

Ohmite HVC0805Z5006JET High-Voltage Wraparound Resistor
The high-voltage wraparound chip resistors offer excellent performance in high vacuum and high voltage applications with low TCR and VCR dependencies. Designed in thick film technology, these resistors feature nickel-barrier/matte tin contact areas, wraparound terminals, and can operate at voltages up to 3000V. Available in various sizes like 0402, 0603, 0805, and larger, they provide highly stable resistance values, long-term stability, and are suitable for demanding industrial and electronic systems requiring high precision and reliability in extreme conditions. They meet RoHS compliance standards and are ideal for precision high-voltage circuitry.
Ohmite HVC0805Z5006JET High-Voltage Wraparound Resistor Specifications:
- Series: HVC with sizes 0402, 0603, 0805, 1206, 2512, 4020
- Power Ratings: 50mW to 1500mW depending on size
- Operating Voltage: up to 3000V
- Resistance Range: 100kΩ to 1TΩ
- Resistance Tolerance: ±0.5% to ±30%
- Temperature Range: -55°C to +155°C
- Max. Soldering Temperature: 260°C for 10 seconds
- Construction: Thick film on ceramic substrate, nickel barrier, matte tin contact, and PdAg base metal
- Dimensions: For example, 0805 size measures approximately 2.00 x 1.25 mm
- Long-term stability: <0.25% to <1% depending on conditions
- Climatic category: 55/155/56 according to EN 60068-1
- RoHS compliant and suitable for high vacuum and high voltage environments
Buy the Buy Precision High-Voltage Wraparound Chip Resistors Part Number HVC0805Z5006JET Online
Purchase high-quality high-voltage wraparound chip resistors online to ensure exceptional durability, precise high-voltage resistance, and stability in demanding electrical environments. Designed with thick film technology, these resistors feature low TCR and VCR, excellent long-term stability, and can operate at voltages up to 3000V. Ideal for high vacuum applications, they come in various sizes including the popular 0805, 1206, and larger formats. Order now for reliable high voltage performance in industrial, electronic, and high-precision systems, with fast shipping and competitive pricing.
Get Precision High-Voltage Wraparound Chip Resistors from Ohmite today—built for high voltage stability and long-lasting performance.
Frequently Asked Questions
Where can I buy Ohmite HVC0805Z5006JET?
You can click on the BUY or RFQ button to purchase HVC0805Z5006JET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC0805Z5006JET?
You can download the HVC0805Z5006JET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC0805Z5006JET?
Ohmite
