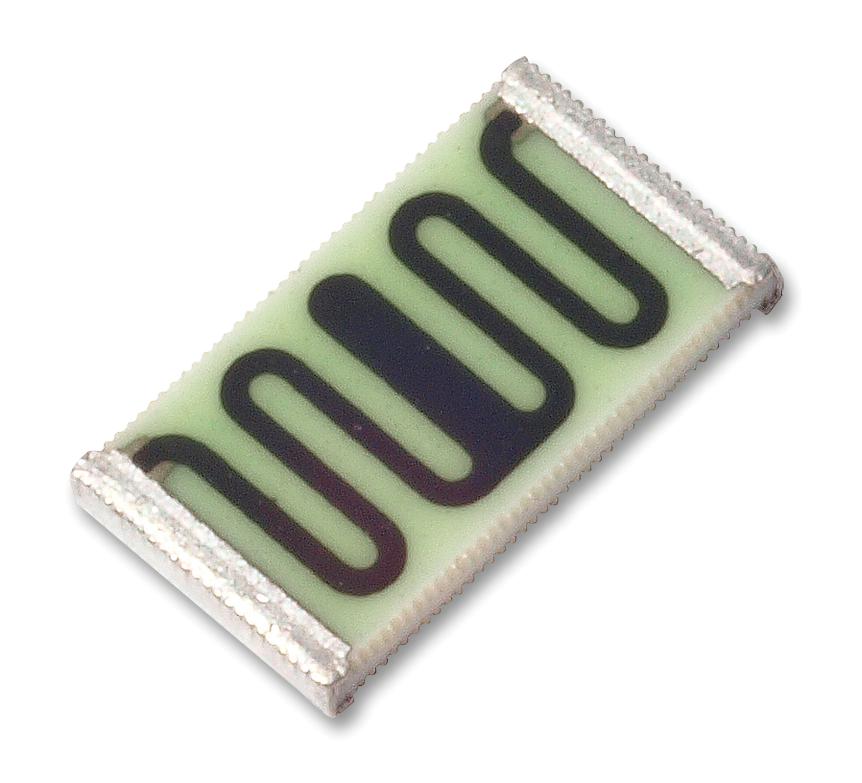

Ohmite HVC4020V2506JET High-Voltage Chip Resistor
The high-voltage wraparound chip resistor from the HVC series is designed with thick film technology, offering high resistance values up to 10 gigohms, and can withstand voltages up to 3000V. It features a durable nickel barrier/matte tin contact area, wraparound terminals for reliable connections, and is suitable for high vacuum applications without organics. This resistor operates within a temperature range of -55°C to +155°C, ensuring stability and durability in demanding conditions, making it ideal for industrial and electronic high-voltage circuits with a focus on precision and reliability.
Ohmite HVC4020V2506JET High-Voltage Chip Resistor Specifications:
- Size: 4020 (mm) 10.20 x 5.10 x 0.60
- Power Rating: 1500 mW
- Operating Voltage: 4000 V
- Resistance Range: 100k-100M, >100M-1G, >1G-10G
- Resistance Tolerance: 0.5-10%
- Temperature Range: -55°C to +155°C
- Solder Temperature: 260°C for 10 seconds
- Max Soldering Temperature: 260°C, 10s
- Durability: Load Life 70°C/1000h, Storage 125°C/1000h
- Termination Finish: Electroplated matte Sn 100%, 5 microns thick
- Barrier Material: Porosity-free Ni (5-8 microns)
- Climatic Category: 55/155/56
Buy the Ohmite Series HVC High-Voltage Wraparound Chip Resistor: HVC4020V2506JET
Experience the reliability of the Ohmite HVC4020V2506JET high-voltage chip resistor, featuring thick film technology and resistance up to 10G ohms. Designed for demanding high vacuum and industrial applications, it withstands voltages up to 3000V with a maximum power rating of 1500 mW. Its durable nickel barrier/matte tin contact and wraparound terminals ensure excellent electrical contact and stability. Operating in temperatures from -55°C to +155°C, this resistor offers high stability, low TCR, and VCR, along with superior long-term stability for critical high-voltage circuits—perfect for engineers and designers seeking quality and durability in high-voltage resistors.
Get Ohmite HVC4020V2506JET today—built for precision and long-lasting durability in high-voltage applications.
Frequently Asked Questions
Where can I buy Ohmite HVC4020V2506JET?
You can click on the BUY or RFQ button to purchase HVC4020V2506JET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part HVC4020V2506JET?
You can download the HVC4020V2506JET datasheet or visit the Ohmite website for support.
Who is the manufacturer of HVC4020V2506JET?
Ohmite
