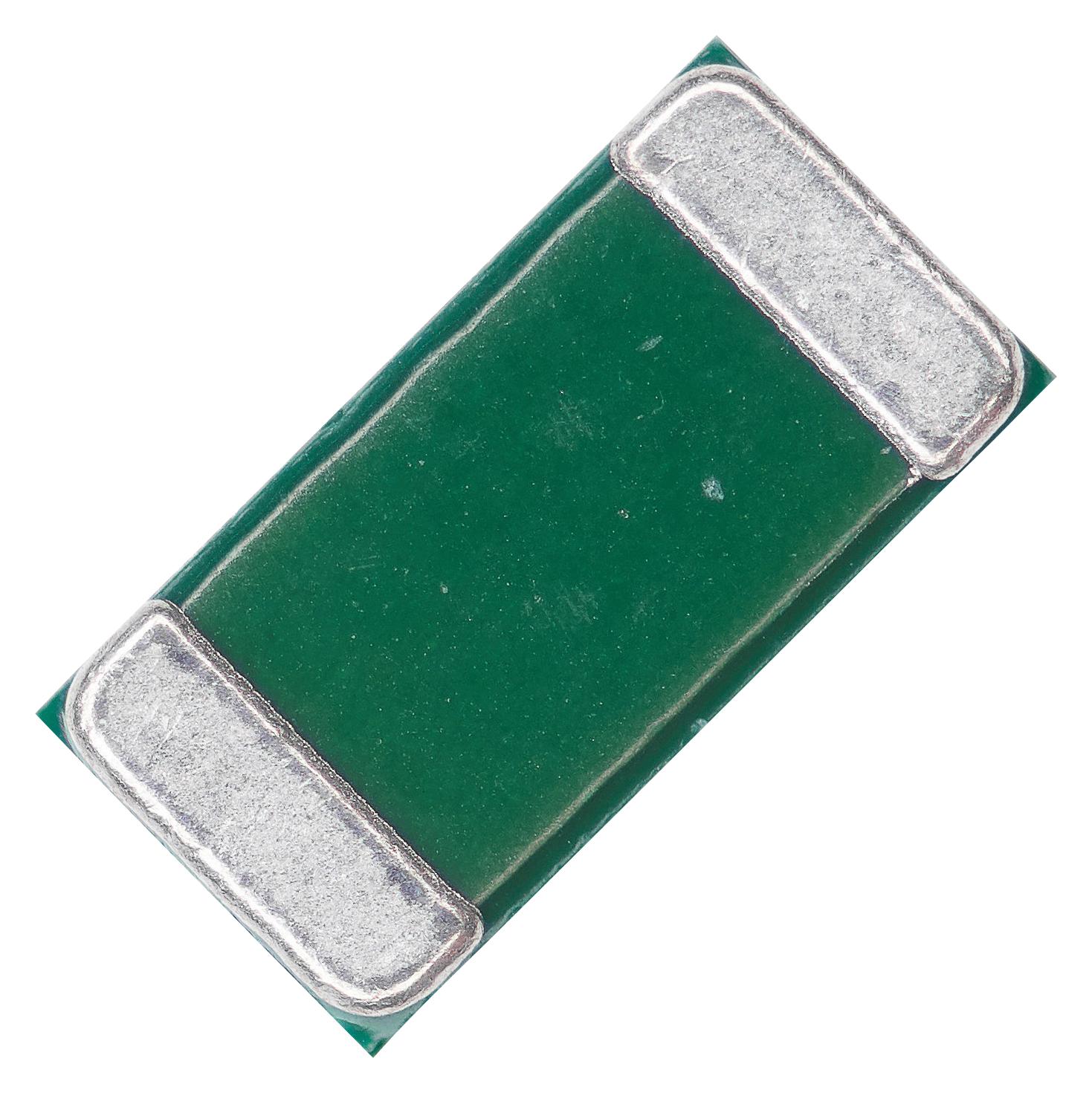

Ohmite JR0805X35E High Power Jumper Chip
The JR series high power jumper chip offers reliable, low-resistance jumpers rated up to 100 amps and resistance as low as 0.2 milliohms. Available in five sizes from 0402 to 2512, these devices feature excellent insulation resistance over 100M ohms, making them ideal for high current applications in power distribution and electronic circuits. Constructed with copper and epoxy resin coating, they are designed for durable performance across a wide temperature range, including reflow soldering and wave soldering, ensuring easy integration into various manufacturing processes.
Ohmite JR0805X35E High Power Jumper Chip Specifications:
- Series: JR402X20E, JRO603X26E, JRO805X35E, JR1206X40E, JR2512X100E
- Resistance: <0.2m ohms to 0.5m ohms depending on model
- Current Handling: Up to 100 amps
- Max Residue Temperature: 170°C (2512 size)
- Operating Temp. Range: -55°C to +170°C (2512 size), -55°C to +150°C (others)
- Insulation Resistance: Over 100M ohms
- Construction: Copper resistive element, epoxy resin coating, FR4 substrate
- Soldering: Wave and reflow soldering compatible with preheating and temperature profiles
- Storage Temp.: 25°C with 60-220% humidity, 2 years shelf life
- Maximum Power Dissipation: 2W (2512 size), less for smaller sizes
- Certifications: RoHS compliant
- Mechanical Data: Sizes range from 0.40mm x 1.0mm (0402) to 3.05mm x 6.35mm (2512)
- Maximum Resistance: Below 0.2 milliohms for high current applications
- Features: Available in 5 sizes, high insulation resistance, rated for 100A
- Soldering temperatures: Max 265°C, compliant with IEC60115-1 standards
- Peak Reflow Soldering Temp.: 250°C to 260°C depending on size
Buy the Ohmite Series JR High Power Jumper Chip: JR0805X35E
Purchase the Ohmite JR0805X35E high power jumper chip online today to ensure reliable, low-resistance connections rated up to 100 amps. Perfect for electronic and power circuit applications, this jumper series features five sizes for versatile use, excellent insulation resistance over 100M ohms, and robust construction with copper and epoxy coating. Designed to withstand high temperatures and soldering processes, it provides durable performance across wide temperature ranges, making it an ideal choice for demanding industrial and consumer electronics projects. Secure your supply today for seamless integration and superior electrical performance.
Buy Ohmite JR0805X35E high power jumper chip now and experience unmatched reliability and performance in high current electronic applications.
Frequently Asked Questions
Where can I buy Ohmite JR0805X35E?
You can click on the BUY or RFQ button to purchase JR0805X35E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part JR0805X35E?
You can download the JR0805X35E datasheet or visit the Ohmite website for support.
Who is the manufacturer of JR0805X35E?
Ohmite
