Ohmite KDV06DR120ET Low-Resistance Chip Resistor
The KDV series features metal film low-resistance chip resistors designed for high precision current sensing and power capability applications. These resistors boast excellent long-term stability, low inductance, and high power ratings suitable for consumer electronics, telecom, measuring instruments, industrial power supplies, and battery management systems. Available in multiple sizes like 0603, 0805, and 1206, the resistors are halogen and lead-free, RoHS compliant, with temperature ranges from -55°C to +155°C, making them reliable for demanding environments and precise electronic circuit applications.
Ohmite KDV06DR120ET Low-Resistance Chip Resistor Specifications:
- Size: 0603, 0805, 1206
- Power Ratings: 1/5W, 1/4W, 1/2W
- Max Current: 2.00A for 0603, 2.244A for 0805, 3.16A for 1206
- Resistance Range: 50mΩ to 1000mΩ
- TCR: +100 to +50 ppm/°C
- Operating Temp Range: -55°C to +155°C
- Temperature Coefficient of Resistance: TCR +125°C, 25°C reference
- Solderability: 95% coverage at 245°C for 3-5 sec
- Storage: 1 year at 25°C, 60-220% humidity
- Resistance to humidity: 100V for 1 min, Resistance to Temperature Cycling: -55°C to +155°C for 300 cycles
- High power capability with overload current: 4.47A for 0603, 5.00A for 0805, 7.07A for 1206
- RoHS compliant, halogen free, lead-free
- Test methods include resistance, solderability, insulation, high temperature exposure, and load life endurance
- Packaging: Paper tape for automation assembly, reel available for bulk ordering

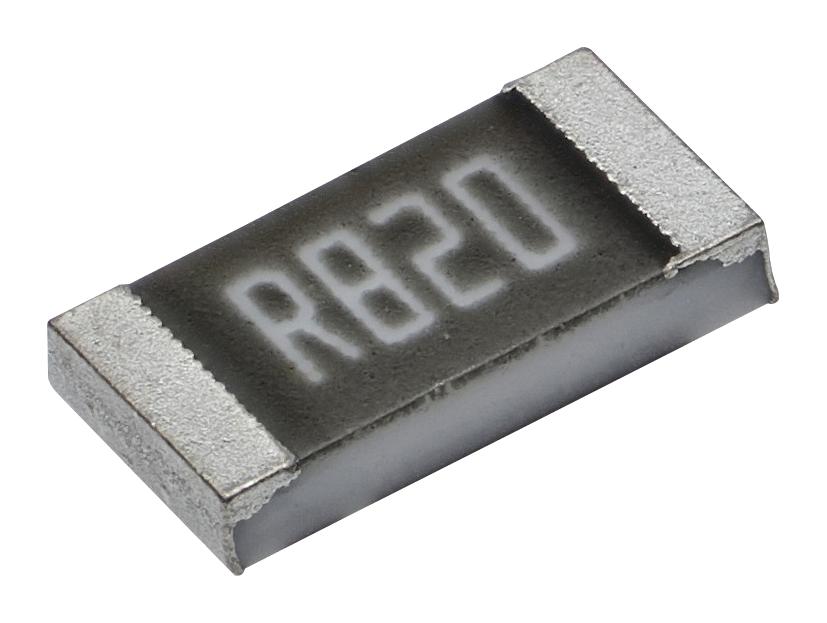

Buy the Buy Ohmite KDV Series KDV06DR120ET Part Number KDV06DR120ET Online
Purchase the Ohmite seriesKDV06DR120ET low-resistance chip resistor online to ensure your electronic projects benefit from high accuracy, superior stability, and RoHS compliance. These metal film resistors are ideal for power supplies, industrial applications, telecom, and battery systems, offering excellent long-term stability, heat resistance, and high overload current ratings. Shop now to secure reliable, lead-free resistors with proven durability and precise resistance ranges, perfect for demanding electronics environments and assembly line manufacturing. Order today for fast delivery and trusted quality assurance.
Order your Ohmite SeriesKDV06DR120ET low-resistance chip resistor today and enhance your power management solutions with high precision and reliability.
Frequently Asked Questions
Where can I buy Ohmite KDV06DR120ET?
You can click on the BUY or RFQ button to purchase KDV06DR120ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part KDV06DR120ET?
You can download the KDV06DR120ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of KDV06DR120ET?
Ohmite
