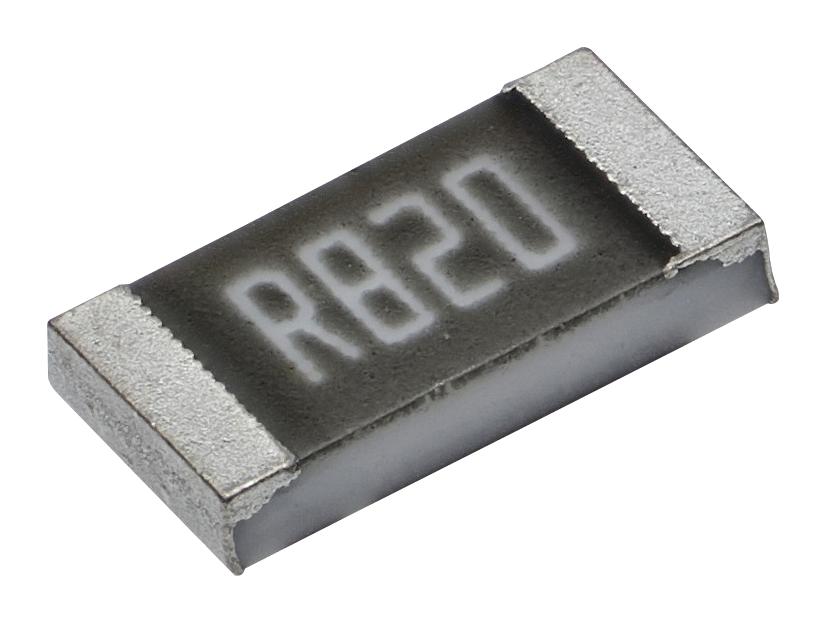

Ohmite KDV06DR560ET Low-Resistance Chip Resistor
This low-resistance chip resistor series offers high accuracy, excellent stability, and high power capacity suitable for consumer electronics, telecom, industrial, and power supply applications. Compliant with RoHS standards, these metal film resistors feature low inductance, TCR of +125°C, and excellent long-term reliability, making them ideal for precision current sensing, measurement instruments, and battery management systems. Available in multiple sizes including 0603, 0805, and 1206, with resistances from 50mΩ to 1000mΩ, and tolerant options of 1% or 0.5%. Designed for robust performance with high overload current ratings and thermal stability.
Ohmite KDV06DR560ET Low-Resistance Chip Resistor Specifications:
- Sizes: 0603, 0805, 1206
- Power Ratings: 1/5W (0603), 1/4W (0805), 1/2W (1206)
- Overload Current: 4.47A (0603), 5.00A (0805), 7.07A (1206)
- Resistance Range: 50mΩ to 1000mΩ
- TCR: +125°C, test to -55°C available upon request
- Temperature Range: -55°C to +155°C
- Storage Time: Up to one year at 25°C, humidity 60-220%
- Operating Conditions: Full load at 70°C ambient, derating as needed
- Insulation Resistance: >10 GΩ at 100V for 1 min
- Solderability & Resistance: Meets JIS C5201-1 standards, 95% coverage
- Reflow Soldering: Peak at 260°C, hot air reflow compatible
- Humidity & Load Life: 1000 hrs at rated power, ±1% resistance change
- Marking: Resistance value code based on size and resistance
Buy the Buy Ohmite KDV Series Low-Resistance Chip Resistor Part Number KDV06DR560ET Online
Order the Ohmite KDV Series low-resistance chip resistor online today to benefit from high accuracy, excellent stability, and maximum power capability. These resistors are perfect for high-precision current sensing, measurement, and battery management systems in consumer electronics, telecom, industrial, and power applications. Offering robust performance, thermal stability, and compliance with RoHS, they ensure reliable operation in demanding environments. Enjoy fast shipping and expert support, making your purchase simple and efficient to meet your project needs.
Get Ohmite KDV06DR560ET today—built for precision and long-lasting durability in high-stability electronic circuits.
Frequently Asked Questions
Where can I buy Ohmite KDV06DR560ET?
You can click on the BUY or RFQ button to purchase KDV06DR560ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part KDV06DR560ET?
You can download the KDV06DR560ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of KDV06DR560ET?
Ohmite
