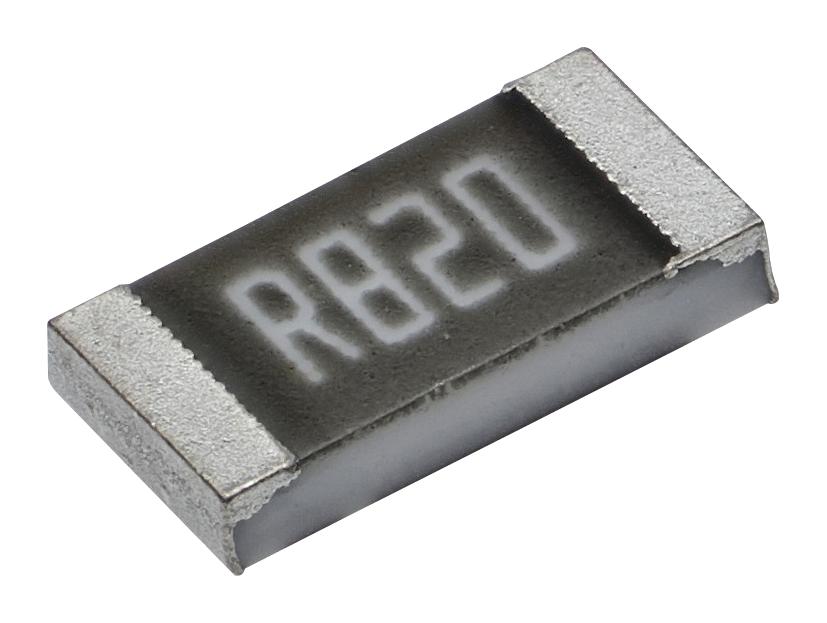

Ohmite KDV08DR050ET Low Resistance Chip Resistor
The KDV series features metal film low-resistance chip resistors designed for high precision current sensing, low inductance, and excellent long-term stability. Suitable for consumer electronics, telecom, power supplies, and industrial applications, these resistors offer high power capability, halogen and lead-free compliance, and a wide operating temperature range of -55°C to +155°C. Available in sizes 0603, 0805, and 1206, they provide reliable performance with TCR ratings from +50 to +125 ppm/°C and resistance ranges from 50mΩ to 1000mΩ.
Ohmite KDV08DR050ET Low Resistance Chip Resistor Specifications:
- Size: 0603, 0805, 1206
- Power Rating: 1/5W to 1/2W depending on size
- Overload Current: 4.47A to 7.07A
- Operating Temp. Range: -55°C to +155°C
- TCR: +50 to +125 ppm/°C
- Resistance Range: 50mΩ to 1000mΩ
- Materials: Metal film, halogen and lead-free
- Storage Temp: 25°C ± 5°C, humidity 60-220%
- Storage Time: up to 1 year from delivery date
- Soldering Method: Reflow, peak temperature 260°C, reflow profile includes preheating, soldering, and cooling zones
- Resistance to humidity: 100V insulation resistance for 1 minute
- Endurance testing: 1000 hours at rated power with 1.5 hr ON / 0.5 hr OFF cycle
- Temperature Cycling: -55°C to +155°C for 300 cycles, resistance change ±1.0%, no visible damage
- Weight: approximately 0.20-0.25g depending on size
- Compliance: RoHS, Halogen-free
Buy the Ohmite Series KDV: Low-Resistance Chip Resistors: KDV08DR050ET
Enhance your electronic designs with the high-precision, low-resistance chip resistor from the KDV series. Manufactured with metal film for long-term stability and excellent performance, these resistors are ideal for power management, measuring instruments, telecom, and industrial applications. They feature wide temperature tolerance from -55°C to +155°C, RoHS compliance, and are halogen and lead-free, ensuring eco-friendly and safe operation. Choose from sizes 0603, 0805, and 1206, providing high power capacity and resistance up to 1000mΩ for versatile use.
Order your Ohmite Series KDV low-resistance chip resistor today and ensure your electronic projects benefit from reliable, high-precision performance.
Frequently Asked Questions
Where can I buy Ohmite KDV08DR050ET?
You can click on the BUY or RFQ button to purchase KDV08DR050ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part KDV08DR050ET?
You can download the KDV08DR050ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of KDV08DR050ET?
Ohmite
