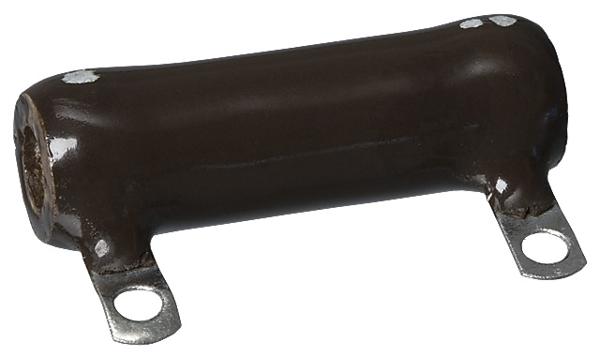

Ohmite L225J150 Vitreous Enamel Power Resistor
OHMITE's 270 Series Vitreous Enamel Power Resistors are designed for demanding applications requiring high wattage ratings, typically from 12 to 1000 watts. These resistors are constructed with lug terminals suitable for soldering or sturdy bolt connection, and their hollow core allows for secure fastening with various brackets. The all-welded construction and durable, lead-free vitreous enamel coating provide exceptional ruggedness and longevity. They are suitable for a wide range of industrial applications where high power dissipation and reliability are critical. Available in various resistance values and wattage ratings to meet specific design requirements.
Ohmite L225J150 Vitreous Enamel Power Resistor Specifications:
- Series: 270 Type
- Wattage: 225 watts
- Resistance: 0.16-129K ohms
- Core Code: P
- Voltage: 4595 V
- Terminal: 46
- Coating: Lead free vitreous enamel
- Construction: All-welded
- RoHS Compliant: Available
- Tolerance: ±5% (J)
- Maximum Voltage: Based on Ohm’s Law [V=√P*R]
- Derating: Linearly from 100% @ +25°C to 0% @ +350°C
- Temperature Coefficient: ±260 ppm/°C (Above 20Ω)
- Dielectric Withstanding Voltage: 1000 VAC (12-100 watt rating)
- Mounting: Spring-type brackets, thru bolts, or slotted-steel brackets
