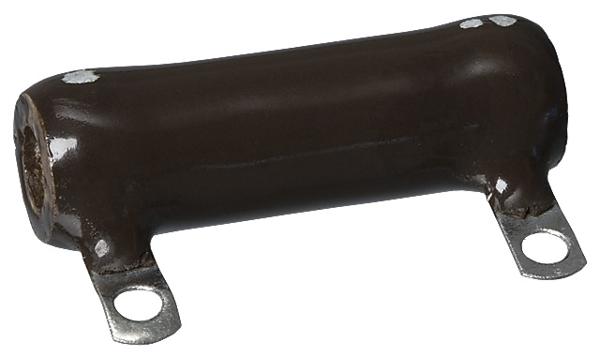

Ohmite L225J50R Vitreous Enamel Power Resistor
OHMITE's 270 Series Vitreous Enamel Power Resistors offer a robust solution for applications demanding high wattage and durability. Constructed with all-welded components and a lead-free vitreous enamel coating, these resistors are ideal for rugged industrial environments. The lug terminals allow for secure soldering or bolt connections, while the hollow core enables fastening with various mounting brackets. Available in a wide range of resistance values and wattage ratings, these resistors are a reliable choice for power control and distribution systems.
Ohmite L225J50R Vitreous Enamel Power Resistor Specifications:
- Series: 270
- Wattage: 50
- Ohms: 50
- Core Code: K
- Voltage: 625
- Std. Terminal: 40
- Coating: Lead free vitreous enamel
- Core: Tubular ceramic
- Terminals: Solder coated radial lug
- Derating: Linearly from 100% @ +25°C to 0% @ +350°C
- Tolerance: ±5% (J)
- Power rating: Based on 25°C free air rating
- Overload: 10 times rated wattage for 5 seconds
- Temperature coefficient: ±400 ppm/°C (1 to 20Ω)
- Dielectric withstanding voltage: 1000 VAC (12 to 100 watt rating)
- Max. amps: use the formula √P/R
- Power limitations for high resistance values: Derate the Power Rating by 25% to improve reliability
Buy the L225J50R OHMITE Vitreous Enamel Power Resistor | myMectronic
Purchase the OHMITE L225J50R Vitreous Enamel Power Resistor securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite L225J50R?
You can click on the BUY or RFQ button to purchase L225J50R from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part L225J50R?
You can download the L225J50R datasheet or visit the Ohmite website for support.
Who is the manufacturer of L225J50R?
Ohmite
