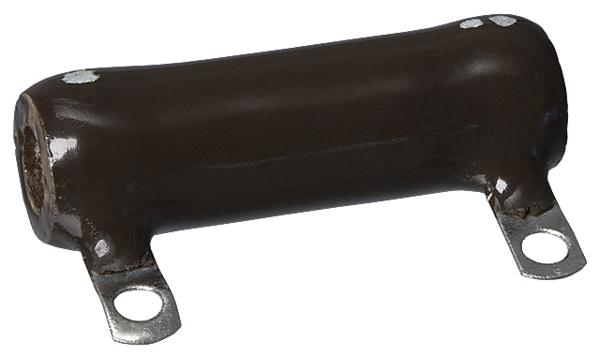

Ohmite L25J200 Vitreous Enamel Power Resistor
OHMITE's 270 Series Vitreous Enamel Power Resistors are robust components engineered for demanding applications requiring high wattage dissipation. These resistors boast lug terminals suitable for soldering or bolt connections, ensuring secure mounting. The all-welded construction and lead-free vitreous enamel coating provide exceptional durability and resistance to harsh conditions. Available in various wattage ratings from 12 to 1000 watts, these resistors are ideal for industrial power control, motor starting, and overvoltage protection circuits. Non-inductive versions are available to minimize inductance effects, and custom core and terminal options are offered to meet specific application requirements.
Ohmite L25J200 Vitreous Enamel Power Resistor Specifications:
- Wattage: 12-1000 watts
- Ohms: 0.1-392K ohms
- Core Code: D, K, M, P, S
- Voltage: 565-8900 VAC
- Terminal: 40, 45, 46, 57
- Coating: Lead free vitreous enamel, Silicone Ceramic
- Tolerance: ±5% (J), ±10% (K)
- Temperature Coefficient: ±400 ppm/°C (1-20Ω), ±260 ppm/°C (Above 20Ω)
- Dielectric Withstanding Voltage: 1000 VAC (12-100 watt), 3000 VAC (175-225 watt)
Buy the L25J200 OHMITE Vitreous Enamel Power Resistor | myMectronic
Purchase the OHMITE L25J200 Vitreous Enamel Power Resistor securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite L25J200?
You can click on the BUY or RFQ button to purchase L25J200 from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part L25J200?
You can download the L25J200 datasheet or visit the Ohmite website for support.
Who is the manufacturer of L25J200?
Ohmite
