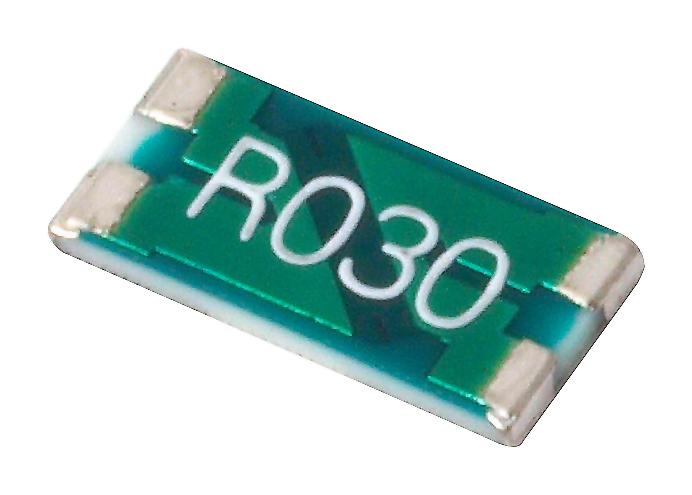

Ohmite LVK24R025DER Current Sense Resistor
The LVK24 series high-precision four-terminal current sense resistor accurately measures current by monitoring voltage drops across a Kelvin configuration. Designed for automatic insertion, it features a compact size with a power rating of 1.0W and resistance range from 0.01 to 0.1 ohms. Employing proprietary technology, it boasts a low temperature coefficient of 50ppm and resistance tolerances of 0.5% or 1%. Suitable for harsh environments, it operates from -40°C to +125°C, with epoxy coating and tin-plated terminals ensuring durability and reliable performance in industrial and electronic applications.
Ohmite LVK24R025DER Current Sense Resistor Specifications:
- Power Rating: 1.0W
- Resistance Range: 0.01-0.1Ω
- Resistance Tolerance: 0.5% or 1%
- Temperature Coefficient: 50ppm/°C
- Operating Temp. Range: -40°C to +125°C
- Max Overcurrent: 38W power, 27A current
- Coating Material: Epoxy resin
- Terminals: Tin-plated
- Size: 2412
- Max. Over Current Duration: 10ms
- Storage Conditions: 5°C ~ 35°C, 25% ~ 70% humidity
Buy the Ohmite Series LVK24 Current Sense Resistor: LVK24R025DER
Purchase the Ohmite Series LVK24 high-precision current sense resistor online today. Designed for accurate current measurement, it features a 1.0W power rating, resistance range of 0.01 to 0.1 ohms, and low temperature coefficient. Ideal for industrial and electronic applications, it withstands harsh environments from -40°C to +125°C and uses durable epoxy coating with tin-plated terminals. Order now to enjoy fast shipping and dependable performance for your projects.
Order your Ohmite Series LVK24 current sense resistor today and ensure precise current measurements with reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy Ohmite LVK24R025DER?
You can click on the BUY or RFQ button to purchase LVK24R025DER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVK24R025DER?
You can download the LVK24R025DER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVK24R025DER?
Ohmite
