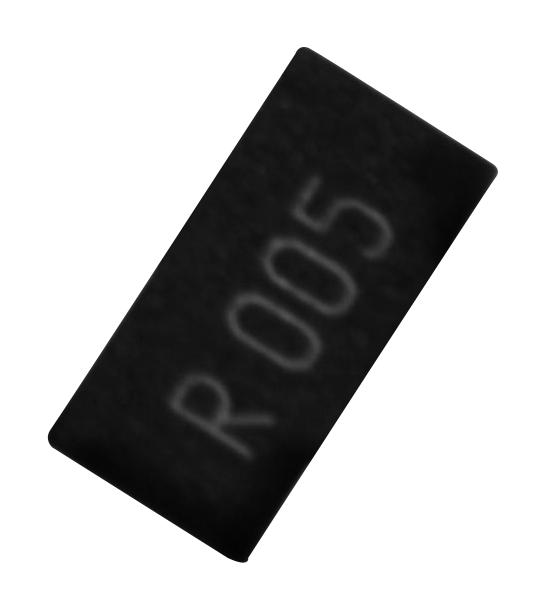

Ohmite LVT02R0100FER Current Sense Resistor
The LVT series low value current sense resistors from Ohmite are metal alloy strip resistors designed for precise current sensing applications. They offer excellent stability with TCR ratings down to 50ppm, tolerances as low as 1%, and resistance ranges from 2mΩ to 20mΩ. These resistors are built with epoxy resin coating, lead-free tin terminals, and operate under temperatures from -55°C to +155°C. Suitable for demanding electronic circuits, they comply with RoHS standards and feature robust construction for reliable performance in industrial and commercial applications.
Ohmite LVT02R0100FER Current Sense Resistor Specifications:
- Resistance Range: 2mΩ to 20mΩ depending on size and TCR
- Power Rating: 0.25W (0201), 0.33W (0402, 0603), 0.5W (0805), 1.0W (1206)
- Temperature Coefficient: up to 50 ppm/°C depending on model
- TCR Ratings: down to 50ppm/°C
- Resistance Tolerance: 1%, 2%, 3%, 5%
- Operating Temperature Range: -55°C to +155°C
- Rated Ambient Temperature: +70°C
- Resistance Values: 0.002Ω to 0.020Ω
- Coating Material: Epoxy resin
- Terminals: 100% matte tin-plated
- Construction: Metal alloy strip resistor with epoxy coating
- Compliance: RoHS
- Storage Conditions: 2 years airtight at 10°C to 40°C, humidity <75%
Buy the Buy Ohmite LVT Series Low Value Current Sense Resistor Part Number LVT02R0100FER Online
Order Ohmite LVT series current sense resistors online today to ensure exceptional stability, tight tolerances, and reliable performance across a variety of electronic applications. Perfect for precise current measurement, these resistors feature resistance values from 2mΩ to 20mΩ, with TCR ratings down to 50ppm, and power ratings from 0.25W to 1.0W depending on size. Constructed with epoxy resin coating and tin-plated terminals, they meet RoHS standards and are designed to withstand temperatures from -55°C to +155°C. Use them confidently in industrial, commercial, and high-accuracy electronic circuits for consistent, trouble-free operation.
Get Ohmite LVT series low value current sense resistors today—built for precision, stability, and long-lasting durability in high-performance electronic circuits.
Frequently Asked Questions
Where can I buy Ohmite LVT02R0100FER?
You can click on the BUY or RFQ button to purchase LVT02R0100FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT02R0100FER?
You can download the LVT02R0100FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT02R0100FER?
Ohmite
