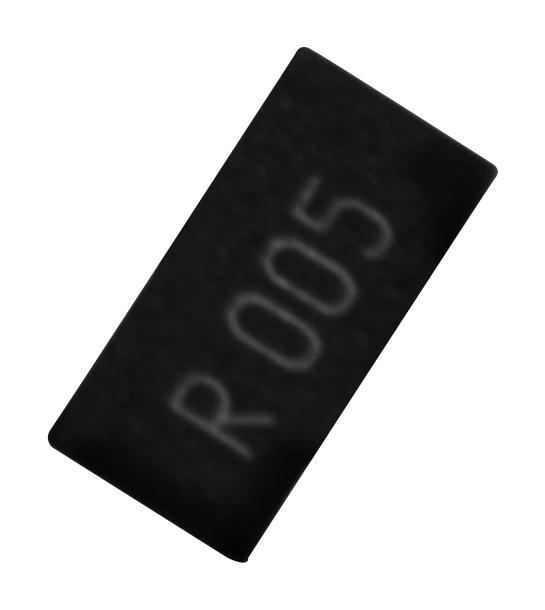

Ohmite LVT08R0010JER Current Sense Resistor
The Ohmite LVT series features metal alloy strip resistors designed for precise current sensing with high stability. Offering resistance from 2mΩ to 20mΩ, these resistors have low TCR ratings down to 50ppm, with tolerances as tight as 1%. They are suitable for power applications up to 0.5W with operating temperatures from -55°C to +155°C. Made with epoxy resin coating and matte tin terminals, the LVT series ensures durability, reliable performance, and minimal drift for sensitive current measurement circuits in industrial and electronic applications.
Ohmite LVT08R0010JER Current Sense Resistor Specifications:
- Resistance Range: 0.002-0.020 ohms depending on size and TCR
- Power Rating: 0.25W to 1.0W depending on series and size
- Resistance Tolerance: 1%, 2%, and 3%
- Temperature Coefficient: ±50 to ±150 ppm/°C
- Operating Temp Range: -55°C to +155°C
- Rated Ambient Temp: +70°C
- Materials: Epoxy resin coating, Cu-alloy resistor with matte tin terminals
- Storage Conditions: Airtight 2 years at +10°C to +40°C, humidity <75%
- Terminals: 100% matte tin plated
- Construction: Metal alloy strip resistor, epoxy substrate, flame-retardant epoxy coating
- Reflow Soldering: Profile compliant with maximum temperatures of 260°C, recommended methods include IR and hot air oven.
- Mechanical Shock: 100G, 11ms, 5x magnitude
- Moisture Load Life: 60°C, 95% RH, 1000h endurance tested
Buy the Buy Ohmite Current Sense Resistor Part Number LVT08R0010JER Online
Purchase the Ohmite LVT series current sense resistor online today for accurate, stable measurements in power systems and electronic circuits. Designed with metal alloy strips, these resistors offer resistance values from 2mΩ to 20mΩ, ensuring low TCR ratings down to 50ppm for minimal drift. Their high temperature rating up to 155°C and robust epoxy coating guarantee reliability in demanding environments. Ideal for industrial, automotive, and sensitive electronic applications, buy now to ensure your project’s precision and durability.
Get Ohmite LVT08R0010JER today—built for precise current sensing with high stability and long-lasting durability.
Frequently Asked Questions
Where can I buy Ohmite LVT08R0010JER?
You can click on the BUY or RFQ button to purchase LVT08R0010JER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT08R0010JER?
You can download the LVT08R0010JER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT08R0010JER?
Ohmite
