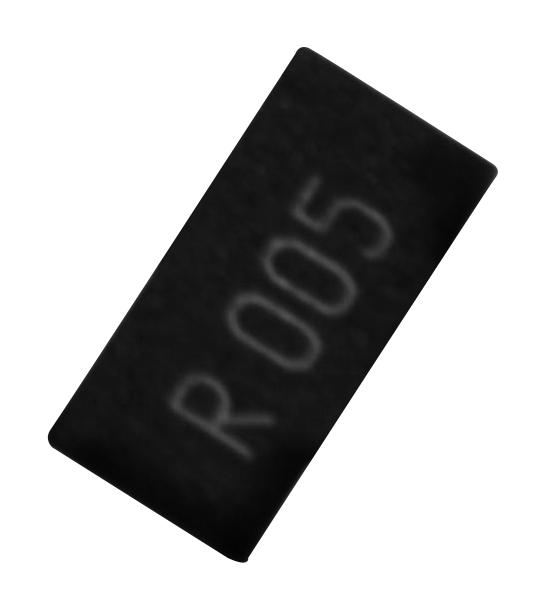

Ohmite LVT08R0015JER Current Sense Resistor
The Ohmite LVT series consists of metal alloy strip resistors offering excellent TCR ratings, low resistance stability, and tight tolerances ideal for current sensing in industrial applications. Available in various sizes from 0201 to 1206, they cover resistance values from 2mΩ to 20mΩ with TCR as low as 50 ppm. These resistors operate within -55°C to +155°C, have epoxy resin coating, and meet UL-94V-0 requirements. Suitable for high-temperature and moisture conditions, they are ideal for precise current measurement and power management tasks in demanding environments.
Ohmite LVT08R0015JER Current Sense Resistor Specifications:
- Resistance Range: 2mΩ to 20mΩ depending on size and TCR
- Power Rating: 0.25W to 1.0W at 70°C ambient
- Operating Temperature Range: -55°C to +155°C
- TCR: As low as 50 ppm/°C
- Tolerance: 1%, 2%, 3%, 5%, 4%
- Coating Material: Epoxy resin meeting UL-94V-0
- Terminals: 100% matte tin
- Construction: Cu-alloy resistor with flame-retardant epoxy coating
- Storage Conditions: 2 years at +10°C to +40°C, humidity <75%
- Mechanical Shock Resistance: 100G, 11ms
- Solder Heat Resistance: Up to 275°C for 45 sec
Buy the Ohmite LVT08 – Reliable Current Sense Resistors for Industrial Applications
Purchase the reliable Ohmite current sense resistor series online today. Designed for precision and stability, these resistors excel in demanding industrial environments. Whether for high-temperature operation or moisture resistance, they provide accurate current measurement with tight tolerances down to 1%. Easy to incorporate into high-power circuits, they feature epoxy coating, robust construction, and compliance with UL-94V-0 standards. Ensure your projects' stability and accuracy with our high-quality resistors, available for quick online ordering and fast delivery.
Order your Ohmite SeriesLVT08 current sense resistor today and enhance your project's power management with dependable, high-precision components.
Frequently Asked Questions
Where can I buy Ohmite LVT08R0015JER?
You can click on the BUY or RFQ button to purchase LVT08R0015JER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT08R0015JER?
You can download the LVT08R0015JER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT08R0015JER?
Ohmite
