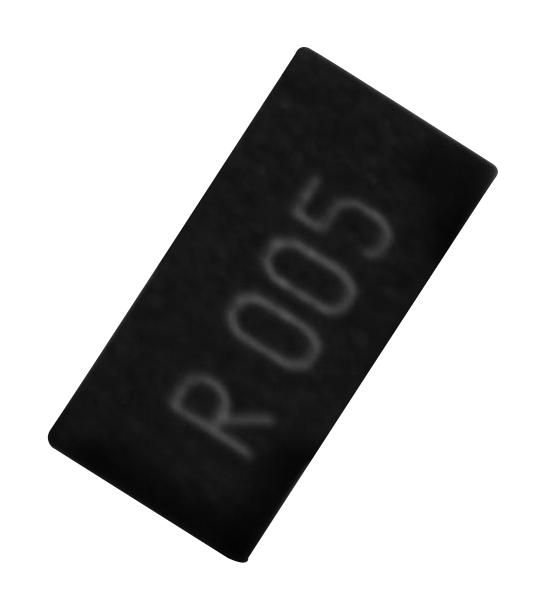

Ohmite LVT12R0010JER Low-Value Current Sense Resistor
The LVT series from Ohmite offers precision low-value current sense resistors with resistance ranging from 2mΩ to 20mΩ, featuring excellent TCR ratings down to 50ppm, tight tolerances as low as 1%, and robust epoxy resin coating. These resistors are suitable for high-accuracy current measurement applications, with operating temperatures from -55°C to 155°C and power ratings up to 1W depending on size. They meet UL standards, feature matte tin terminals, and are designed for reliable operation under thermal and mechanical stress.
Ohmite LVT12R0010JER Low-Value Current Sense Resistor Specifications:
- Resistance Range: 2mΩ to 20mΩ depending on size and TCR
- Power Ratings: 0.25W (0201), 0.33W (0402, 0603), 0.5W (0805), 1W (1206), 1W (1206)
- Resistance Tolerance: 1%, 2%, 3%, 4%
- Temperature Coefficient: +50, +75, +100, +150 ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Rated Ambient Temperature: +70°C
- Coating Material: Epoxy resin
- Terminal Material: Matte tin-plated copper alloy
- Resistive Value: 0.002Ω to 0.020Ω
- Package sizes: 0201, 0402, 0603, 0805, 1206
- Construction: Metal alloy resistor with epoxy coating
- Storage Conditions: 2 years airtight, +10°C to +40°C, humidity <75%
Buy the Ohmite Series Low Value Current Sense: LVT12R0010JER
Buy the Ohmite LVT12R0010JER online today and enjoy high-precision low-value current sensing with excellent TCR ratings, tight resistances, and reliable performance. Designed for demanding applications, these resistors offer tight tolerances of 1% and operate over a temperature range of -55°C to 155°C, ensuring stability and durability. Suitable for precision measurement in power supplies, instrumentation, and industrial electronics, this resistor series provides outstanding thermal and mechanical stability with a robust epoxy coating, making it a dependable choice for your electronics projects.
Get Ohmite LVT12R0010JER today—built for precision and long-lasting durability, perfect for high-accuracy current sensing in demanding electrical circuits.
Frequently Asked Questions
Where can I buy Ohmite LVT12R0010JER?
You can click on the BUY or RFQ button to purchase LVT12R0010JER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT12R0010JER?
You can download the LVT12R0010JER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT12R0010JER?
Ohmite
