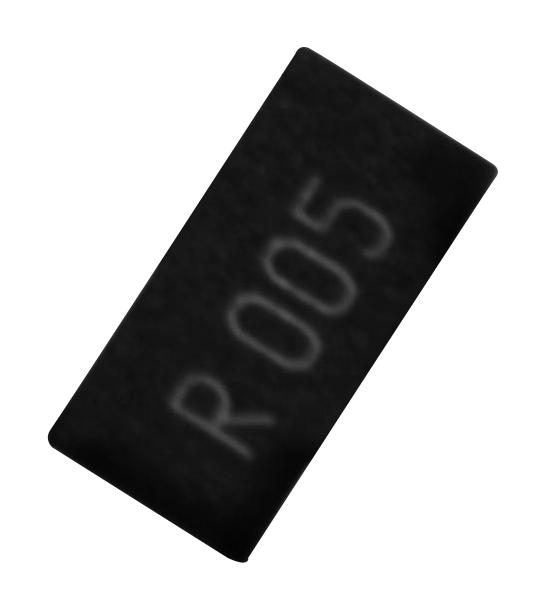

Ohmite LVT12R0050FER Current Sense Resistor
The Ohmite LVT series consists of metal alloy strip resistors designed for accurate current sensing applications. Offering low resistance values from 2m to 20m ohms, these resistors feature excellent TCR ratings down to 50ppm and tight tolerances as low as 1%. They are constructed with epoxy resin coating, stub terminals with 100% matte tin finish, and are rated for power dissipation up to 1.0W depending on size. Capable of operating from -55°C to +155°C, the LVT series is ideal for precise current measurement in a variety of electronic systems.
Ohmite LVT12R0050FER Current Sense Resistor Specifications:
- Resistance Range: 2m to 20m ohms
- Power Ratings: 0.33W (0402, 0603), 0.5W (0805), 1.0W (1206)
- Temperature Coefficient: 50, 75, 100, or 150 ppm/°C
- Resistance Tolerance: 1%, 2%, or 3%
- Operating Temp. Range: -55°C to +155°C
- Rated Ambient Temp: +70°C
- Coating Material: Epoxy resin
- Terminals: 100% matte tin
- Storage Conditions: 2 years airtight at +10°C to +40°C, humidity <75%
- Construction: Cu-alloy resistor with epoxy coating
- Solderability: Meets industry standards for soldering at 245°C for 3 seconds
- Mechanical Shock Resistance: 100G, 11ms, 5x
- Thermal Shock: Cycles between -55°C and +155°C
- Moisture Load Life: 60°C, 95% RH, 1000 hours
Buy the Buy Ohmite LVT Series Part Number R0025FER Online
Enhance your electronic designs with the Ohmite LVT series current sense resistor R0025FER. Designed for high precision, stability, and durability, these resistors provide low resistance options from 2m to 20m ohms with tight tolerances down to 1%. Engineered to operate across wide temperature ranges from -55°C to +155°C, they are suitable for critical current sensing in power supplies and measurement systems. Purchasing online ensures quick delivery and professional support for your demanding electronic applications.
Buy Ohmite LVT series current sense resistor R0025FER now and experience unmatched accuracy, thermal stability, and reliable performance in your electronic projects.
Frequently Asked Questions
Where can I buy Ohmite LVT12R0050FER?
You can click on the BUY or RFQ button to purchase LVT12R0050FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT12R0050FER?
You can download the LVT12R0050FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT12R0050FER?
Ohmite
