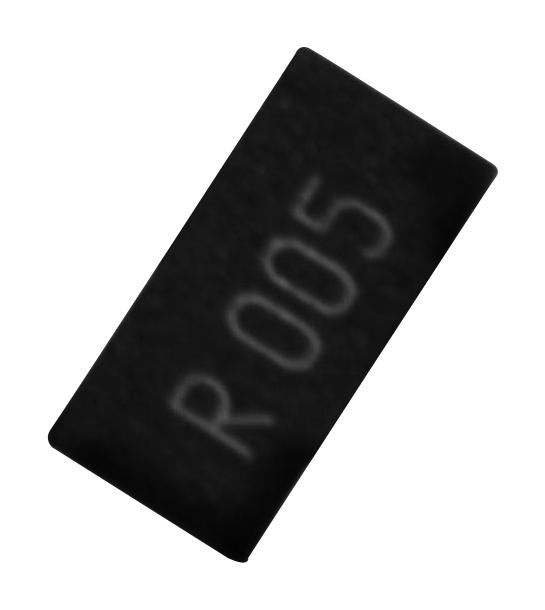

Ohmite LVT12R0150FER Low Value Current Sense Resistor
The Ohmite LVT series consists of high-precision metal alloy strip resistors designed for accurate current sensing applications. Offering low resistance values from 2mΩ to 20mΩ, these resistors feature impressive TCR ratings down to 50ppm, with tolerances as tight as 1%. Suitable for various power ratings up to 1W, they are built with epoxy resin coating, copper alloy terminals, and meet UL-94V-0 flame-retardant standards. Operating within -55°C to 155°C, their stable performance ensures reliability in demanding electronic circuits, especially where precise current measurement is critical.
Ohmite LVT12R0150FER Low Value Current Sense Resistor Specifications:
- Resistance Range: 2mΩ to 20mΩ
- Power Ratings: 0.33W (0402, 0603), 0.5W (0805), 1W (1206)
- TCR Ratings: Down to 50ppm/°C
- Resistance Tolerance: 1%, 2%, 3%
- Operating Temperature Range: -55°C to 155°C
- Ambient Temperature: +70°C rated
- Coating: Epoxy resin
- Terminals: 100% matte tin-plated copper alloy
- Flammability: UL 94V-0
- Derating: Power decreases at ambient temperatures above 70°C
- Solderability: Suitable for reflow at 275°C for 20 sec
- Tested for Moisture Load Life, Thermal Shock, Solder Heat Resistance, Mechanical Shock, and Board Bending
- Storage Conditions: Airtight, 2 years in environmental conditions of +10°C to +40°C, humidity <75%
Buy the Buy Ohmite Low Value Current Sense Part Number LVT12R0150FER Online
Order the Ohmite Low Value Current Sense Resistor LVT12R0150FER online today to ensure reliable current measurement in your electronic systems. With resistance options from 2mΩ to 20mΩ, this resistor provides excellent TCR stability down to 50ppm and a tight tolerance of 1%. Crafted with epoxy coating and copper alloy terminals, it withstands demanding thermal conditions from -55°C to 155°C. Delivered with UL-94V-0 flame-retardant standards, it is ideal for industrial, consumer, and automotive applications. Secure your supply and optimize your designs now for high-precision current sensing results.
Buy Ohmite LVT12R0150FER now and experience unmatched reliability and performance in precise current sensing applications.
Frequently Asked Questions
Where can I buy Ohmite LVT12R0150FER?
You can click on the BUY or RFQ button to purchase LVT12R0150FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part LVT12R0150FER?
You can download the LVT12R0150FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of LVT12R0150FER?
Ohmite
