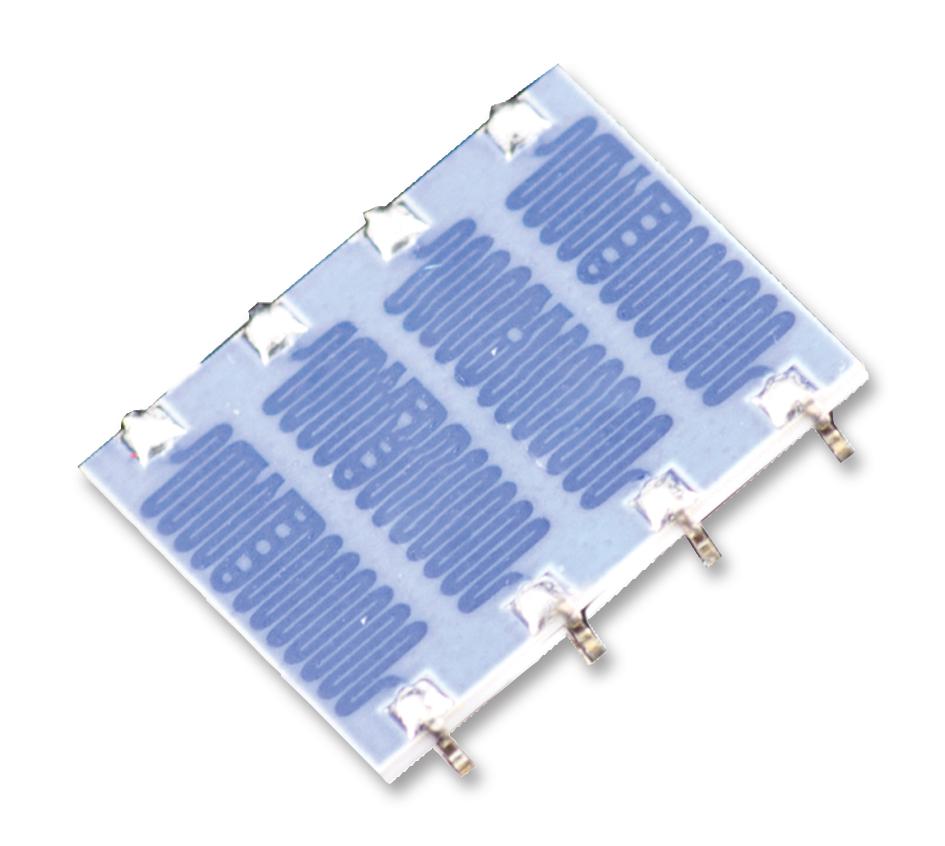

Ohmite MC41003JE High Voltage SMD Resistor Pack
Ohmite's MC4 Series provides a unique solution for high-voltage applications, integrating four SMD resistors into a single DIP package. This design enables designers to achieve various resistance values and configurations by connecting the resistors individually, in series, or in parallel. The flexible S-Bend terminals ensure solder joint integrity, while the standard parts offer immediate availability. Suitable for applications requiring high voltage and compact design, the MC4 series is supplied on tape and reel for automated placement, enhancing production efficiency.
Ohmite MC41003JE High Voltage SMD Resistor Pack Specifications:
- Series: MC4 Series
- Resistance Range: 200 ohms to 5,000M ohms
- Power Rating: 0.75W per resistor, 3.0W total
- Voltage Rating: 2500 VDC per resistor
- Tolerance: 5% to 20%
- Operating Temperature: -55°C to +180°C
- Resistance Power @25°C Max: 0.75W
- Maximum Operating Voltage: 2500 VDC
- Resistance Value: 100K ohms per resistor
- Standard Temperature Coefficient: 50PPM/°C or 100PPM/°C
- Dielectric Withstanding Voltage: 750V
- Insulation Resistance: >10,000M
- Thermal Shock: ±0.20%
- Load Life: ±1.0%
- Resistance to Solvents: No degradation of coating or marking
- Shock (Specified Pulse): ±0.25%
- Vibration, High Frequency: ±.020%
- Power Conditioning: ±0.50%
Buy the MC4-1003JE Ohmite High Voltage SMD Resistor Pack | myMectronic
Securely purchase the Ohmite MC4-1003JE high-voltage resistor pack online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite MC41003JE?
You can click on the BUY or RFQ button to purchase MC41003JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MC41003JE?
You can download the MC41003JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of MC41003JE?
Ohmite
