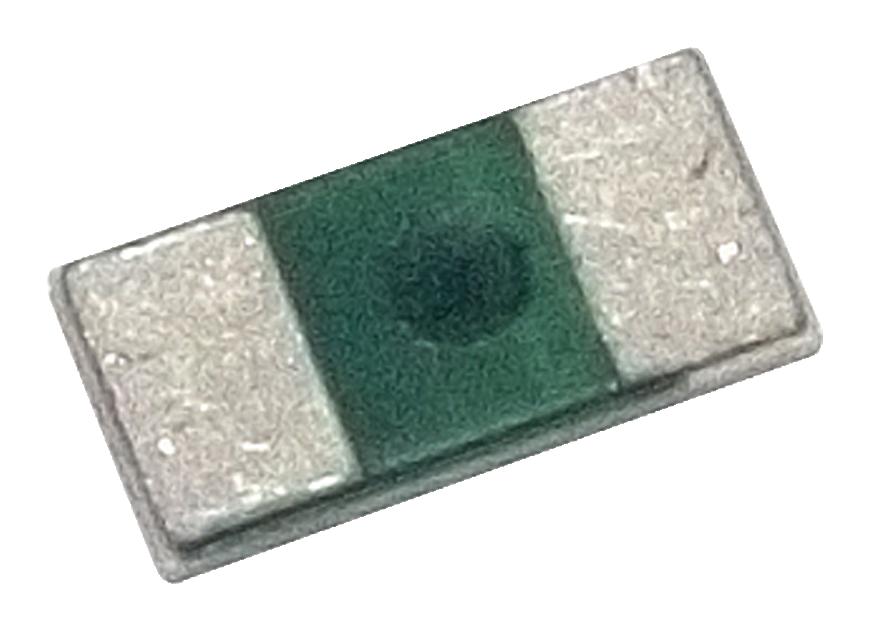

Ohmite MCS1320R025FER Current Sense Resistor
The MCS Series resistive metal alloy current sense resistors are designed for precise current measurement in industrial and power electronics applications. Crafted with resistive alloys like NiCu or MnCu, these SMD components feature low TCR (<50ppm/°C), ultra-low resistance values (0.00592 to 0.05022 ohms), and flame-retardant UL-94-V0 conformal coating. Suitable for DC/DC converters, motor controllers, automotive electronics, and white goods, they provide reliable thermal dissipation, low inductance, and high stability under various environmental conditions. Their robust construction ensures longevity in demanding electronic systems.
Ohmite MCS1320R025FER Current Sense Resistor Specifications:
- Resistance Range: 0.0052 to 0.052 ohms
- Power Rating (@70°C): 0.75W, 1W, 2W
- Resistance Tolerance: 1%
- TCR (ppm/°C): <50ppm/°C
- Material: NiCu or MnCu resistive alloy; Cu terminal with Pb-free termination (60% Sn, 40% Ni)
- Substrate: Alumina 96% alumina, with thermally dissipating protective layer
- Flame-retardant epoxy coat (UL-94-V0)
- Recommended solder profile: Min. 220°C, max. 260°C with specific preheating and cooling steps
- Ambient temperature range: -55°C to +155°C
- Max. soldering temperature: 260°C for 60 sec
- Low inductance and thermo EMF (<50µV/°C)
- Designed for high stability and reliability in electronic circuits
Buy the Buy Ohmite MCS Series Current Sense Part Number MCS1320R025FER Online
Purchase the Ohmite MCS1320R025FER current sense resistor online to ensure precise current measurement in your electronic projects. Known for its low resistance values, tight tolerance, and robust construction, it performs reliably in industrial, automotive, and power electronics. Its flame-retardant coating and low TCR make it suitable for high-temperature environments, providing long-term stability and accuracy. Simplify your procurement process by ordering online and enjoy fast delivery of this essential precision resistor for your circuit designs and power management systems.
Order your Ohmite MCS1320R025FER current sense resistor today and enhance your power measurement accuracy with this ultra-low resistance, reliable component.
Frequently Asked Questions
Where can I buy Ohmite MCS1320R025FER?
You can click on the BUY or RFQ button to purchase MCS1320R025FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MCS1320R025FER?
You can download the MCS1320R025FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of MCS1320R025FER?
Ohmite
