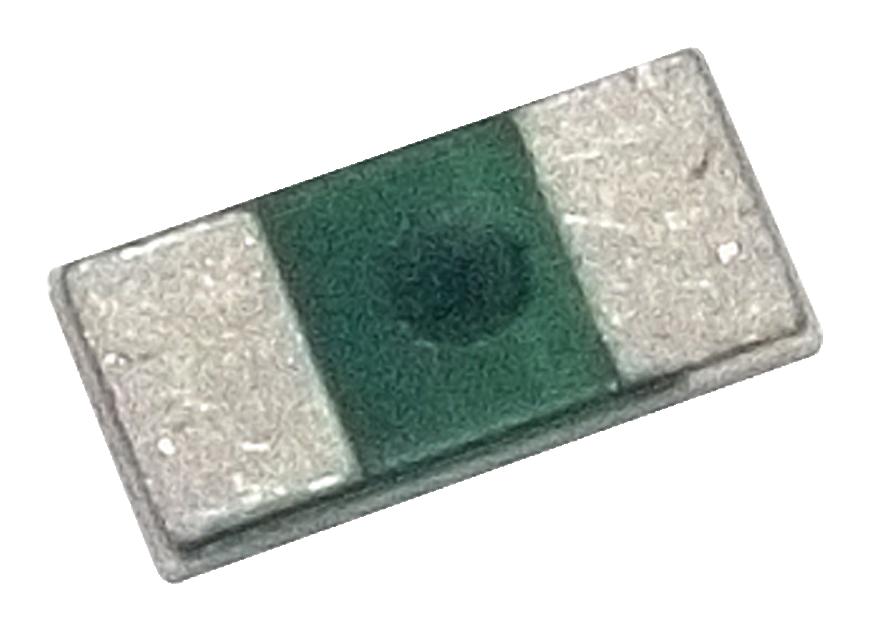

Ohmite MCS1320R050FER Current Sense Resistor
The MCS Series resistive metal alloy current sense devices are designed for precise current measurement in power electronics, industrial equipment, and automotive applications. Featuring ultra-low resistance values ranging from 0.00592 to 0.05022 ohms, these SMD components utilize resistive alloys like NiCr20AISi or CuMnNi for low TCR (<50ppm/°C), ensuring accurate performance over temperature variations. Encased in UL-94-V0 flame-retardant epoxy and mounted on alumina substrates, they provide excellent thermal dissipation, low inductance, and reliability. Suitable for power supplies, motor controllers, and telecommunication circuits, they meet stringent testing standards and are RoHS compliant.
Ohmite MCS1320R050FER Current Sense Resistor Specifications:
- Resistance Range: 0.00592 ~ 0.05022 ohms
- Power Ratings: 0.75W, 1W, 2W at 70°C
- Resistance Tolerance: 1%
- Material: NiCr20AISi or CuMnNi resistive alloys
- TCR: Less than 50 ppm/°C
- Temperature Coefficient: <50 ppm/°C
- Dimensions vary by model (e.g., MCS1320, MCS1632, MCS3264)
- Substrate: Alumina, 96% alumina ceramic
- Encapsulation: Flame-retardant UL-94 V0 epoxy coating
- Terminal: Cu with Pb-free (Sn-Ni) termination
- Solder Profile: Max 260°C for 45 seconds
- Resistance Stability: Tested under overload, high temp, damp load, and thermal shock conditions
- RoHS Compliant and suitable for surface-mount assembly
Buy the Buy Ohmite MCS Series Metal Element Current Sense Part Number MCS1320R050FER Online
Bring home the high-precision current sensing solution from the MCS Series by Ohmite. Designed for power electronics, industrial equipment, and automotive applications, these resistors feature ultra-low resistance values from 0.00592 to 0.05022 ohms. Encased in UL-94 V0 flame-retardant epoxy, they provide excellent thermal management and stability under demanding conditions. Ideal for power supplies, motor controllers, and telecommunication circuits, they ensure accurate current measurement and long-term reliability—available online for quick and convenient procurement.
Buy Ohmite MCS1320R050FER now and experience unmatched reliability and precision in current sensing with low resistance technology.
Frequently Asked Questions
Where can I buy Ohmite MCS1320R050FER?
You can click on the BUY or RFQ button to purchase MCS1320R050FER from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MCS1320R050FER?
You can download the MCS1320R050FER datasheet or visit the Ohmite website for support.
Who is the manufacturer of MCS1320R050FER?
Ohmite
