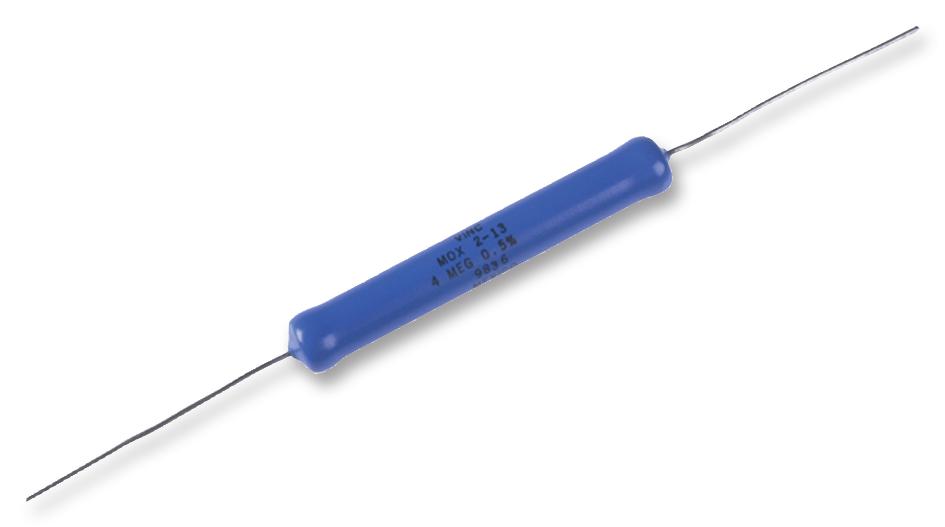

Ohmite MOX1N131007JE High Voltage Precision Resistor
The OHMITE Maxi-Mox resistor is a versatile and robust solution for demanding industrial applications requiring high voltage and power handling capabilities. These precision thick film resistors are ideal for HV power supplies, power distribution networks, medical instrumentation, and avionics systems. They offer a wide resistance range, voltage ratings up to 50KV, and power ratings up to 12.5 watts, ensuring reliable performance in challenging environments. The resistors are available with silicone or epoxy coatings to suit various operating conditions and are designed for non-inductive operation when required. OHMITE's Maxi-Mox series provides a dependable solution for critical circuit applications.
Ohmite MOX1N131007JE High Voltage Precision Resistor Specifications:
- Resistance Range: 250Ω to 1 Teraohm
- Power Rating: 2.0W to 12.5W
- Voltage Rating: 10KV to 50KV
- Capacitance: 0.30 to 0.75 pf
- Tolerances: 0.1% to 20%
- Core Material: Alumina
- Resistor Type: Thick Film
- Terminal Composition: 96% Sn, 3.5% Ag, 0.5% Cu
- Operating Temperature: -55°C to +210°C
- Temperature Coefficient of Resistance: < 2PPM/Volt
- Humidity: ±0.25%
- Dielectric Withstanding Voltage: ±0.25%
- Insulation Resistance: >10,000 MΩ
- Thermal Shock: ±0.20%
- Load Life: ±1.0%
- Resistance to Solvents: Acceptable
- Terminal Strength: ±0.25%
- Shock: ±0.25%
- Vibration: ±0.20%
- Power Conditioning: ±0.50%
