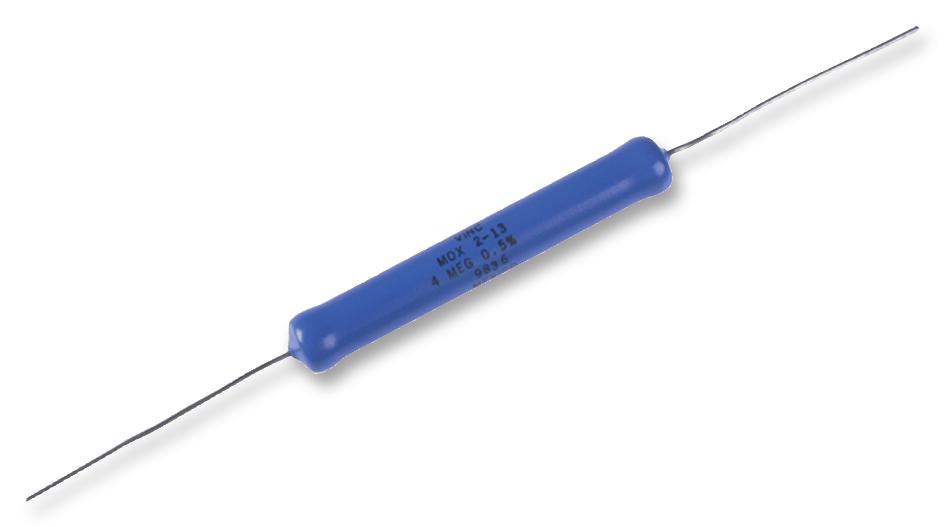

Ohmite MOX1N135005FE High Voltage Precision Resistor
OHMITE's Maxi-Mox resistors are versatile components ideal for industrial applications requiring high power and high voltage switching, industrial control, and high voltage current limiting. These precision thick film resistors offer wide resistance ranges, voltage ratings up to 50KV, and power ratings up to 12.5 watts. They are available with silicone or epoxy coatings and are suitable for HV power supplies, power distribution, medical instrumentation, and avionics. The resistors are designed for reliable performance in demanding environments and offer various tolerance options to meet specific application requirements.
Ohmite MOX1N135005FE High Voltage Precision Resistor Specifications:
- Resistance Range: 250Ω to 1 Teraohm
- Power Rating: 2.0W to 12.5W
- Voltage Rating: 10KV to 50KV
- Capacitance: 0.30 to 0.75 pf
- Tolerances: 0.1% to 20%
- Core Material: Alumina
- Resistor Type: Thick Film
- Terminal Composition: 96% Sn, 3.5% Ag, 0.5% Cu
- Operating Temperature: -55°C to +210°C
- Temperature Coefficient of Resistance: < 2PPM/Volt
- Humidity: ±0.25%
- Dielectric Withstanding Voltage: ±0.25%
- Insulation Resistance: >10,000 MΩ
- Thermal Shock: ±0.20%
- Load Life: ±1.0%
- Resistance to Solvents: Acceptable for High Reliability Series only
- Terminal Strength: ±0.25%
- Shock: ±0.25%
- Vibration: ±0.20%
- Power Conditioning: ±0.50%
- A max: 1.120” / 28.45 (for 2.5W)
- B max: 0.310” / 7.87 (for 2.5W)
- lead dia: 0.032” typ.
Buy the MOX-1N-135005FE OHMITE High Voltage Precision Resistor | myMectronic
Purchase the OHMITE MOX-1N-135005FE resistor securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite MOX1N135005FE?
You can click on the BUY or RFQ button to purchase MOX1N135005FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MOX1N135005FE?
You can download the MOX1N135005FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of MOX1N135005FE?
Ohmite
