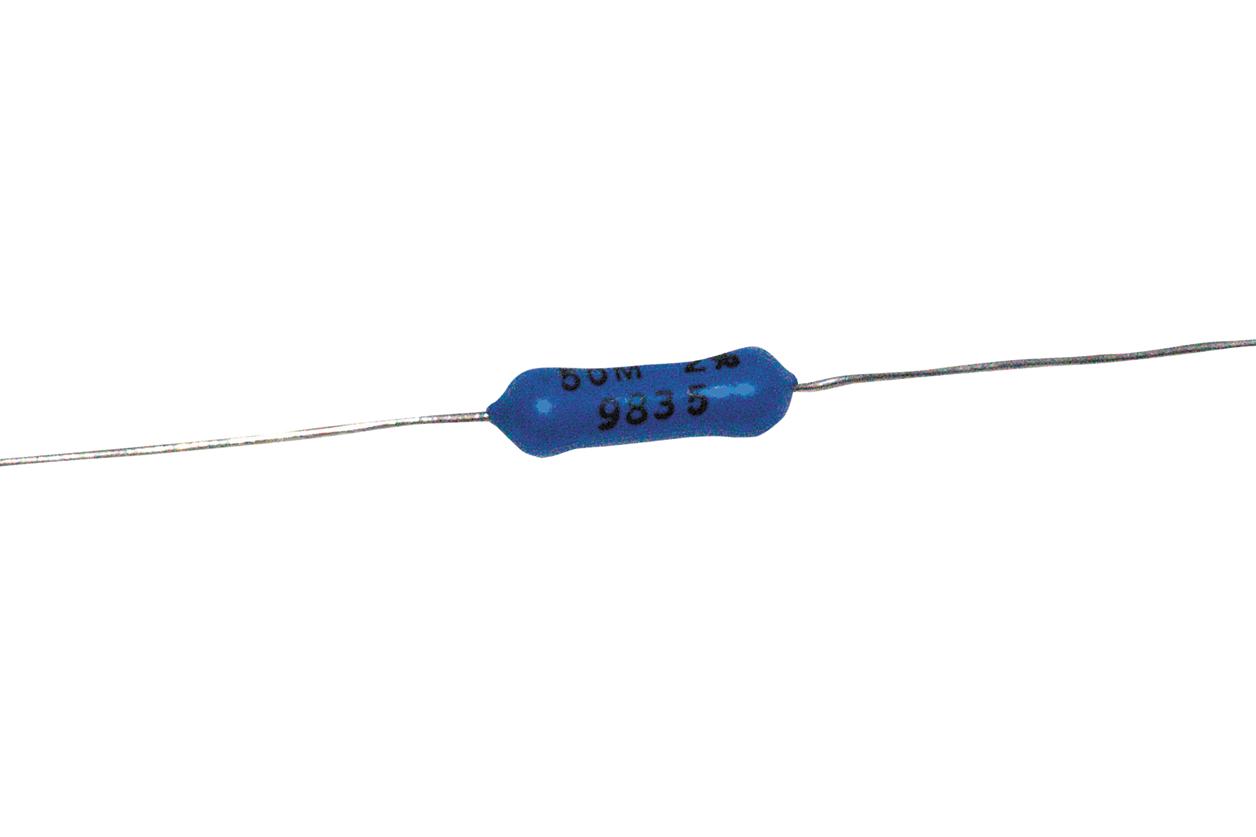

Ohmite MOX200001005FE Precision Thick Film Resistor
The Ohmite Mini-Mox resistor series is a versatile solution for precision circuits requiring high voltage and resistance. These thick film, axial terminal resistors are designed for applications such as avionics, medical electronics, current pulse limiters, and vacuum/space applications. They offer wide resistance ranges, tight tolerances down to 0.1%, and are epoxy coated for protection. The Mini-Mox series is RoHS compliant and available in both 0.25W and 0.5W power ratings, catering to a broad range of design needs. The resistor's metal oxide resistive element and alumina core contribute to its stability and performance across a wide temperature range.
Ohmite MOX200001005FE Precision Thick Film Resistor Specifications:
- Resistance Range: 500K to 1,500MΩ
- Power Rating: 0.25W
- Voltage Rating: 500V
- Tolerance: 0.1% to 20%
- Coating: Epoxy
- Core: Alumina
- Terminals: Solder-coated axial (96% Sn, 3.5% Ag, 0.5% Cu)
- Operating Temperature: -55°C to +155°C
- Max Overload Voltage (MOX200): 1,000V
- Max Overload Voltage (MOX300): 1,500V
- Max Pulse Voltage (MOX200): 1,500V
- Max Pulse Voltage (MOX300): 3,000V
- Temperature Coefficient of Resistance: 100 PPM/°C (500K-100MΩ), 200 PPM/°C (101M-1000MΩ), 300 PPM/°C (1001M-1500MΩ)
- Short Time Overload: ±0.5% max. (Rated Power x2.5, 5 sec)
- Resistance to Soldering Heat: ±0.5% max. (260°C ±5°C, 10 ±1 sec)
- Temperature Cycling: ±0.5% max. (-55°C/+155°C, 5 cycles)
- Withstanding Voltage: ±0.5% max. (500 VDC, 60 ±10 sec)
- Insulation Resistance: 10,000MΩ or more (500 VDC)
- Moisture Resistance: ±1.5% max. (40°C ±2°C, 90-95%RH, 1000 hr)
- Load Life Resistance: ±2% max. (70°C ±3°C, 1000 hr)
Buy the MOX-200001005FE Ohmite Precision Thick Film Resistor | myMectronic
Purchase the Ohmite MOX-200001005FE Mini-Mox resistor securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite MOX200001005FE?
You can click on the BUY or RFQ button to purchase MOX200001005FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MOX200001005FE?
You can download the MOX200001005FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of MOX200001005FE?
Ohmite
