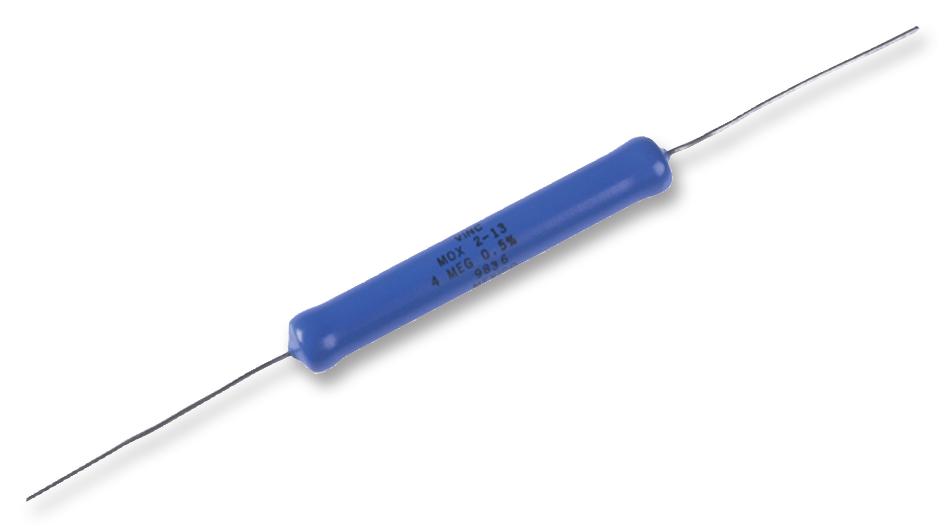

Ohmite MOX2N131006FE High Voltage Precision Resistor
OHMITE's Maxi-Mox resistors are versatile components ideal for industrial applications requiring high power and high voltage switching, industrial control, and high voltage current limiting. These precision thick film resistors offer wide resistance ranges, voltage ratings up to 50KV, and power ratings up to 12.5 watts. They are available with silicone or epoxy coatings and are suitable for HV power supplies, power distribution, medical instrumentation, and avionics. The resistors are designed for reliable performance in demanding environments and offer various tolerance options to meet specific application requirements. Consult factory for tighter voltage coefficients.
Ohmite MOX2N131006FE High Voltage Precision Resistor Specifications:
- Resistance Range: 250Ω to 1 Teraohm
- Power Rating: 2.0W to 12.5W
- Voltage Rating: 10KV to 50KV
- Capacitance: 0.30 to 0.75 pf
- Tolerances: 0.1% to 20%
- Core Material: Alumina
- Resistor Type: Thick Film
- Terminal Composition: 96% Sn, 3.5% Ag, 0.5% Cu
- Operating Temperature: -55°C to +210°C
- Temperature Coefficient of Resistance: < 2PPM/Volt
- Humidity: ±0.25%
- Dielectric Withstanding Voltage: ±0.25%
- Insulation Resistance: >10,000 MΩ
- Thermal Shock: ±0.20%
- Load Life: ±1.0%
- Resistance to Solvents: Acceptable
- Terminal Strength: ±0.25%
- Shock: ±0.25%
- Vibration: ±0.20%
- Power Conditioning: ±0.50%
- A max: 1.120” / 28.45 (for 2.5W)
- B max: 0.310” / 7.87 (for 2.5W)
- lead dia: 0.032” typ.
