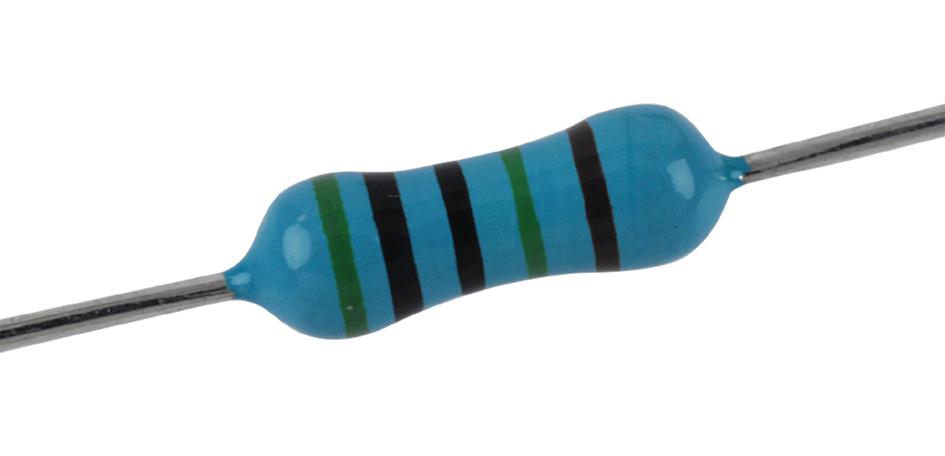

Ohmite MOX300005005FE Precision Thick Film Resistor
The Ohmite MOX-300005005FE Mini-Mox resistor is a versatile component designed for precision circuits requiring high voltage and resistance. It boasts a wide resistance range, epoxy coating for environmental protection, and an alumina core for thermal stability. Applications include avionics, medical electronics, current pulse limiters, and vacuum/space applications. With tolerances down to 1%, the Mini-Mox resistor ensures accuracy in demanding environments. It is RoHS compliant and available in tape and reel packaging for automated assembly.
Ohmite MOX300005005FE Precision Thick Film Resistor Specifications:
- Resistance Range: 500K to 2,500M Ohms
- Power Rating: 0.50W
- Voltage Rating: 1,000V
- Tolerance: 0.1% to 20%
- Core Material: Alumina
- Coating: Epoxy
- Terminals: Solder-coated axial (96% Sn, 3.5% Ag, 0.5% Cu)
- Operating Temperature: -55°C to +155°C
- Max Overload Voltage: 1,500V
- Max Pulse Voltage: 3,000V
- Short Time Overload: ±0.5% max.
- Resistance to Soldering Heat: ±0.5% max.
- Temperature Cycling: ±0.5% max.
- Withstanding Voltage: ±0.5% max.
- Insulation Resistance: 10,000MΩ or more
- Moisture Resistance: ±1.5% max.
- Load Life: ±2% max.
Buy the MOX-300005005FE Ohmite Precision Thick Film Resistor | myMectronic
Purchase the Ohmite MOX-300005005FE Mini-Mox resistor securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite MOX300005005FE?
You can click on the BUY or RFQ button to purchase MOX300005005FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MOX300005005FE?
You can download the MOX300005005FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of MOX300005005FE?
Ohmite
