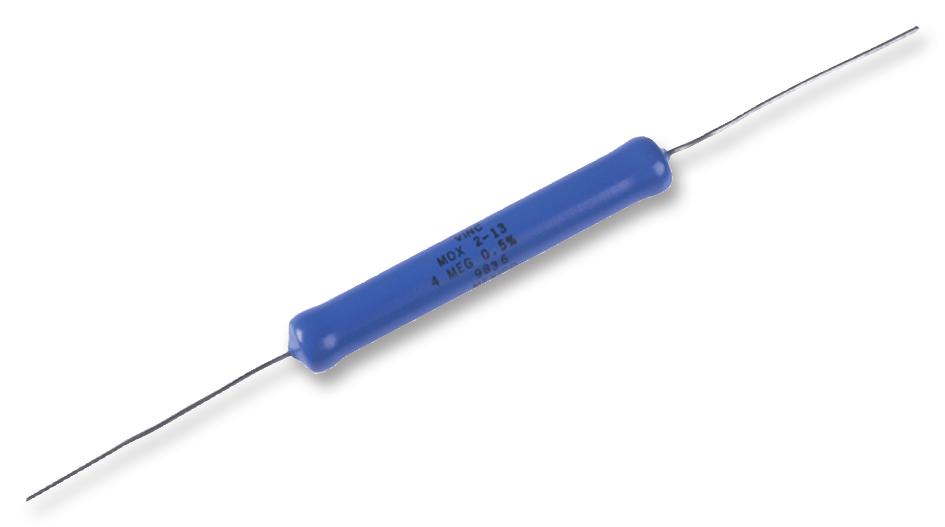

Ohmite MOX3N131006FE High Voltage Precision Resistor
The OHMITE Maxi-Mox MOX-3N-131006FE resistor is a versatile and robust component ideal for demanding industrial applications. It offers high voltage and power handling capabilities, making it suitable for HV power supplies, power distribution, medical instrumentation, and avionics. Available with silicone or epoxy coating and various resistance ranges and tolerances, this resistor provides reliable performance in harsh environments. Its axial terminal design ensures easy integration into various circuit designs.
Ohmite MOX3N131006FE High Voltage Precision Resistor Specifications:
- Resistance Range: 750Ω to 1,000,000M
- Power Rating: 7.5W @70°C
- Voltage Rating: 30.0KV
- Available Tolerances: 1% to 20%
- Capacitance: 0.50 pf
- Core Material: Alumina
- Resistor Type: Thick Film
- Terminal Composition: 96% Sn, 3.5% Ag, 0.5% Cu
- Resistance Range (overall): 250Ω to 1 Teraohm
- Power Rating (overall): 2.0W to 12.5W
- Voltage Rating (overall): 10KV to 50KV
- Tolerance: 0.5% to 20%
- Operating Temperature: -55°C to +210°C
- Temperature Coefficient of Resistance: < 2PPM/Volt
- Dielectric Withstanding Voltage: 750V
- Insulation Resistance: >10,000 MΩ
- Terminal Size: 0.032" typ.
- A Max (MOX-3-12): 3.120" / 79.24
- B Max (MOX-3-12): 0.310" / 7.87
- Power (MOX-3-12): 7.5W
Buy the MOX-3N-131006FE OHMITE High Voltage Precision Resistor | myMectronic
Purchase the OHMITE MOX-3N-131006FE resistor securely and efficiently through our online platform.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite MOX3N131006FE?
You can click on the BUY or RFQ button to purchase MOX3N131006FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part MOX3N131006FE?
You can download the MOX3N131006FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of MOX3N131006FE?
Ohmite
