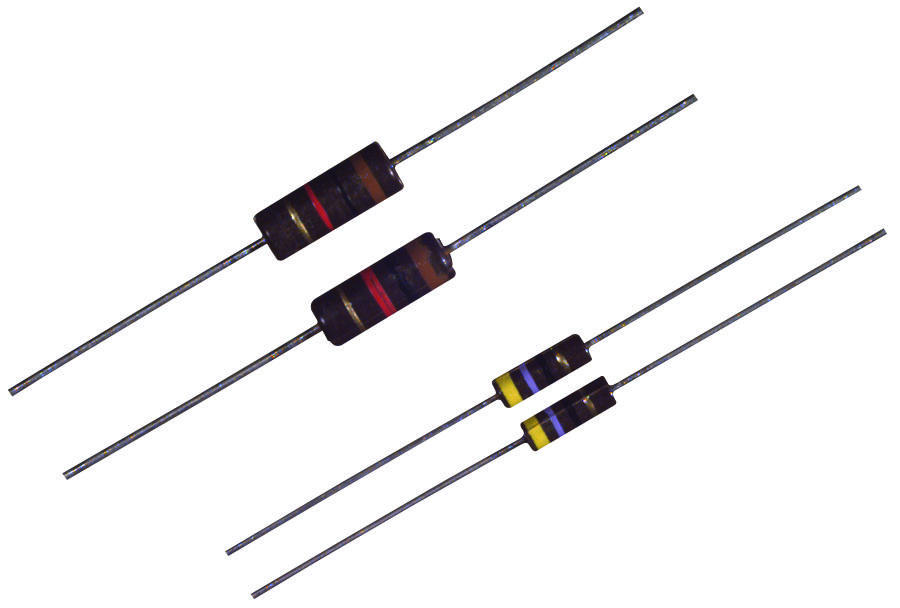

Ohmite OD202JE Carbon Composition Resistor
OHMITE's Little Demon OD202JE carbon composition resistors are designed for exceptional strength and reliability. Manufactured through a molding process that integrates terminals, insulation, and the resistive element, these resistors offer low noise, rapid heat dissipation, and high-temperature stability. Their rugged construction and high surge capabilities make them suitable for demanding industrial applications, including those requiring replacements for “Mil” RC07, RC20, and RC32 types. Proper storage and handling are recommended to maintain optimal performance and minimize resistance shift during soldering.
Ohmite OD202JE Carbon Composition Resistor Specifications:
- Series: OD/OF
- Mil-R-11 Type: RC07/RC20
- Wattage: 0.25/0.50
- Ohms: 2.2Ω - <100KΩ / 100K - 5.6M
- Tolerance: ±5% / ±10%
- Max Voltage: 250/350
- Dielectric VAC: 500/700
- Body: Molded Phenolic
- Pulse Power Capability: 10,000
- Derating: Linearly from 100% @ +70°C to 0% @ 130°C
- Terminals: Solder-coated copper terminal
- Length max: 1.135" / 28.83mm
- Diameter max: 0.276" / 7.0mm
- Lead Dia: 0.098" / 2.5mm
- Lead Dia2: 0.024/0.60
- Storage Temperature: 5° to 35°C
- Relative Humidity: <60%
- Packaging: Sealed poly bags with desiccant
- Tape/Reel OD: 5000/3000
- Reel size (mm): 260
- Qty./carton: 40,000 / 24,000
- Gross carton wt. (kg): 10/16
- Carton size(m3): 0.03/0.05
- Ammo Box OD: 2000
- Ammo Box OF: 2000
- Tape width (mm): 52
Buy the OD202JE OHMITE Carbon Composition Resistor | myMectronic
Securely purchase the OHMITE OD202JE resistor online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy Ohmite OD202JE?
You can click on the BUY or RFQ button to purchase OD202JE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part OD202JE?
You can download the OD202JE datasheet or visit the Ohmite website for support.
Who is the manufacturer of OD202JE?
Ohmite
