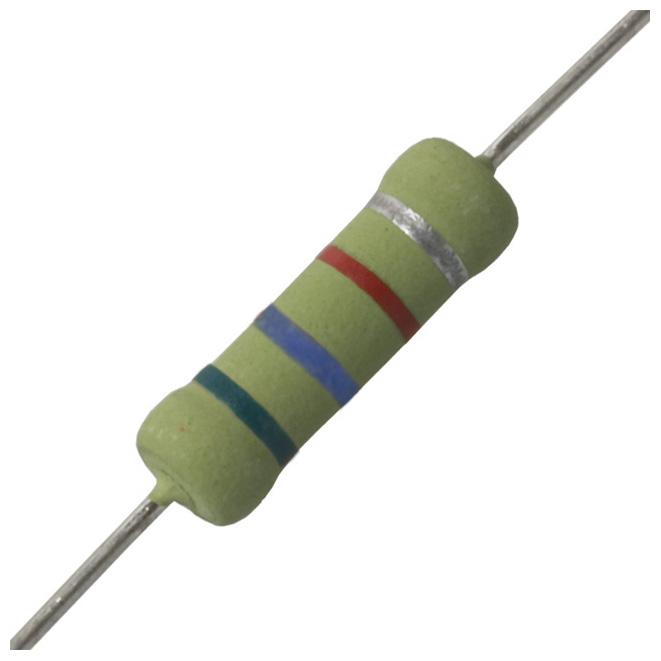

Ohmite OY154KE Ceramic Composition Resistor
The OHMITE OX/OY Series ceramic composition resistors are engineered for demanding applications requiring surge resistance, high peak power, or high energy handling. These resistors are a robust alternative to carbon composition resistors, often difficult to source, and excel in high-voltage power supplies, R-C snubber circuits, and inrush limiters. Their ceramic composition ensures stability and reliability under harsh conditions, making them suitable for a wide range of industrial and electronic applications. The OY154KE, specifically, offers a 2-watt power rating and a 10% tolerance, providing a dependable solution for critical circuit protection and power management.
Ohmite OY154KE Ceramic Composition Resistor Specifications:
- Watts: 2
- Resistance range: 3.3Ω-1M
- Joules max: 80
- Max working volts: 400
- Terminals: Pb-free solder-coated axial
- Coating: Silicone ceramic
- Derating: Linear from 100% @ +70°C to 0% @ +200°C
- Operating Temp: -40°C to +220°C
- Tolerance: ±10%
- Power Rating: Based on 70°C free air rating
- Temperature Coefficient: -1300 ±300ppm/°C
- Life Test: MIL-STD-202, Method 108: ±5%
- Short Time Overload: 2x rated V, 5 sec ON @ 70°C: ±(2% +0.05Ω)
- Resistance to Pulse: ±5%
- Moisture Resistance: 1000 hrs @ 40°C, 90 - 95% RH: ±5%
- Dielectric Strength: 500V
- Max Overload Voltage: 600V
- Max Pulse Voltage: 20KV
- Pulse Tolerance: 1240V @ 52µF (OX), 1640V @ 52µF (OY)
