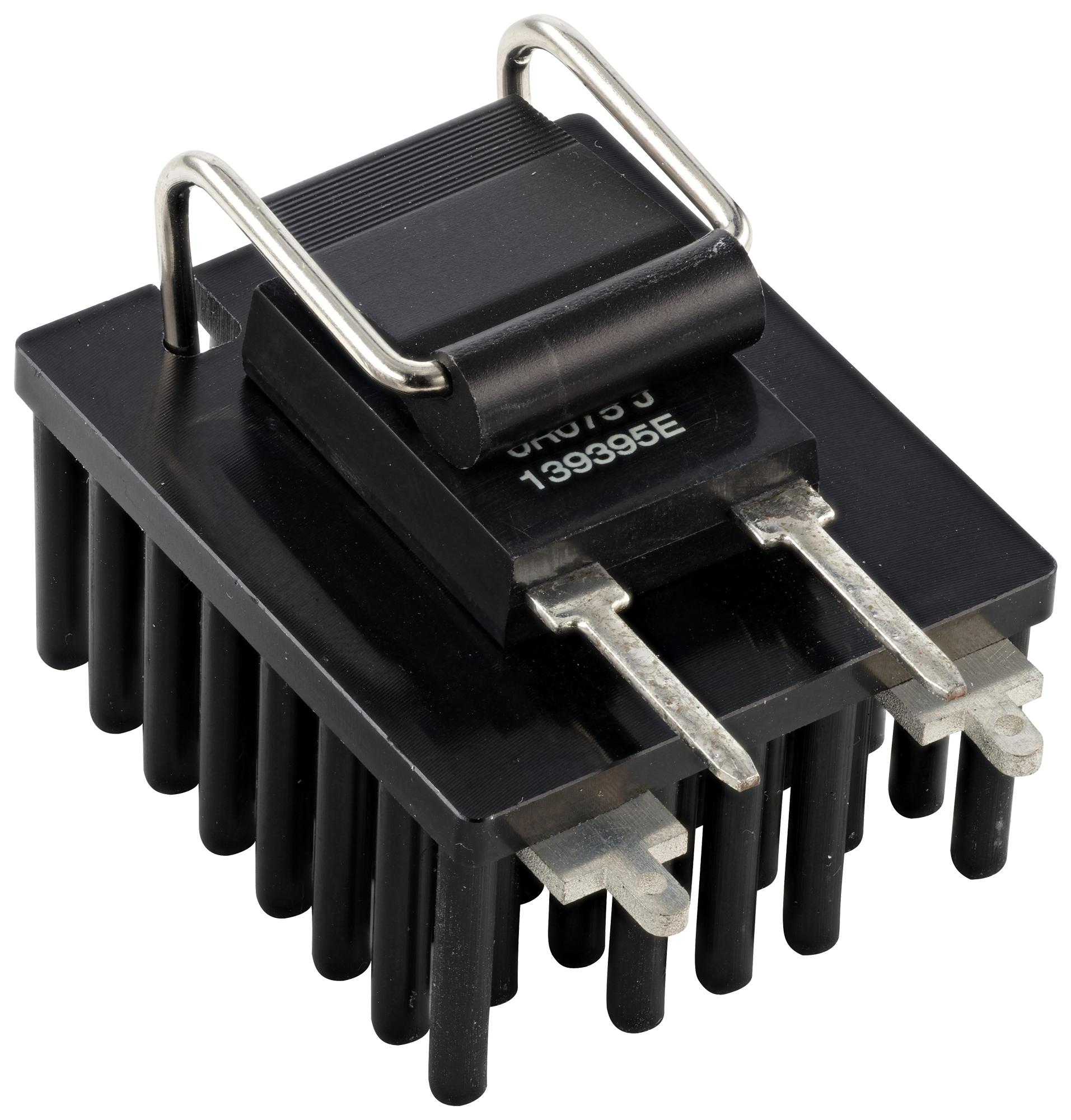

Ohmite PAT2X38E Forged Pin Fin Heatsink
The forged pin-fin heatsink is designed for TO-220, TO-247, and TO-264 devices, offering efficient forced convection cooling through a large surface area. Its universal cam clip system ensures easy mounting, and it is suitable for high power, small-size electronic packaging (1U or 2U). Made of high-quality materials, the heatsink features a compact design with excellent thermal performance, ideal for demanding electronic cooling applications with natural or forced airflow, enhancing thermal management and device reliability.
Ohmite PAT2X38E Forged Pin Fin Heatsink Specifications:
- Surface Area: 13.4 in² / 8,675 mm²
- Weight: 0.7 oz / 20 g
- Length: 1.18 in / 30 mm
- Thermal Resistance: 7.46 °C/W (open space @14 W)
- Material: Forged aluminum alloy AL1070
- Finish: Anodized
- Mounting System: Universal cam clip for TO-220, TO-247, TO-264
- Application: Thermal management for high power electronics
- Designed for forced convection cooling in multiple directions
Buy the Ohmite PAT2X38E – Reliable Heatsink for Industrial Applications
Purchase the Forged Pin Fin Heatsink from Ohmite now—engineered for optimal thermal performance and ease of installation in high power electronic equipment. Its universal cam clip system ensures secure mounting on TO-220, TO-247, and TO-264 devices, making maintenance and assembly straightforward. Designed for compact packaging, this heatsink provides excellent forced convection cooling, reducing thermal resistance and extending device lifespan. Order today to enhance your cooling solutions with a durable, reliable heatsink specially suited for demanding electronic applications requiring efficient heat dissipation.
Get Ohmite PAT2X38E today—built for high power thermal management in small electronic enclosures.
Frequently Asked Questions
Where can I buy Ohmite PAT2X38E?
You can click on the BUY or RFQ button to purchase PAT2X38E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PAT2X38E?
You can download the PAT2X38E datasheet or visit the Ohmite website for support.
Who is the manufacturer of PAT2X38E?
Ohmite
