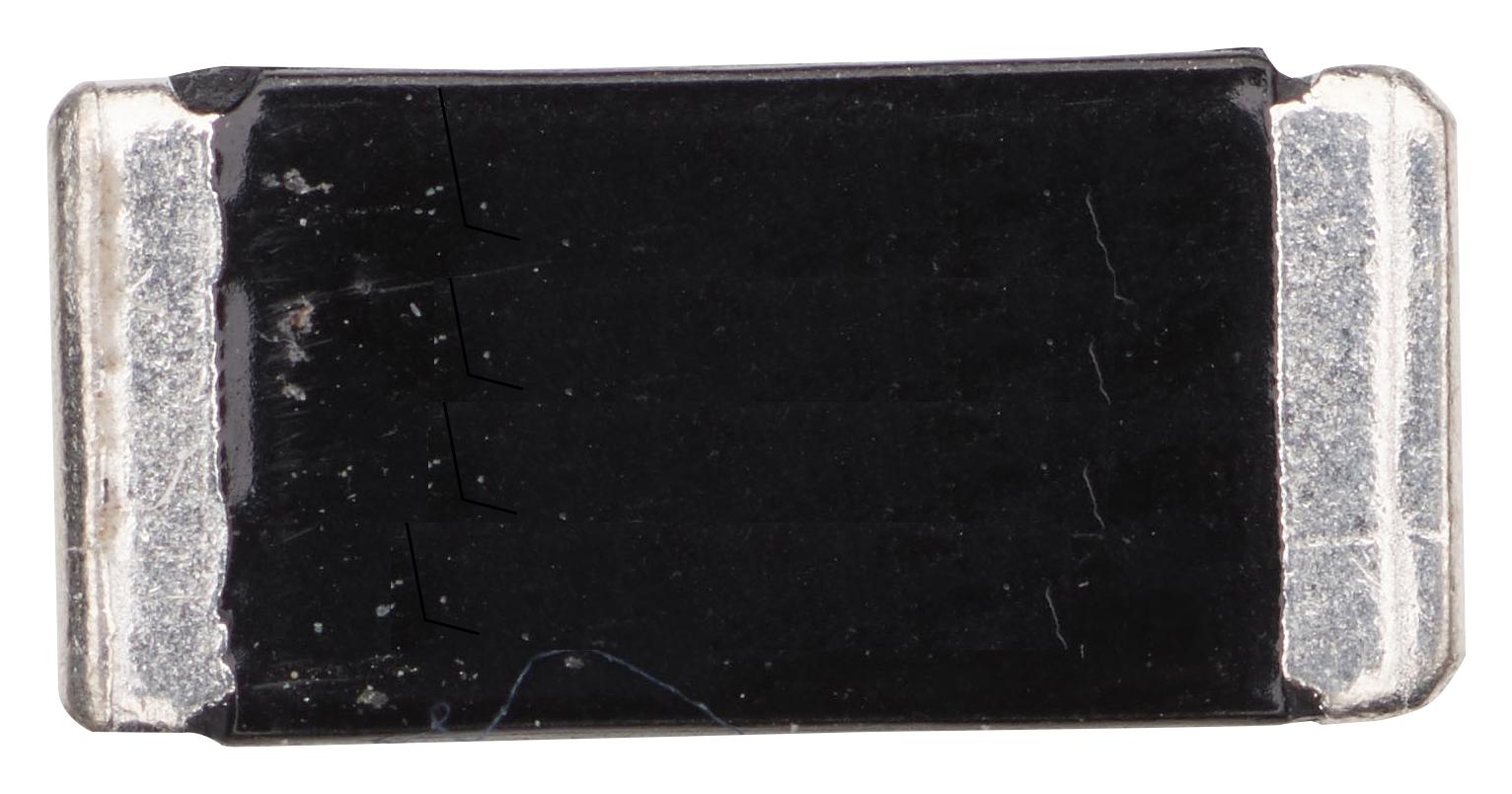

Ohmite PCS1206DR0500ET Low Resistance Chip Resistor
The PCS1206 series low resistance chip resistor offers exceptional precision, ultra-low resistance down to 0.5mΩ, and excellent stability for current sensing and voltage division. Designed for high current applications, it features low TCR of +50ppm and RoHS compliance. Available in various resistance values up to 50mΩ, it withstands overloads and is suitable for high-temperature environments up to +170°C. Its construction includes lead-free materials, overcoat protection, and supports reflow soldering, wave soldering, and temperature cycling tests, ensuring reliability in demanding electronic circuits.
Ohmite PCS1206DR0500ET Low Resistance Chip Resistor Specifications:
- Resistance Range: 1mΩ to 50mΩ, up to 500mΩ in certain models
- Power Rating: 1W, 2W, 4W depending on series and model
- Max. Overload Current: 44.72A for PCS1206, 63.25A for PCS2512, 54.77A for PCS2728
- Operating Temperature Range: -55°C to +170°C
- Resistance TCR: +50ppm
- Resistance Tolerance: ±1%, ±0.5%, ±1% depending on model
- Material: MnCuSn, FeCrAl with RoHS compliant lead-free finish
- Soldering: Compatible with reflow, wave, and flow soldering, peaks at 250°C for 250 seconds
- Packaging: Tape and reel, 4,000 to 5,000 pieces per reel
- Additional features: Excellent long term stability, halogen free, RoHS compliant
Buy the Omnite Series PCS1206 Low Resistance Chip Resistor: PCS1206DR0500ET
Purchase the Omnite PCS1206DR0500ET low resistance chip resistor online today. Designed for high precision and stability, it offers resistance down to 0.5mΩ with up to 1W power rating. Perfect for current sensing, voltage division, and demanding electronic applications, this RoHS compliant resistor withstands overloads, high temperatures up to +170°C, and reflow soldering. Ensure reliable electrical performance in your circuit designs by ordering now for quick delivery and excellent long-term stability.
Get Omnite PCS1206DR0500ET today—built for precision, durability, and high current sensing in your electronic projects.
Frequently Asked Questions
Where can I buy Ohmite PCS1206DR0500ET?
You can click on the BUY or RFQ button to purchase PCS1206DR0500ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PCS1206DR0500ET?
You can download the PCS1206DR0500ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of PCS1206DR0500ET?
Ohmite
