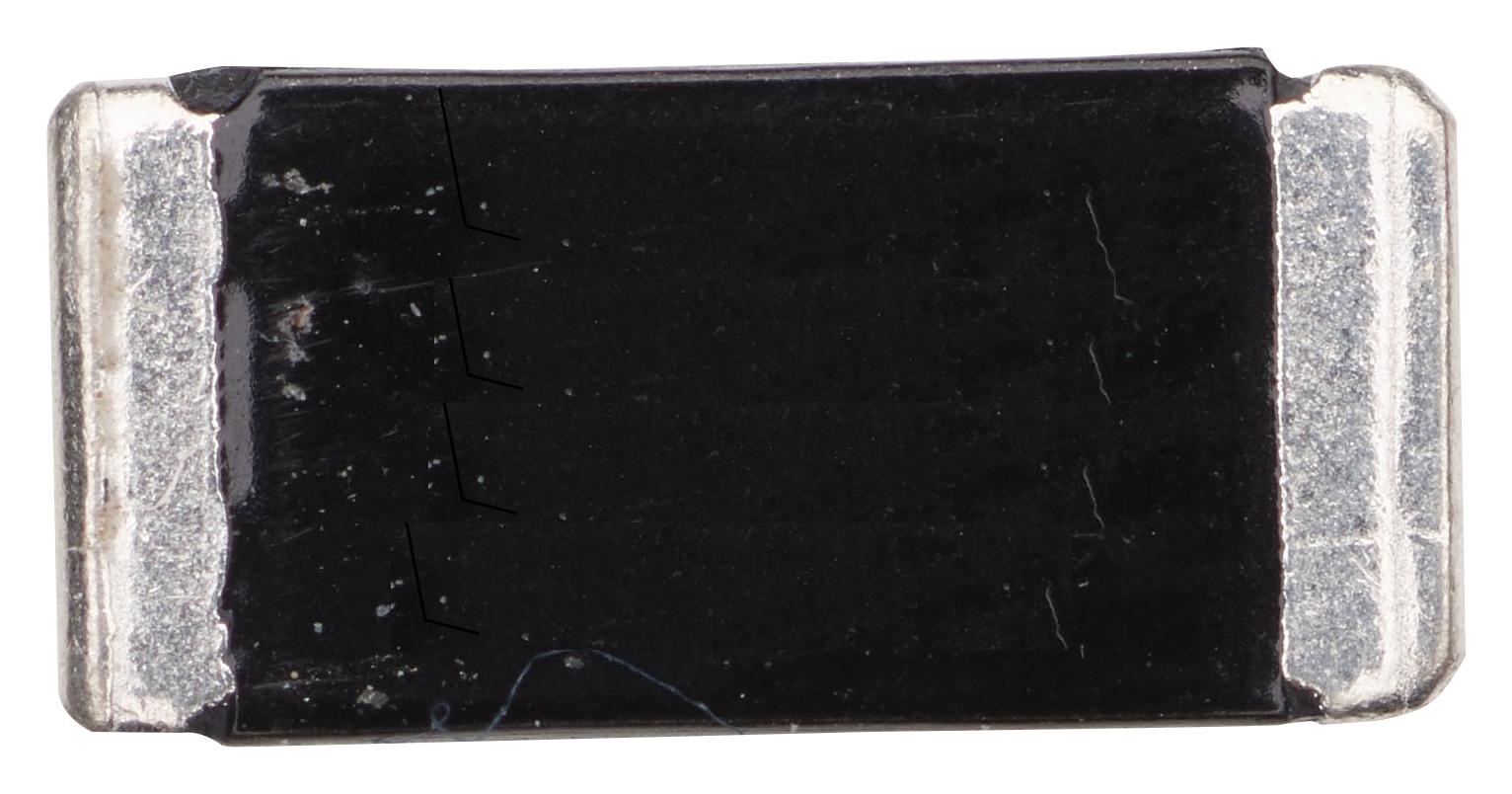

Ohmite PCS2512FR5000ET Low Resistance Chip Resistors
These low resistance chip resistors are designed for precision current sensing and voltage division in various electronic applications. They offer resistance values as low as 0.5mΩ, high power ratings up to 4W, and excellent long-term stability. Constructed with high-quality MnCu, FeCrAl, and other materials, they feature low TCR of +50ppm and are compliant with RoHS standards. Suitable for high-temperature environments up to +170°C, these resistors undergo rigorous testing for overload, soldering heat, and thermal cycling, ensuring reliable performance in demanding industrial systems.
Ohmite PCS2512FR5000ET Low Resistance Chip Resistors Specifications:
- Resistance Range: 0.5mΩ to 500mΩ
- Power Ratings: 1W, 2W, 4W depending on series
- Resistance Tolerance: ±1%, ±0.5%
- Maximum Operating Temperature: +170°C
- Thermal Coefficient of Resistance: +50ppm/°C
- Construction Materials: MnCu, FeCrAl
- Soldering Methods: Reflow and wave soldering at peak 250°C
- Soldering Temperature: 260°C for 10 seconds
- Storage Temperature: 25°C with 60% humidity
- RoHS compliant and halogen free
- Environmental Tests: overload, temperature cycling, humidity, and dielectric withstand
Buy the Ohmite PCS2512FR5000ET – Reliable Low Resistance Chip Resistors for Industrial Applications
Order Ohmite PCS2512FR5000ET online today to ensure you receive high-quality, low resistance chip resistors engineered for precision and durability. Perfect for current sensing and voltage division in industrial electronics, these resistors feature resistance values as low as 0.5mΩ, power ratings up to 4W, and are RoHS compliant. They undergo rigorous testing for overload, soldering heat, and thermal cycling, making them ideal for reliable performance in high-temperature environments up to +170°C. Purchase now for fast delivery and technical support.
Buy Ohmite PCS2512FR5000ET now and experience unmatched reliability and high-precision current sensing in demanding industrial environments.
