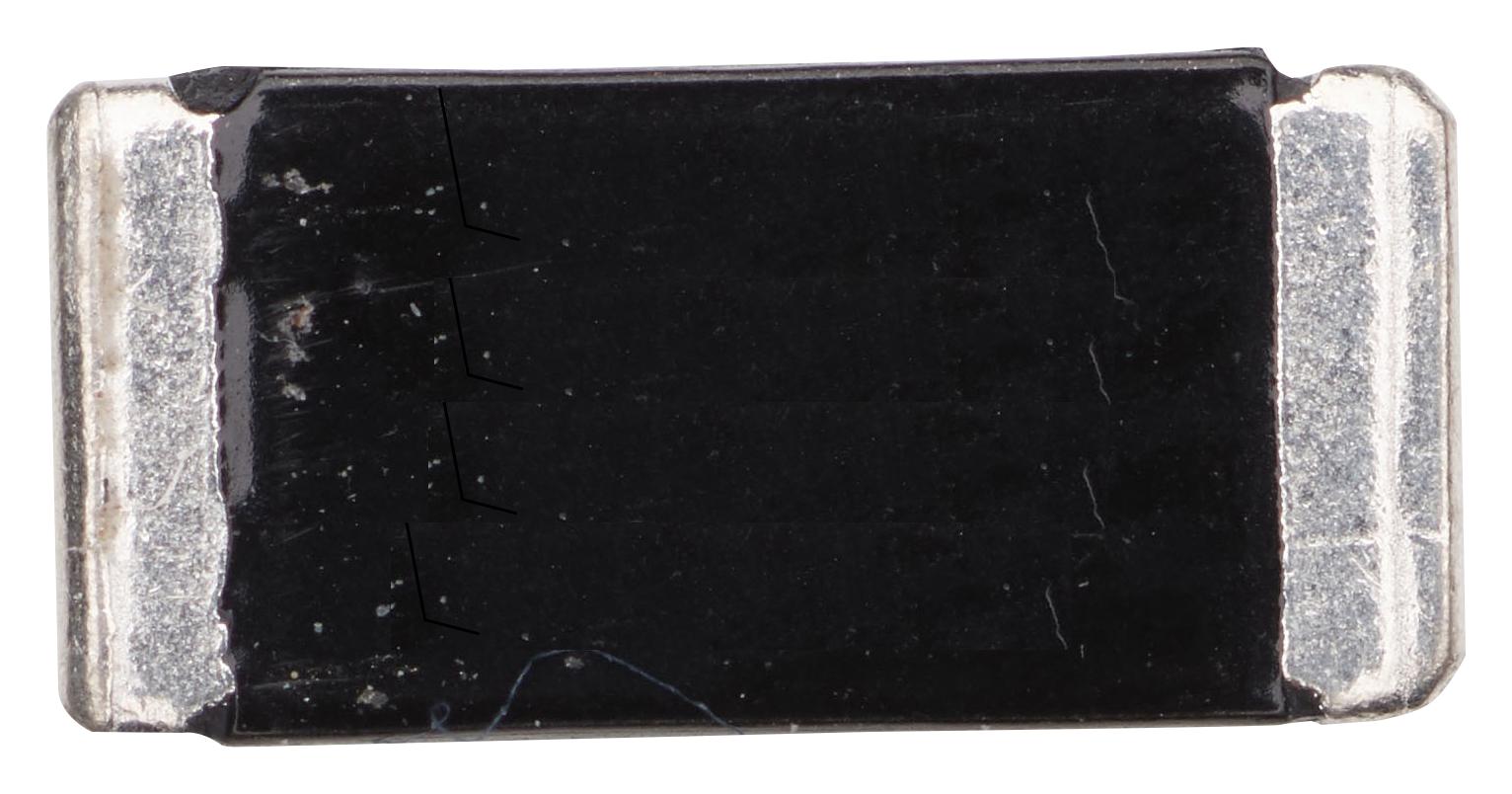

Ohmite PCS2728DR0250ET Precision Chip Resistor
High-precision low resistance chip resistors suitable for current sensing and voltage division in industrial electronics. Features include resistance to 0.5mΩ, low TCR of +50ppm, excellent long-term stability, RoHS compliance, halogen-free, and lead-free design. These resistors operate over a temperature range of -55°C to +170°C and are qualified for demanding applications, including those requiring AEC-Q200 certification. Available in multiple power ratings and resistance ranges, their construction includes MnCu, FeCrAl materials, with overcoat and nickel-tin plating for durability. Suitable for surface-mount technology with a variety of size options and electrical ratings.
Ohmite PCS2728DR0250ET Precision Chip Resistor Specifications:
- Resistance Range: 0.5mΩ to 500mΩ
- Power Rating: 1W, 2W, 4W depending on model
- TCR: +50ppm/°C
- Operating Temperature: -55°C to +170°C
- Material: MnCu, FeCrAl, with nickel-tin plating
- Dimensions vary by model, e.g., PCS1206: approx. 3.2mm x 1.6mm; PCS2512: approx. 6.3mm x 3.2mm; PCS2728: approx. 12.0mm x 4.0mm
- Voltage Rating: up to 100V
- Overload Capability: 4x rated power for short duration
- Storage Conditions: 25°C, 60% humidity
- RoHS compliant, halogen free, lead-free
- Qualified for industrial applications including automotive standards (AEC-Q200)
Buy the Ohmite PCS2728 – Reliable High-Precision Resistors for Industrial Applications
Purchase Ohmite's high-performance precision chip resistor online today. These resistors offer low resistance values up to 500mΩ, low TCR of +50ppm, and excellent stability. They are RoHS compliant, halogen-free, and lead-free, suitable for current sensing and voltage division in industrial electronics. With models rated for 1W, 2W, and 4W, they operate across a temperature range of -55°C to +170°C. Ideal for demanding environments, they ensure long-term reliability and optimal electrical performance, making them perfect for automation and control systems.
Get Ohmite PCS2728 today—built for high precision, stability, and durability in demanding industrial electronics.
