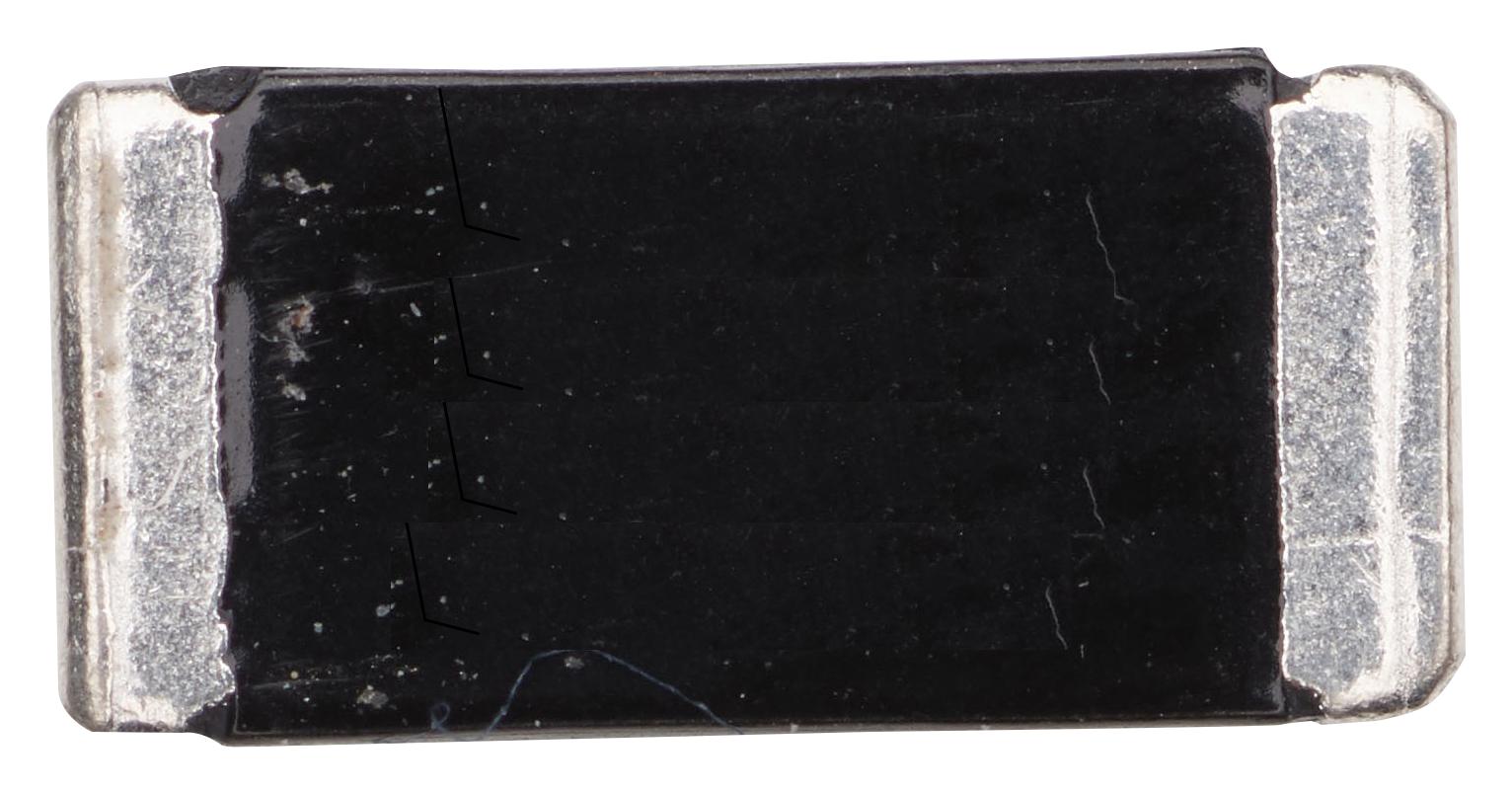

Ohmite PCS2728DR0500ET Low Resistance Chip Resistor
The PCS2728 series low resistance chip resistors offer precise resistance values with low TCR of +50ppm, high stability, and RoHS compliance. Designed for current sensing and voltage division, these resistors operate within a voltage range of 4 to 450mΩ, with maximum power ratings of 4W. They feature durable construction, lead-free materials, and excellent overload and temperature cycling performance in the -55°C to +170°C range, making them suitable for high-precision electronic applications requiring reliability and long-term stability.
Ohmite PCS2728DR0500ET Low Resistance Chip Resistor Specifications:
- Power Rating: 4W
- Resistance Range: 4mΩ to 450mΩ
- Resistance Tolerance: ±0.5%
- Maximum Operating Voltage: 4 to 450mΩ
- Operating Temperature Range: -55°C to +170°C
- TCR: +50ppm/°C
- Overload Power: 3x to 5x rated power depending on series
- Soldering Temperature: Peak 280°C for 10 sec
- Material: FeCrAl, RoHS compliant, halogen free
- Durability: High long-term stability, withstands temperature cycling, humidity, and overload conditions
Buy the Ohmite Series PCS Series Low Resistance Chip Resistors: PCS2728DR0500ET
Experience superior performance with Ohmite's PCS2728DR0500ET low resistance chip resistor. Designed for precision current sensing and voltage division, it features a power rating of 4W, low TCR of +50ppm/°C, and a resistance range of 4mΩ to 450mΩ. Built with RoHS-compliant, halogen-free materials, it guarantees durability, stability, and reliability under extreme conditions such as high overloads and temperature cycling from -55°C to +170°C. Perfect for high-precision electronic circuits needing long-term stability and dependable operation.
Get Ohmite PCS2728DR0500ET today—built for high stability, precision current sensing, and reliable voltage division in demanding electronic environments.
Frequently Asked Questions
Where can I buy Ohmite PCS2728DR0500ET?
You can click on the BUY or RFQ button to purchase PCS2728DR0500ET from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PCS2728DR0500ET?
You can download the PCS2728DR0500ET datasheet or visit the Ohmite website for support.
Who is the manufacturer of PCS2728DR0500ET?
Ohmite
