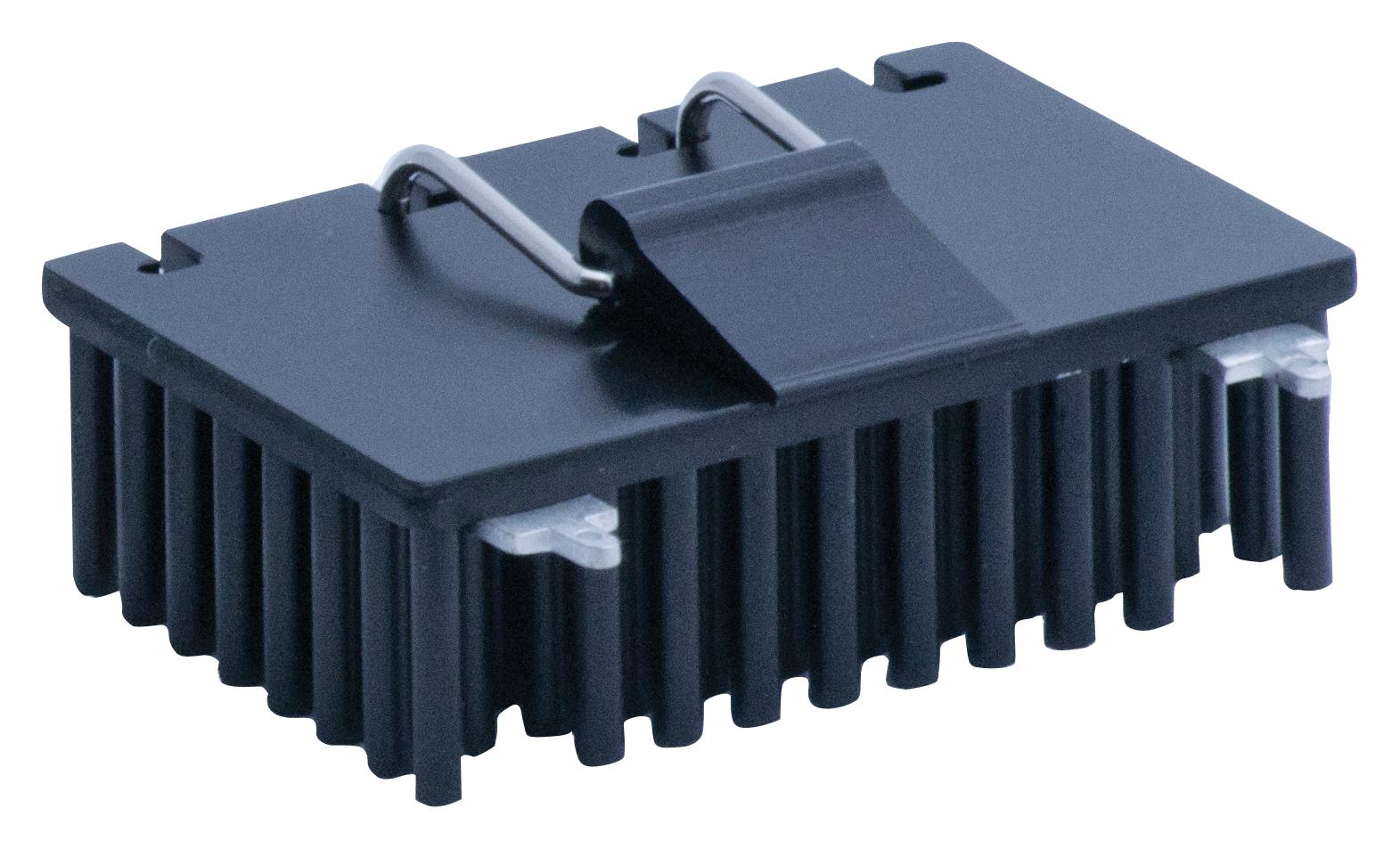

Ohmite PVT2138E Heatsink
The P series forged pin-fin heatsinks are designed for high power electronic components such as TO-220, TO-247, and TO-264 packages. These heatsinks feature a compact, all-in-one design with a universal cam clip system for easy mounting and effective forced convection cooling in multiple directions. The forged pin fins increase surface area to minimize thermal impedance, making these heatsinks ideal for small-sized 1U or 2U electronic assemblies, providing excellent thermal management through natural and forced convection methods.
Ohmite PVT2138E Heatsink Specifications:
- Surface Area: 13.4 / 8,675 in² / mm²
- Weight: 0.7 / 20 oz / g
- Length: 1.18 / 30 inches / mm
- Thermal Resistance: 0.746 °C/W for single clip types
- Configuration: Single, dual options with 1 or 2 clips
- Material: Aluminum alloy AL1070
- Heatsink Area: Up to 23 in² / 14,823 mm²
- Finish: Anodized or degreased surface options
- Spring Clip Material: Music Wire, ASTM A228, nickel plated
- Solder Feet Material: Brass with tin or nickel plating
- Insulator Compatibility: Sil-Pad 900-S, K6 800-S, K10 by Bergquist
- Effective for forced and natural convection cooling, designed for high power dissipation
Buy the Ohmite P2138E – Reliable Heatsink for Industrial Applications
Need a reliable heatsink for your high power electronic components? The Ohmite P2138E forged pin-fin heatsink offers excellent thermal performance in a compact, all-in-one design. Its universal clip system allows easy installation on TO-220, TO-247, and TO-264 devices. Designed for both natural and forced convection cooling, it reduces thermal impedance and keeps your electronics cool under high power loads. Order online today and ensure optimal heat dissipation for your critical applications with unmatched reliability.
Buy Ohmite P2138E heatsink now and ensure efficient thermal management for high power electronic devices with versatile mounting options.
