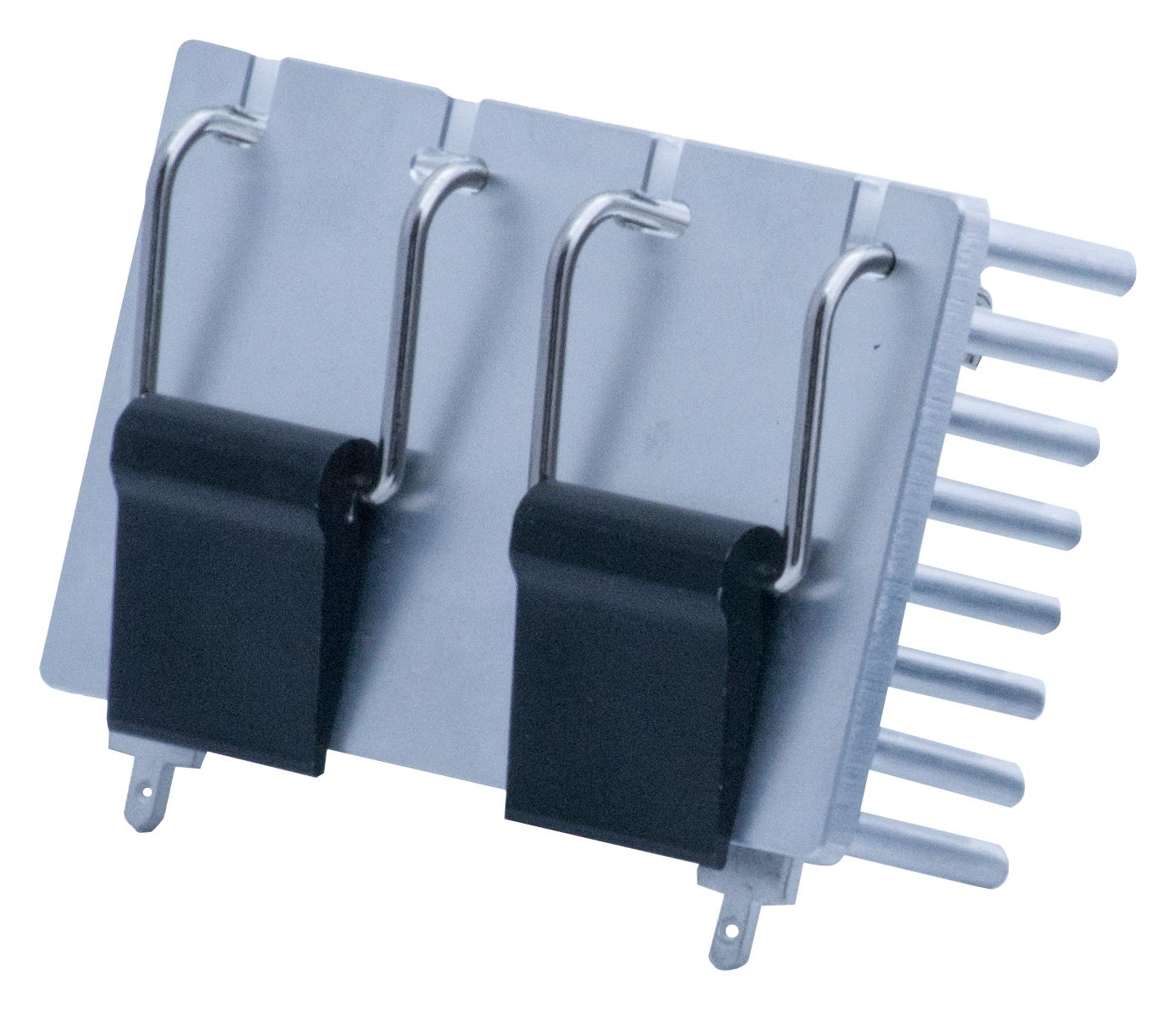

Ohmite PVT2238E forged pin fin heatsink
The forged pin fin heatsink is designed for TO-220, TO-247, and TO-264 devices, offering efficient forced convection cooling with a compact design. Its pin fin structure maximizes surface area for optimal thermal performance, making it ideal for high-power electronic applications requiring small form factors. It features a universal clip system for easy mounting, and the all-in-one solution ensures effective heat dissipation in natural or forced convection environments, suitable for 1U or 2U electronic packaging. The heatsink enhances thermal management for improved device reliability.
Ohmite PVT2238E forged pin fin heatsink Specifications:
- Surface Area: 13.4 in² / 8,675 mm²
- Weight: 0.7 oz / 20 g
- Length: 1.18 in / 30 mm
- Configured for single and dual clips
- Thermal Resistance: 0.746°C/W (single), 3.13°C/W (dual, 14 W dissipation)
- Material: Aluminum AL1070
- Pin Fin Design: Forged, maximizing surface area for improved heat transfer
- Mounting: Universal cam clip system for TO-220, TO-247, TO-264 packages
- Surface Finish: Anodized or degreased options available
- Compatibility: Designed for forced and natural convection cooling in high-power, small-size electronic packaging
- Application: Suitable for high power electronic devices in 1U or 2U rack assemblies
- Spring Clip Material: Music Wire with nickel plating
- Solder Feet: Brass with pure tin or nickel
- Insulator: Sil-Pad options (900-S, K6 800-S, K10 by Bergquist)
Buy the Ohmite P Series Heatsinks – Reliable Forged Pin Fin for Industrial Applications
Enhance your electronic device performance with our forged pin fin heatsinks, designed for TO-220, TO-247, and TO-264 packages. These innovative heatsinks feature a forged pin design that maximizes surface area for excellent forced convection cooling. Easy to mount using a universal clip system, they are ideal for compact high-power applications in 1U or 2U rack systems. Made from high-quality aluminum, they ensure effective heat dissipation, improving device reliability and lifespan. Perfect for industrial, automation, and electronic manufacturing needs.
Buy Ohmite P series heatsinks now and experience unmatched reliability and efficient thermal management for high-power electronic devices.
Frequently Asked Questions
Where can I buy Ohmite PVT2238E?
You can click on the BUY or RFQ button to purchase PVT2238E from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part PVT2238E?
You can download the PVT2238E datasheet or visit the Ohmite website for support.
Who is the manufacturer of PVT2238E?
Ohmite
