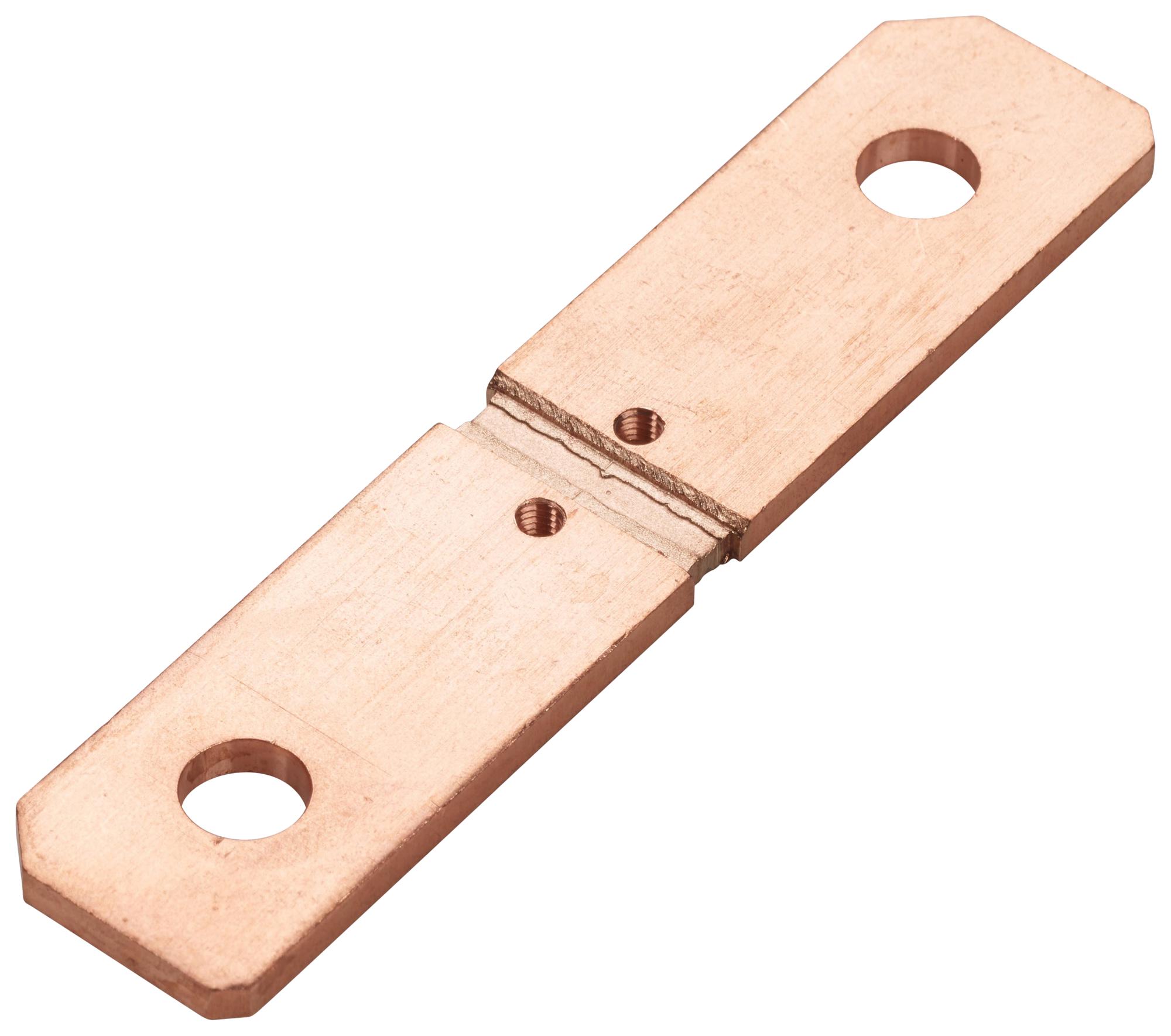

Ohmite SH6918F500BHEP High-Current Precision Shunt
The Ohmite SHA series precision manganin copper alloy shunt supports high current applications up to 1KA, offering excellent long-term stability and minimal resistance shift. Its special alloy enables pulse current support surpassing rated levels. Features include four-terminal Kelvin connection, extremely low inductance less than 3nH, and thermal potential below 0.5pV/°C, making it suitable for high-frequency and precision measurement. Designed for use in battery management, electronic power, motor control, and frequency conversion systems, the SHA series combines durability, stability, and high performance for demanding industrial applications.
Ohmite SH6918F500BHEP High-Current Precision Shunt Specifications:
- Rated power: 25W, 36W, 50W
- Resistance range: 50μΩ, 100μΩ, 125μΩ, 250μΩ
- Tolerance: +0.5%, +1%, +5%
- Maximum rated current: 500A
- Thermal shock resistance: -55°C to 150°C, 1000 cycles
- Overload capacity: 5 times rated power for 5 seconds
- Storage temperature: -55°C for 24 hours
- Operating temperature: -55°C to +170°C
- Vibration resistance: 10Hz to 2000Hz, 12 hours in X-Y-Z directions
- Weight: 35g to 80g
- Pin type: Tin plated, interference fit
- Inductance: less than 3nH
- Resistance shift under load: minimal, within specified tolerance
- Measurement stability: high long-term stability with less than 10ppm/A resistance change
Buy the Ohmite SH Series U2000 – Reliable High-Current Shunt for Industrial Applications
Purchase the Ohmite SH Series high-current precision shunt today for superior stability and accuracy in industrial power management, electronic control, and measurement systems. Crafted for demanding applications supporting up to 1KA, this shunt features low inductance, minimal thermal EMF, and excellent long-term stability. Ideal for battery management, motor control, and frequency conversion, it ensures reliable performance under high load and temperature conditions. Order online now to benefit from fast shipping and expert support, ensuring your project stays on track with top-quality components.
Get Ohmite SH Series high-current shunt today—engineered for precision, durability, and reliable performance in demanding power systems.
Frequently Asked Questions
Where can I buy Ohmite SH6918F500BHEP?
You can click on the BUY or RFQ button to purchase SH6918F500BHEP from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SH6918F500BHEP?
You can download the SH6918F500BHEP datasheet or visit the Ohmite website for support.
Who is the manufacturer of SH6918F500BHEP?
Ohmite
