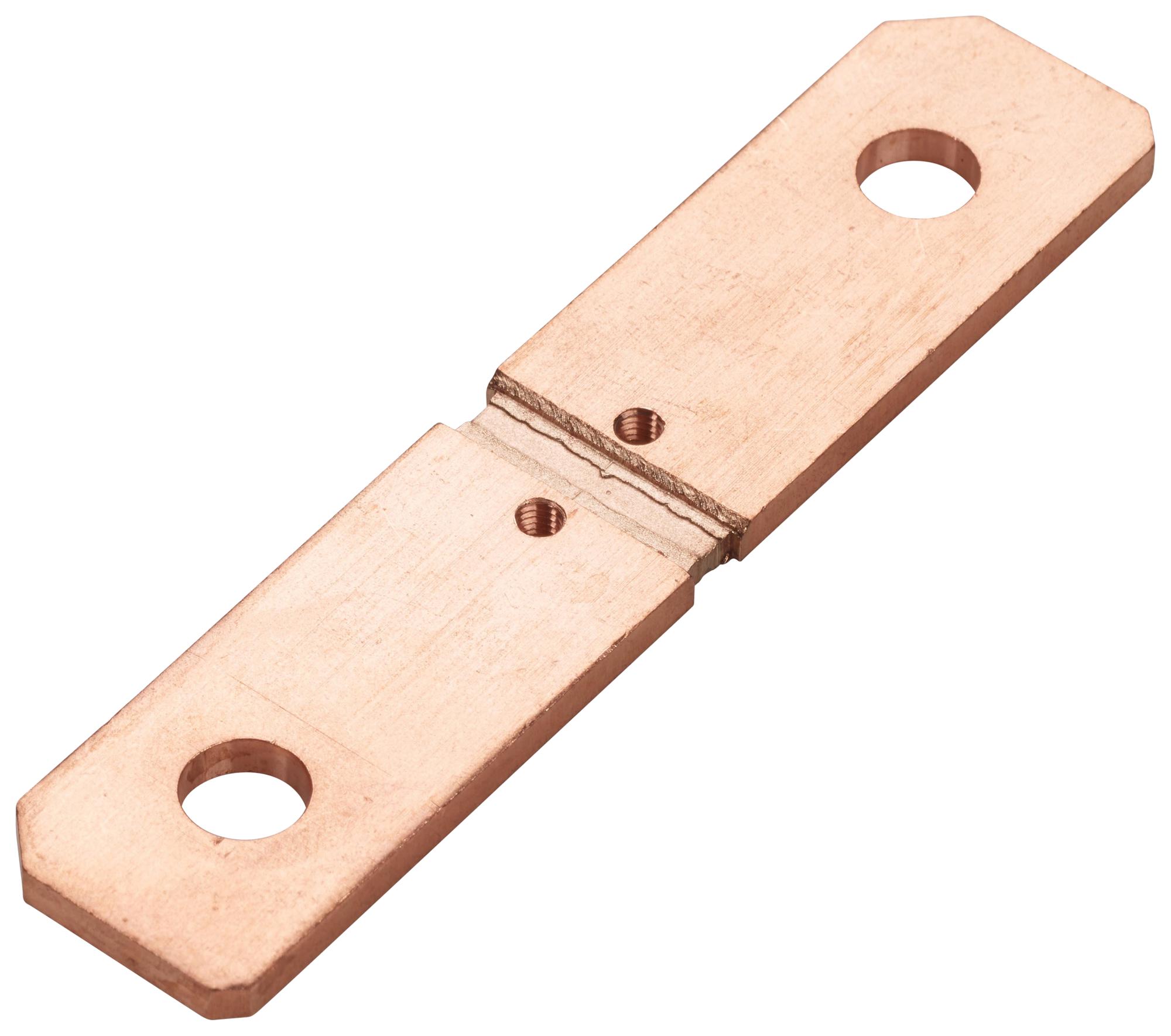

Ohmite SH8518F800AHEP Precision Shunt
The Ohmite SHA series precision manganin copper alloy shunts support up to 1KA rated current, offering excellent long-term stability and high-frequency suitability. Featuring a four-terminal Kelvin connection, low inductance under 3nH, and thermal potential less than 0.5pV/°C, these shunts are ideal for high current applications such as battery management, power electronics, and motor control. Available in power ratings of 25W, 36W, and 50W, they are designed for reliability, minimal resistance shift under load, and withstand pulse currents well beyond rated levels, ensuring precise measurement in demanding environments.
Ohmite SH8518F800AHEP Precision Shunt Specifications:
- Rated Power: 25W, 36W, 50W
- Resistance Tolerance: +0.5%, +1%, +5%
- Resistance Values: 50uΩ, 100uΩ, 125uΩ, 250Ω
- Maximum Rated Current: 500A to 1000A
- Thermal Potential: less than 0.5pV/°C
- Inductance: less than 3nH
- Temperature Range: -55°C to 150°C
- Pulse Current Support: several times rated current
- Mechanical Shock: 100G, 6mS, five times
- Vibration: 10Hz to 2000Hz, 12 hours
- Weight: 35g, 40g, 80g
- Pin Type: Tin plated, interference fit
Buy the Ohmite Series SHA Precision Shunt: SH8518F800AHEP
Order the Ohmite SHA series precision shunt online today to ensure accurate current measurements in power management, motor control, and high-frequency systems. These shunts support high pulse currents and maintain excellent stability over time, making them ideal for demanding electronic environments. With low inductance and thermal EMF, they guarantee precise voltage readings even under extreme conditions. Purchase now to enhance your system’s reliability, achieve optimal performance, and benefit from quick delivery and expert support tailored for high-current electrical applications.
Get Ohmite SHA series shunt with high stability and low inductance today—built for precision and long-lasting durability in high current applications.
Frequently Asked Questions
Where can I buy Ohmite SH8518F800AHEP?
You can click on the BUY or RFQ button to purchase SH8518F800AHEP from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SH8518F800AHEP?
You can download the SH8518F800AHEP datasheet or visit the Ohmite website for support.
Who is the manufacturer of SH8518F800AHEP?
Ohmite
