Ohmite SH8518F800APEP High-Current Precision Shunt
The Ohmite SHA series is a high-current manganin copper alloy shunt designed for precision measurement and stability. Supporting up to 1KA rated current, it features low temperature coefficient, excellent long-term stability, minimal inductance under 3nH, and suitability for high frequency applications. With four-terminal Kelvin connection and power ratings of 25W, 36W, and 50W, it is ideal for battery management, power electronic systems, frequency converters, UPS, motor control, and electronic load equipment. Its heat treatment ensures reliable performance under pulse currents and temperature variations, making it suitable for demanding industrial environments.
Ohmite SH8518F800APEP High-Current Precision Shunt Specifications:
- Power Ratings: 25W, 36W, 50W
- Supported Current: Up to 1KA
- Resistance Range: 50μΩ to 250μΩ, customizable
- Resistance Tolerance: +0.5%, +1%, +5%
- Temperature Coefficient: 175ppm (-60°C - 175°C), 100ppm (20°C - 60°C)
- Pulse Power: 5 times rated power for 5 seconds
- Operating Temp Range: -55°C to +170°C
- Tolerance over temp variations: ±0.5%
- Dimensions (examples): 85x36mm, 60x18mm
- Inductance: Less than 3nH
- Weight: 35g to 80g depending on size
- Material: Manganin copper alloy
- Connection: Four-terminal Kelvin, tin-plated interference fit pins

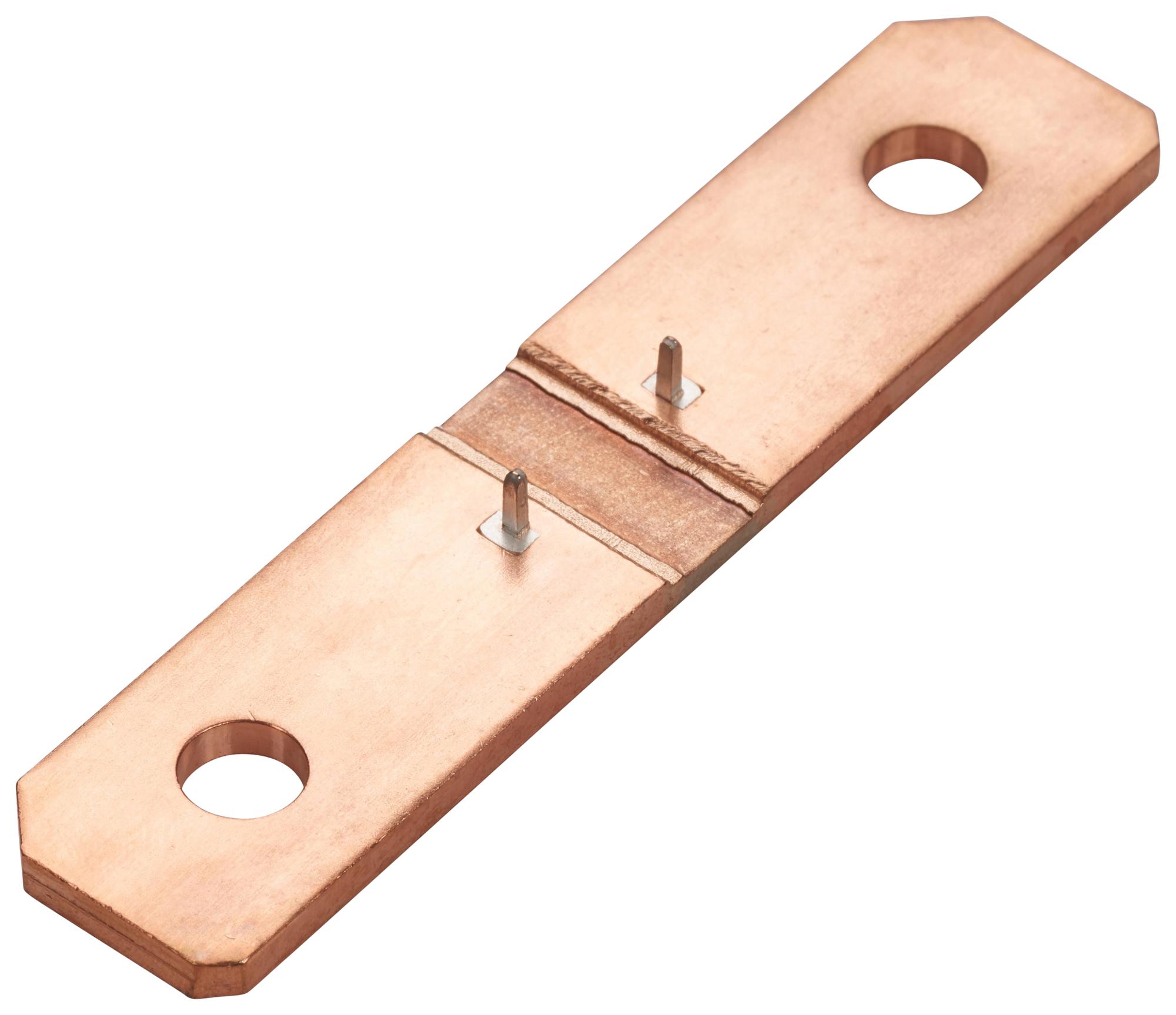

Buy the Buy Ohmite SHA Series High-Current Shunt Part Number SH8518F800APEP Online
Purchase the Ohmite SHA series precision high-current shunt part number SH8518F800APEP online today and enjoy superior stability, low temperature coefficient, and minimal inductance suited for power management, high frequency applications, and industrial electronic systems. Efficient design with four-terminal Kelvin connections ensures accurate measurements under demanding load conditions. Ideal for battery management, frequency converters, UPS systems, motor control, and electronic load equipment, delivering reliable long-term performance in various industrial environments. Order now for fast delivery and expert support.
Buy Ohmite SHA Series high-current shunt part number SH8518F800APEP now and experience unmatched stability, low inductance, and reliable high-frequency performance.
Frequently Asked Questions
Where can I buy Ohmite SH8518F800APEP?
You can click on the BUY or RFQ button to purchase SH8518F800APEP from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SH8518F800APEP?
You can download the SH8518F800APEP datasheet or visit the Ohmite website for support.
Who is the manufacturer of SH8518F800APEP?
Ohmite
