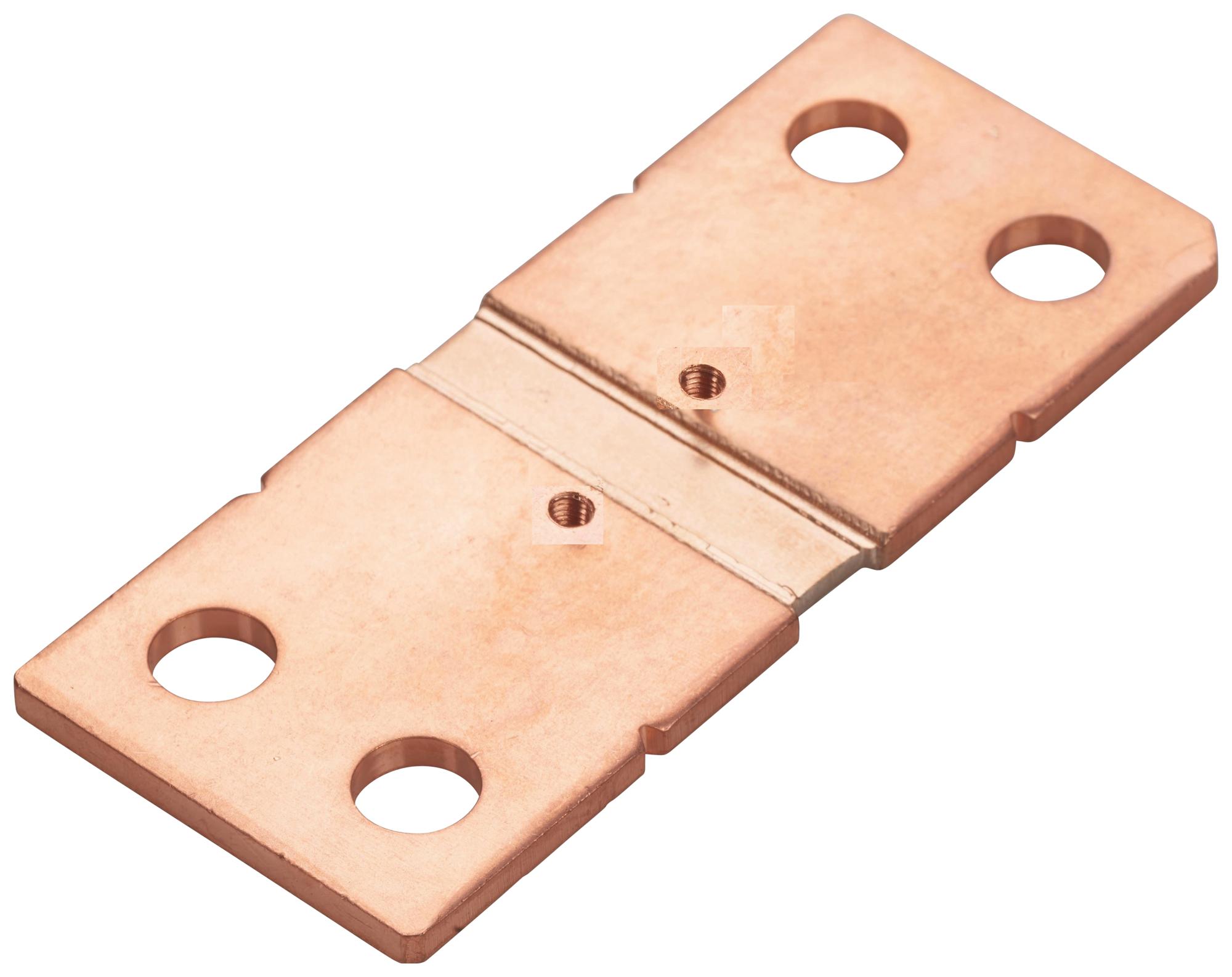

Ohmite SH8536F1K0AHEP High-Current Precision Shunt
The Ohmite SHA series are high-precision manganin copper alloy shunts designed for supporting up to 1KA rated current, offering excellent stability and low inductance. They feature a four-terminal Kelvin configuration, low thermal EMF, and are suitable for high-frequency, current measurement, and power management applications. With power ratings ranging from 25W to 50W, their special heat treatment ensures minimal resistance shift, thermal stability, and long-term reliability under pulse and overload conditions, making them ideal for electronic power, motor control, and UPS systems.
Ohmite SH8536F1K0AHEP High-Current Precision Shunt Specifications:
- Rated Power: 25W, 36W, 50W
- Resistance: 50Ω, 100Ω, 125Ω, 250Ω, 509Ω, others customizable
- Rated Current: 500A, 600A, 700A, 1000A
- Resistance Tolerance: +0.5%, +1%, +5%
- Temperature Range: -55°C to +150°C thermal shock
- Thermal EMF: Low thermal EMF, less than 0.5μV/°C
- Inductance: Less than 3nH
- Material: Manganin copper alloy
- Weight: 35g, 40g, 80g
- Environmental: Vibration, shock, humidity, and thermal cycling resistant
- Connections: Four-terminal Kelvin configuration, tin-plated pins
- Dimensions: Varying sizes, custom options available
- Compliance: RoHS compliant
Buy the Ohmite Series SHA Manganin Copper Alloy Shunt: SH8536F1K0AHEP
Buy the Ohmite SHA series high-current shunt online today for exceptional stability, low inductance, and precision measurement support up to 1KA. Designed with a manganin copper alloy, these shunts feature low thermal EMF, excellent long-term stability, and resistance to pulse and overload conditions. Their four-terminal Kelvin connection ensures accurate voltage measurement, making them suitable for power management systems, motor control, and electronic power applications. Order now for reliable, high-performance current sensing in your critical systems, with fast online delivery and expert support.
Get Ohmite SHA series shunt today—built for high-current precision and long-lasting durability.
Frequently Asked Questions
Where can I buy Ohmite SH8536F1K0AHEP?
You can click on the BUY or RFQ button to purchase SH8536F1K0AHEP from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SH8536F1K0AHEP?
You can download the SH8536F1K0AHEP datasheet or visit the Ohmite website for support.
Who is the manufacturer of SH8536F1K0AHEP?
Ohmite
