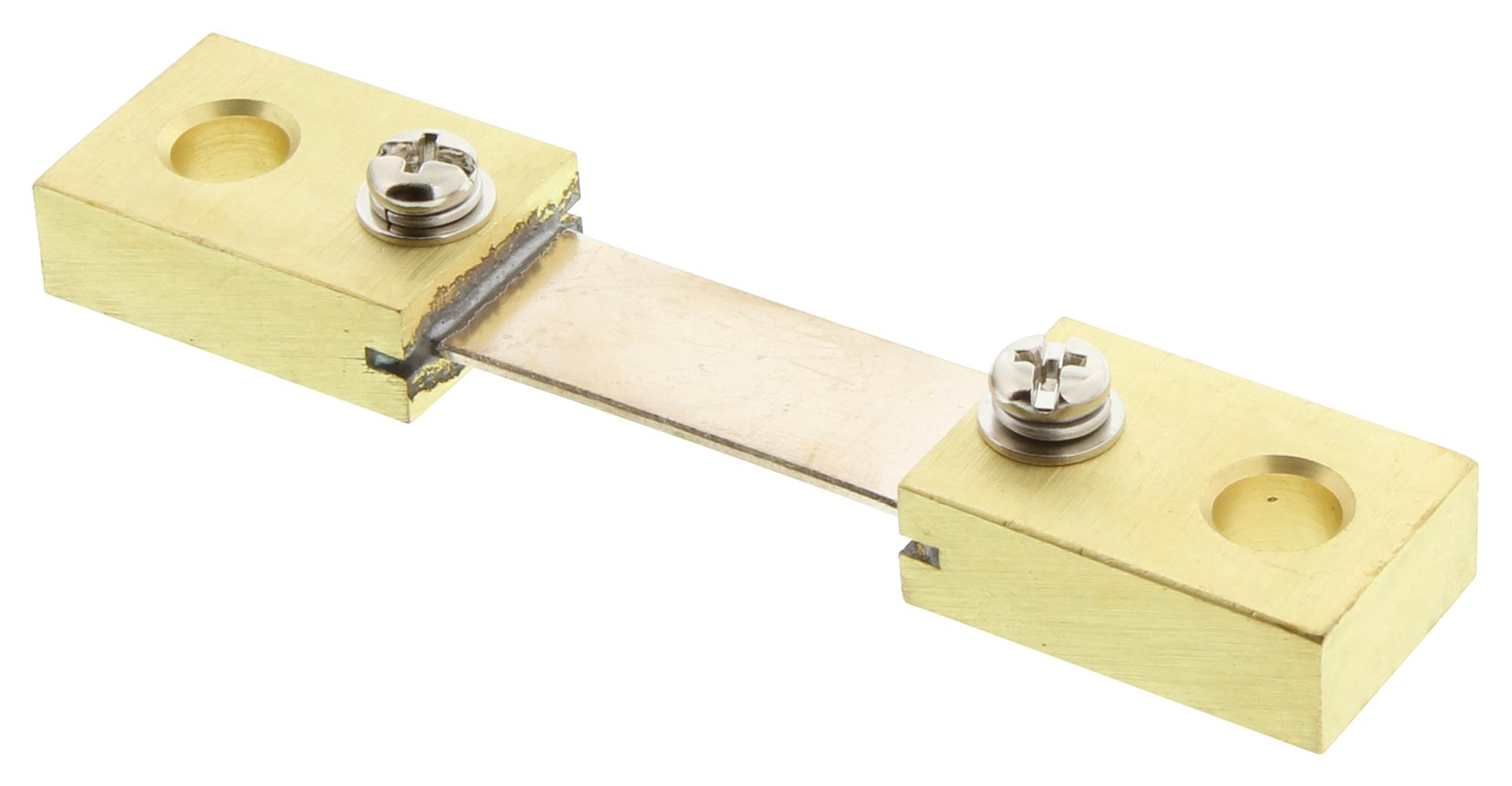

Ohmite SHD1100C075DE High Current Shunt
The SHD1-100C075DE is a high-current shunt resistor designed for precision measurement and industrial automation. It features DIN terminals, copper surface treatment, and a resistive element made of manganin for accuracy. With a current rating of 100A and a 75mV signal, it offers 0.5% accuracy class. The device is passivated with acid wash coating and utilizes a null balance resistance bridge for measurement. Operating from 25°C to 85°C, it is ideal for sensing, instrumentation, and process control systems requiring reliable high-current measurement solutions.
Ohmite SHD1100C075DE High Current Shunt Specifications:
- Current Rating: 100A
- Sensitivity: 75mV
- Accuracy Class: 0.5%
- Construction: Plate resistive element with manganin (6J13)
- Terminal Type: DIN
- Terminal Construction: Brass (H59-1, UNS 37700)
- Surface Coating: Acid wash and passivation
- Operating Temperature Range: 25°C to 85°C
- Measurement Method: Null balance resistance bridge
- Voltage Tolerance: ±0.5%
- Test Standard Compliance: GB/T7676-1 998, IEC61010-1-1, SJ/T11363-2006
Buy the Ohmite SHD1-100C075DE – Reliable High Current Shunt for Industrial Applications
Purchase the Ohmite SHD1-100C075DE high current shunt resistor online today to enhance your measurement accuracy in industrial automation, instrumentation, and control systems. With a 100A current rating, 75mV sensitivity, and 0.5% accuracy, this device provides dependable performance with DIN terminal construction, passivated resistor plates, and acid wash coating for durability. Its precise null balance measurement method, operating from 25°C to 85°C, ensures reliable sensing in demanding environments. Order now and improve your project’s measurement accuracy effortlessly.
Order your Ohmite Series SHD1-100C075DE high current shunt resistor today and secure accurate, reliable measurement for your industrial sensing and automation projects.
Frequently Asked Questions
Where can I buy Ohmite SHD1100C075DE?
You can click on the BUY or RFQ button to purchase SHD1100C075DE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SHD1100C075DE?
You can download the SHD1100C075DE datasheet or visit the Ohmite website for support.
Who is the manufacturer of SHD1100C075DE?
Ohmite
