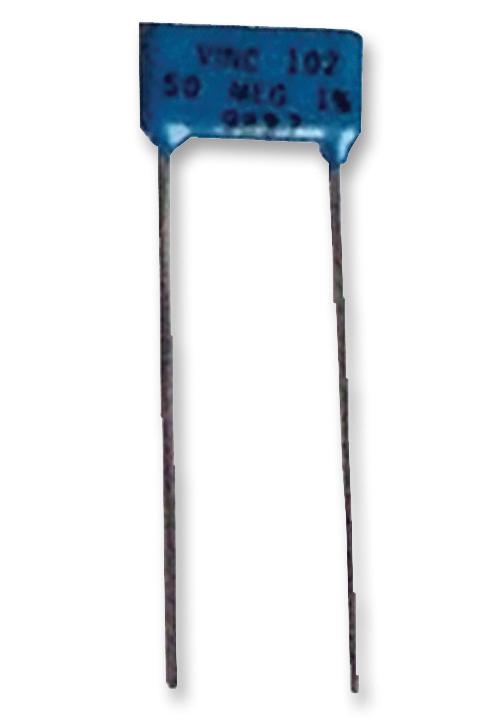

Ohmite SM102031005FE High-Voltage Resistor
The Slim-Mox resistor series offers high stability and performance for precision circuit applications, including HV power supplies, medical instruments, and ion chambers. Made with thick film on alumina, these resistors feature a wide resistance range from 1002 Ohms to 5,000 Megaohms, with power ratings between 0.25W and 9.0W and voltage ratings up to 25KV. Designed for high temperature operation up to 180°C, they have low temperature coefficients, tight tolerance options, and RoHS compliance, ensuring reliable performance in demanding environments.
Ohmite SM102031005FE High-Voltage Resistor Specifications:
- Material: Resistor Element: Thick film on Alumina
- Coating: Silicone
- Resistance Range: 1002 to 5,000 Megaohms
- Power Rating: 0.25W to 9.0W
- Voltage Rating: 1.5KV to 25KV
- Tolerance: 0.5% to 20%; not all tolerances available in all values
- Operating Temperature: -55°C to +180°C
- Temperature Coefficient: TCR tracking to 10ppm, VCR tracking to {ppm
- Dimensions: Various; detailed in datasheet with typical sizes from 0.20" to 1.90" in length and diameters from 0.20" to 0.90"
- Features: Noninductive, RoHS compliant, high dielectric, low noise, tailored configurations available
- Applications: HV power supplies, medical instrumentation, current pulse limiters, ionization chambers.
Buy the Buy Ohmite Slim-Mox Part Number SM102031005FE Online
Purchase the Ohmite Slim-Mox high-voltage resistor online now and benefit from its exceptional stability, wide resistance range, and high temperature tolerance. Designed for demanding environments such as medical instrumentation, power supplies, and ion chambers, this resistor features thick film on alumina construction with silicone coating for durability. With voltage ratings up to 25KV and power ratings up to 9W, it offers reliable performance. Convenient online ordering ensures quick delivery, enabling you to incorporate this precision resistor into your projects effortlessly.
Order your Ohmite Slim-Mox SM102031005FE resistor today and ensure high stability and performance in your precision circuit applications.
Frequently Asked Questions
Where can I buy Ohmite SM102031005FE?
You can click on the BUY or RFQ button to purchase SM102031005FE from an authorized Ohmite distributor.
How do I troubleshoot issues or seek technical support for part SM102031005FE?
You can download the SM102031005FE datasheet or visit the Ohmite website for support.
Who is the manufacturer of SM102031005FE?
Ohmite
